MRMC Slidekamera 320W Power Supply Unit for Motion Control Devices

The MRMC Slidekamera 320W Power Supply Unit is a central power and communication hub for motion control setups. The unit delivers up to 320W of reliable power to sliders, remote heads, lens drives, and more. Featuring a 6-pin LEMO power and control output, a mini 4-pin LEMO control input, and a universal IEC C14 power input, the PSU is capable of supporting a full range of devices through a streamlined daisy chain system.

Its wide input voltage range of 100 to 240V ensures consistent operation across international locations, while built-in Ethernet and Wi-Fi connectivity enable flexible network integration. With its Slidelink 3.0 network module, the unit can serve as a direct bridge between your Slidekamera motion control system and industry-standard Dragonframe software, offering unmatched versatility for both studio and on-location workflows.

• 320W power output for multiple devices
• Supports a wide range of voltage (100-240V)
• One-cable power and control connection

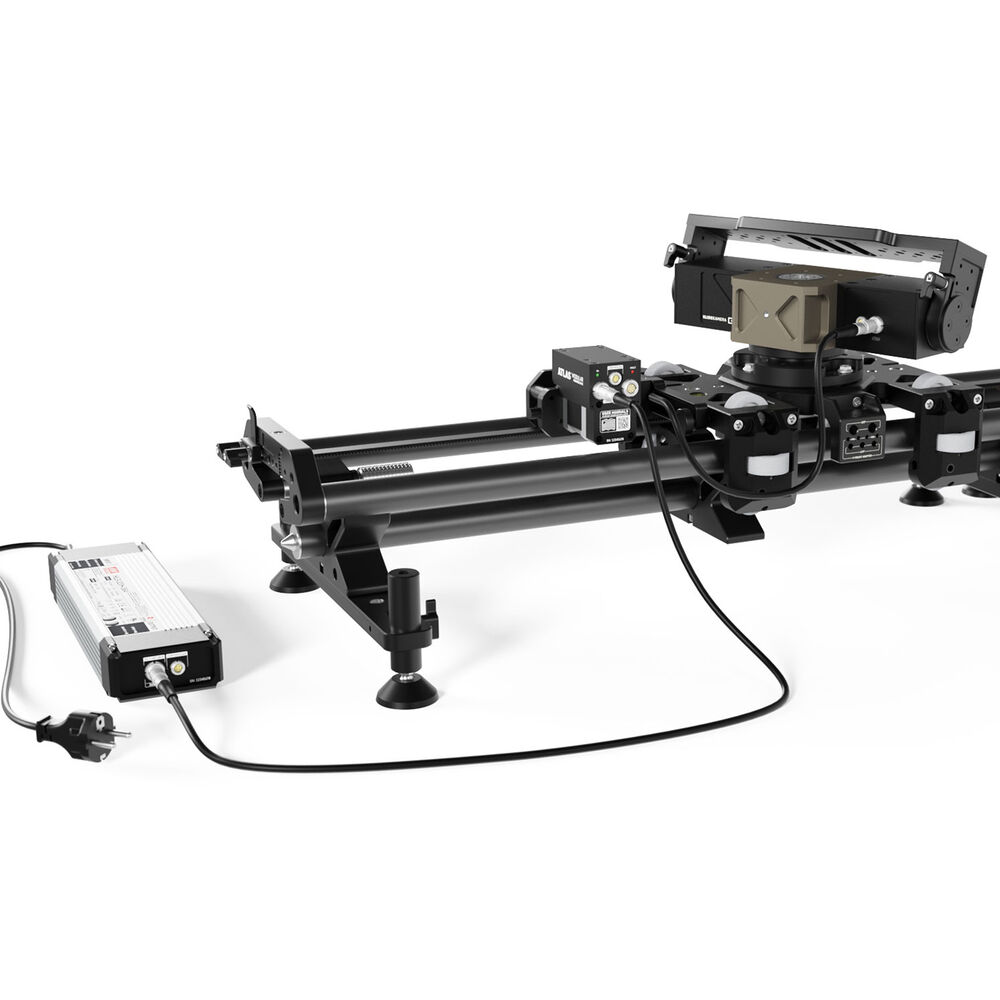

• Daisy chain system for device linking

• Built-in Slidelink 3.0 network module
• Ethernet and Wi-Fi connectivity
• Works with Dragonframe software or Slideye 2.0 app

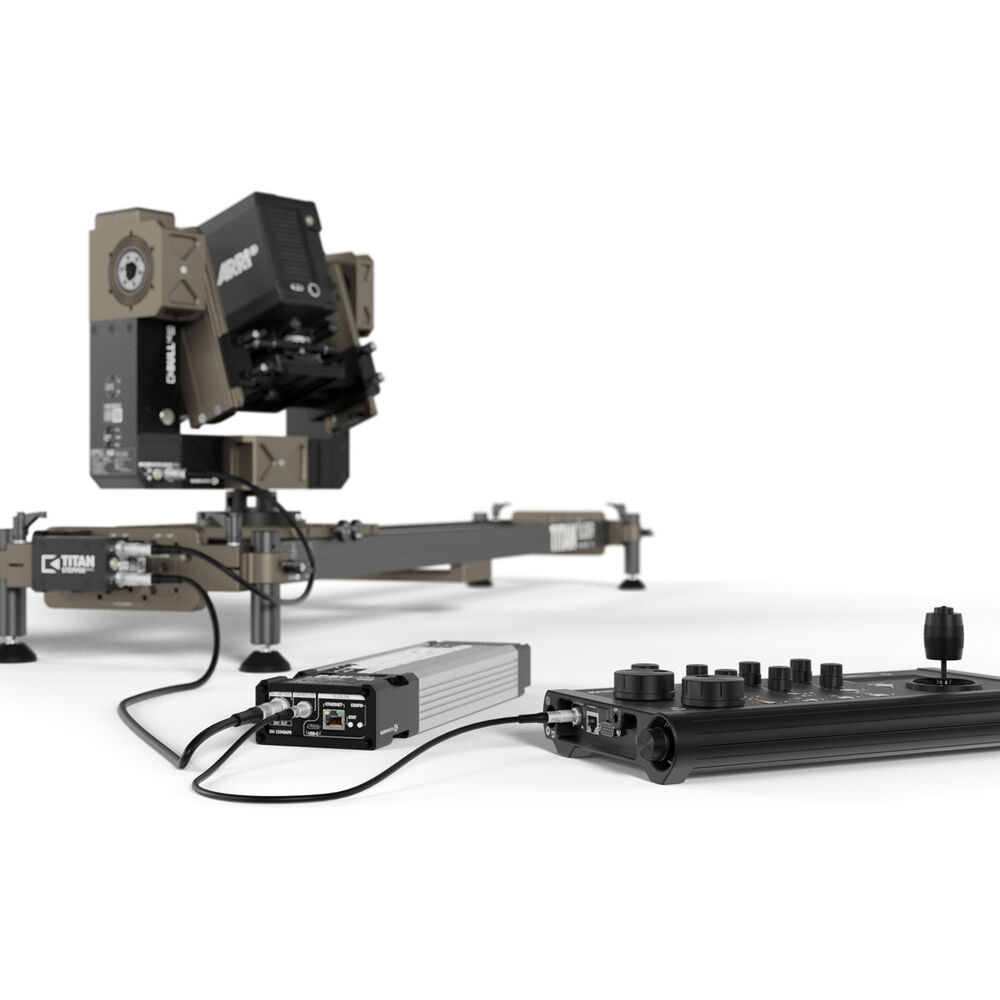

• Allows direct connection to Kairos controller

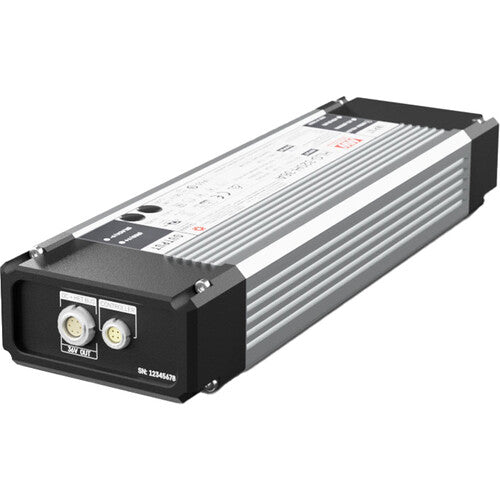

• 6-pin LEMO power and control output
• Mini 4-pin LEMO control input with 12V power output

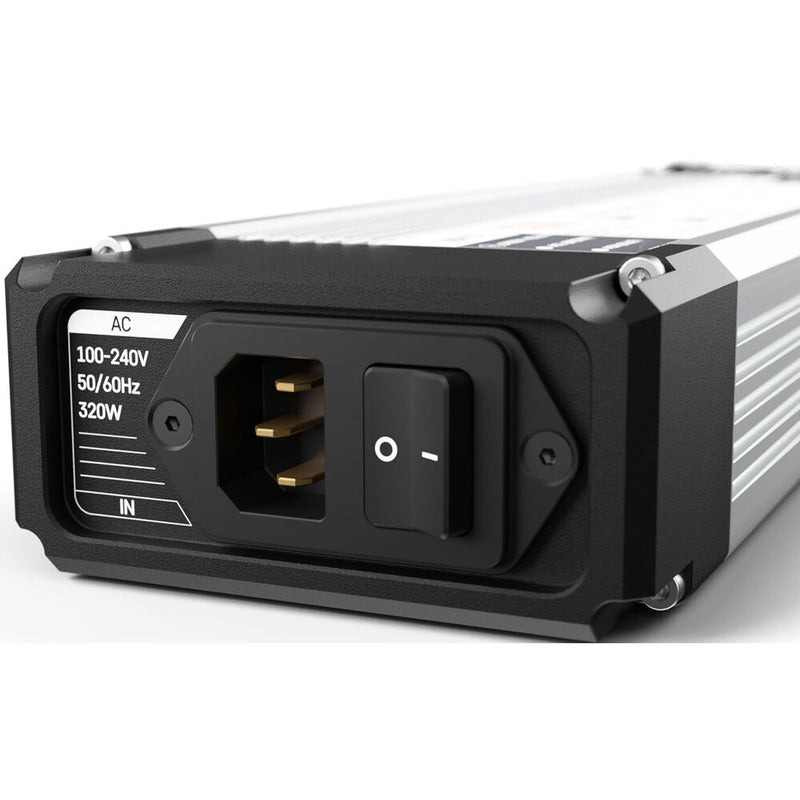

• IEC C14 universal power input

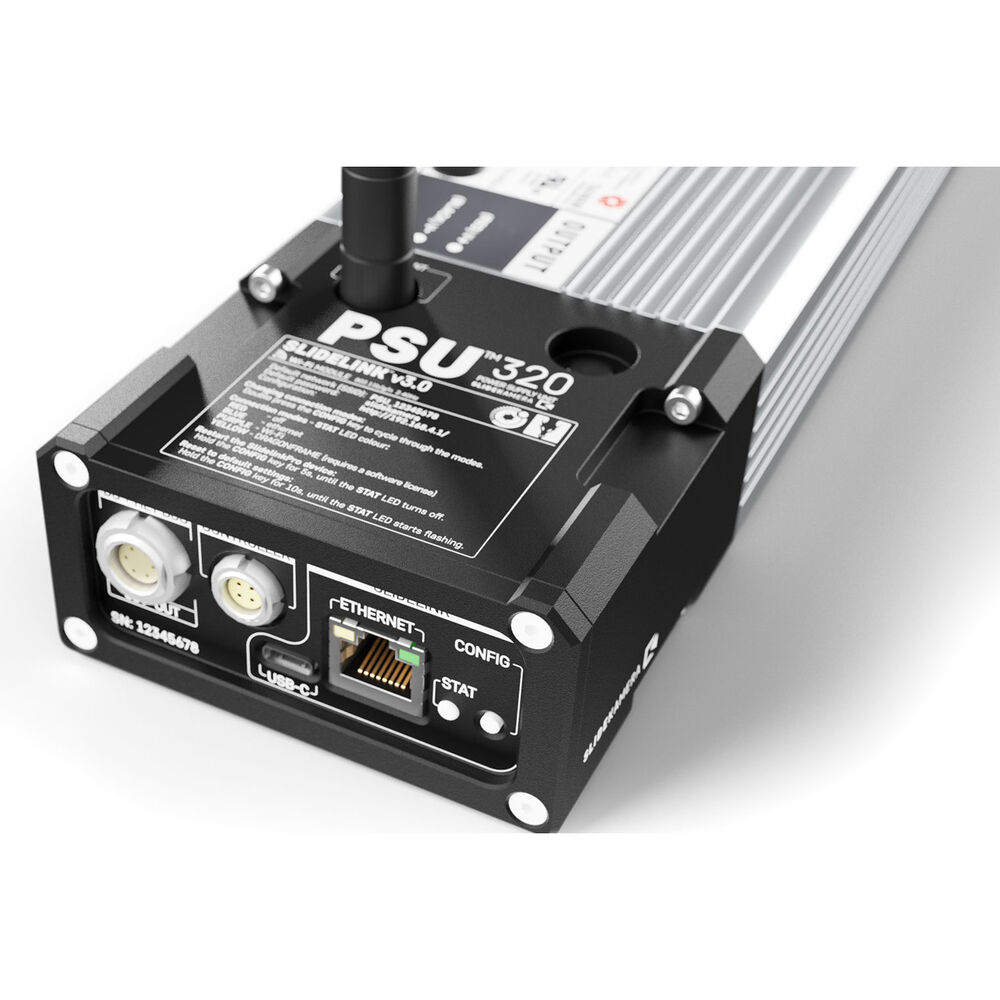

• RJ45 Ethernet port

MRMC HPB-1E Specs

Quantity

1

Power Source	AC Input (Built-In)
Power I/O	1x IEC C14 Female Input 1x LEMO 6-Pin Female Output 1x LEMO 4-Pin Female Output
AC Input Power	100 to 240 VAC, 50 / 60 Hz at 3.5 A
Power Consumption	320 W (Maximum)
Maximum Power Output	320 W (36 VDC / 8.9 A)
Control Ports	1x Mini LEMO 4-pin Female Input 1x USB-C Female Input/Output 1x RJ45 Ethernet Female Input/Output

Color	Silver
Material of Construction	Metal
Dimensions	13.6 x 3.5 x 1.7" / 34.6 x 9 x 4.4 cm

Package Weight	6.09 lb
Box Dimensions (LxWxH)	15.8 x 5 x 4.9"
