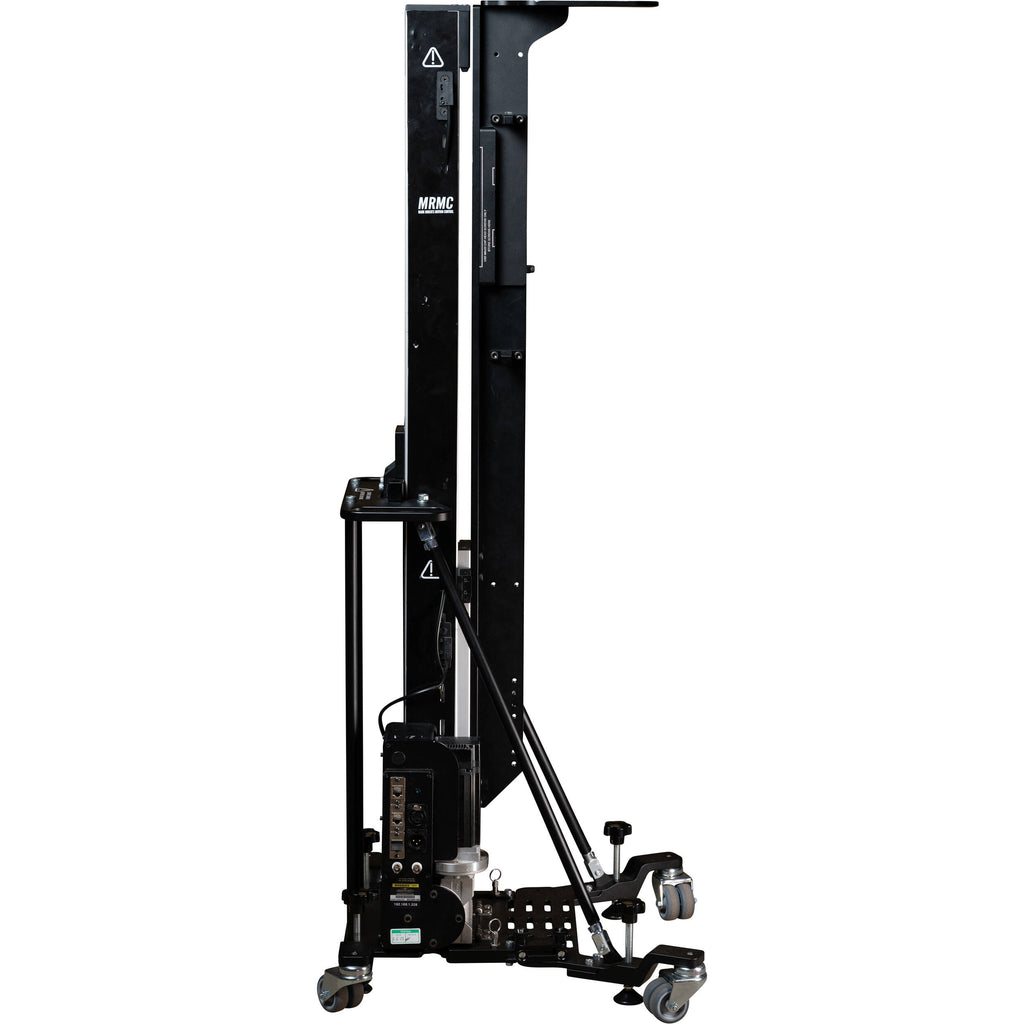

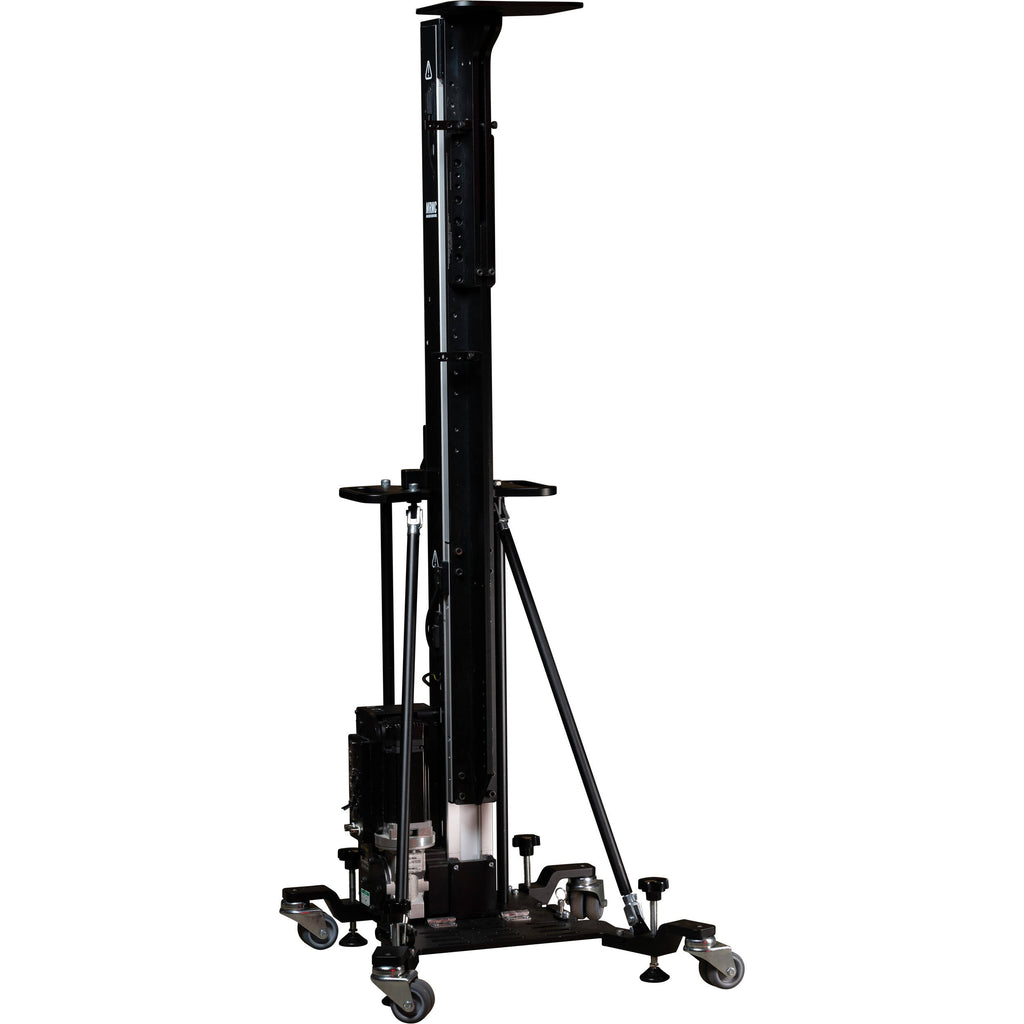

MRMC LLS Light Lift System for PTZ Cameras

The MRMC LLS Light Lift System is a versatile, motorized lift column designed for PTZ cameras and MRMC's AFC robotic head, providing smooth, quiet vertical motion ideal for professional broadcast and studio environments. With a 25.8" motorized lift range and a variable lift speed of 0.01 to 2.4 ips, it offers precise height adjustments for payloads up to 22 lb, capturing talent or crowds with ease.

Through its RJ45 Ethernet port, the LLS can be controlled with a PC running MRMC's Multi-Head Controller software, Polymotion Chat software for automated movement, or third-party systems via Mark Roberts Protocol. A genlock sync input allows synchronized FreeD positional data to be output from the LLS, making it compatible with separately available FreeD Sync Box and enabling its use with virtual graphics systems. Its modular design allows for floor, wall, or ceiling mounting, and the included wheeled tripod mount makes it easy to reposition within a studio. Additionally, the LLS features a VESA monitor mount for lightweight teleprompters, expanding its functionality for broadcast setups.

Reliable Motion

• Smooth, quiet vertical motion suitable for on-air broadcast use
• 25.8" motorized lift range with 0.01 to 2.4 ips lift speed
• Maximum payload capacity of 22 lb
• 20.3" minimum height in low mode
• 85" maximum height in extended mode

Versatile Connectivity

• IP control via RJ45 Ethernet port
• Compatible with MRMC Multi-Head Controller and Polymotion Chat software
• Genlock port for FreeD positional data output, enabling virtual graphics integration
• Compatible with Advanced FreeD Sync Box for real-time graphics workflows
• 90 to 240V auto-ranging power supply for global compatibility

Flexible Mounting

• Includes tripod mount with wheels for easy mobility in studio environments
• Floor, wall, and ceiling mountable with additional equipment
• Modular design allows for integration with the MRMC QRS rail system for added horizontal motion
• VESA monitor mount included to support lightweight, display-based prompters under the PTZ camera

MRMC LLS Light Lift System Specs

Compatibility

PTZ Cameras MRMC AFC Robotic Head / Advanced FreeD Sync Box

Video I/O

3x RJ45 Input/Output 2x BNC Input/Output

Power Source	AC Adapter with Power Brick (Included)
DC Input Power	24 VDC at 6 A

Mounting	1x PTZ Camera Mount 1x VESA Monitor Mount
Color	Black
Material of Construction	Metal
Dimensions	85" / 215.9 cm (Maximum Height)
Weight	59 lb / 26.8 kg (with Wheeled Tripod)

Package Weight	88.5 lb
Box Dimensions (LxWxH)	53 x 34 x 21"
