Description

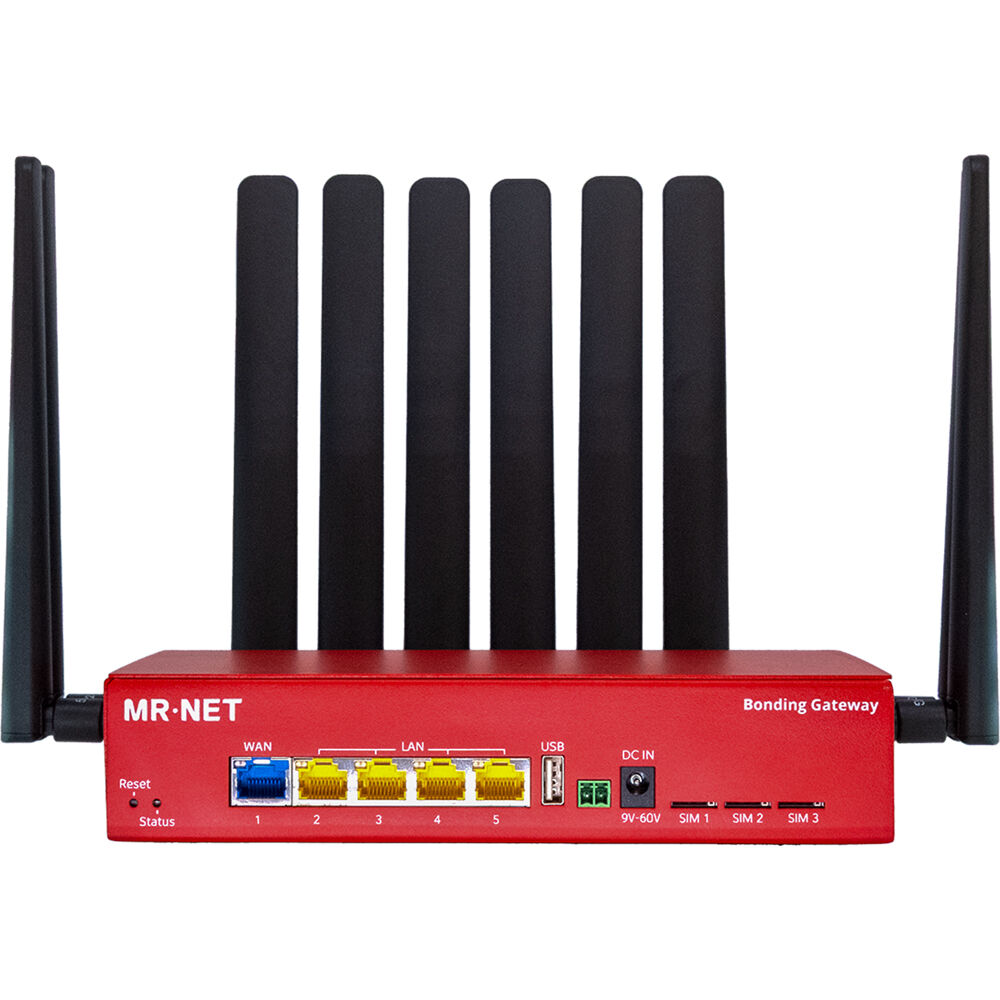

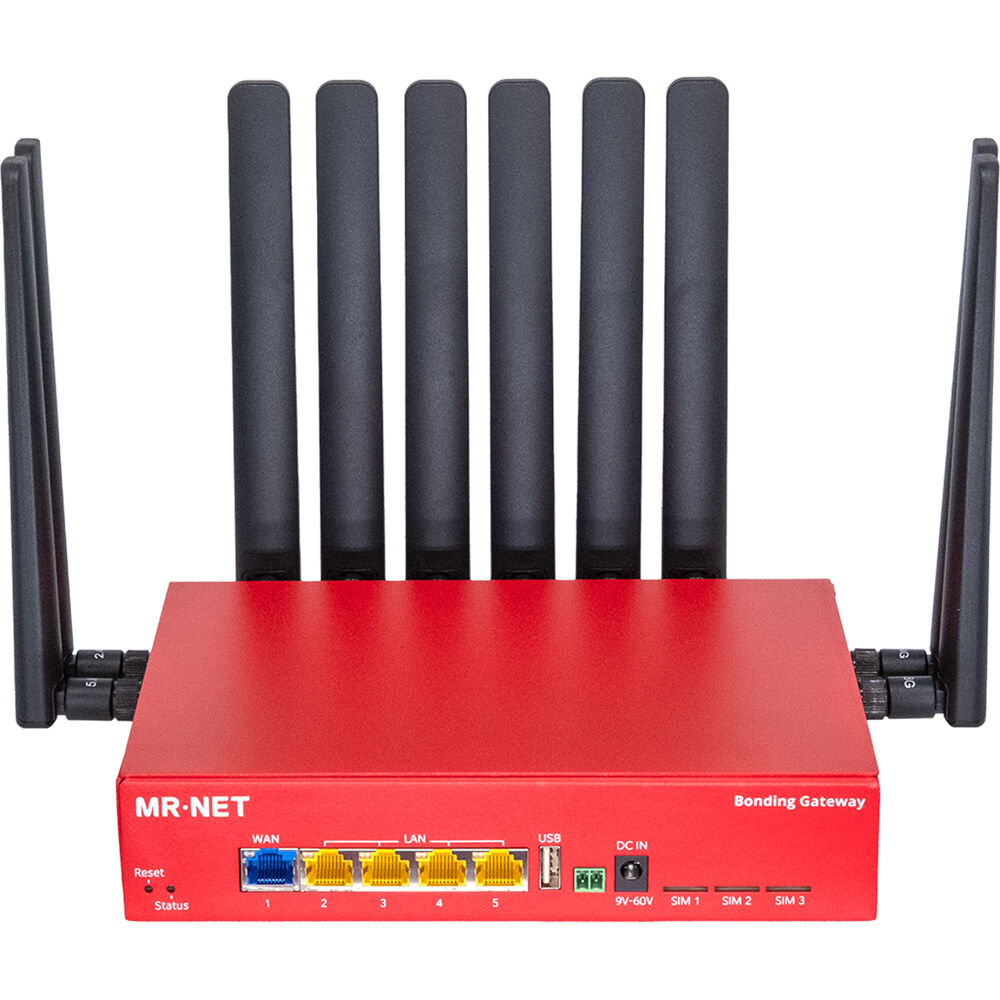

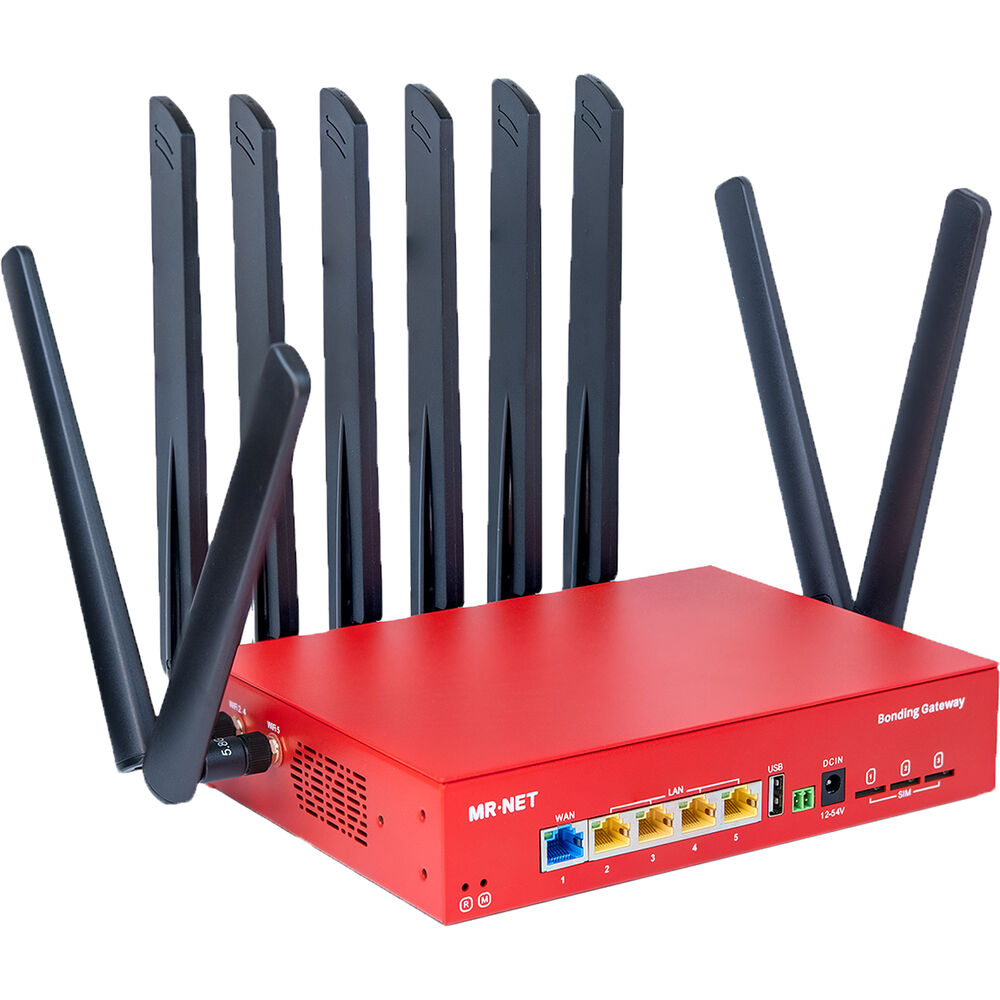

MR-NET Cellular Bonding Gateway Overview
Add a simultaneous, aggregated bonding connection to your mobile enterprise streaming network for solid connectivity and backup with the Cellular Bonding Gateway with 1 Year of Service from MR-NET. This bundle includes a hardware bonding gateway unit and one year of service that includes online tech support, web management portal, cloud connectivity, and hardware service.
The cellular bonding gateway features multiple WAN inputs, including Ethernet, dual-band Wi-Fi, and three LTE SIM slots for cellular bonding. Other features include a built-in firewall, encryption, PoE support, external Wi-Fi hotspot bonding input, and VLAN/VPN support.
Operating Bands
- LTE-FDD: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71
- LTE-TDD: B34/38/39/40/41/42/43/46 (LAA)/48 (CBRS)
- Up to 2 x CA: B2+B2/5/12/13/29;B4+B4/5/12/13/29;B5+B5/7/25/30/66; B7+B7/12/26; B12+B12/25/30/66; B13+B66; B25+B25/26; B30+B29; B66+B29/66; B41+B41
- WCDMA: B1/2/3/4/5/6/8/19
Supported Carriers
Verizon, T-Mobile, AT&T, and more.
Wi-Fi Hotspot
A Wi-Fi hotspot can be used as an additional bonding input; Wi-Fi 6 is supported.
Security Features
Integrated firewall and e2e encryption for each individual gateway.
UPC: 199284469457
Items Included
- MR-NET Cellular Bonding Gateway with 1 Year of Service
- Power Supply
- Wi-Fi Dongle
- 6 x Cellular Antenna
- 4 x Wi-Fi Antenna
- Limited 1-Year Manufacturer Warranty
Additional Resources
MR-NET Cellular Bonding Gateway Specs
Key Specs
| IP Video |
No
|
| Power Consumption |
Power Supply: 12 to 24 VDC (18 W)
|
IP Encoding/Decoding
| IP Video |
No
|
Wireless
| Wireless |
Wi-Fi
*Via Included Adapter |
| Wi-Fi |
Unspecified Version; Dual-Band (2.4 & 5 GHz)
|
| Bluetooth |
No
|
| Cellular Support |
4G LTE via Unspecified SIM Type
|
| SIM Card Slots |
3x Standard SIM
|
Interfaces
| Other I/O |
3x USB-A 3.0 / 3.1/3.2 Gen 1
2x RJ45 Fast Ethernet Input/Output |
Power
| Power I/O |
1x Barrel (12 VDC at 2 A) Input
|
| Power Consumption |
Power Supply: 12 to 24 VDC (18 W)
|
General
| Operating Conditions |
32 to 95?F / 0 to 35?C up to 80% Humidity
|
| Certifications |
FCC, RoHS
|
| Dimensions |
8.3 x 5.9 x 1.9" / 21.1 x 15 x 4.8 cm
|
| Weight |
1.7 lb / 771 g
|
Packaging Info
| Package Weight |
4.575 lb
|
| Box Dimensions (LxWxH) |
13.5 x 11.6 x 3.2"
|
