Movo Photo WMX-1-DUO 2-Person Wireless Lavalier Microphone System (2.4 GHz)

For Journalists, Vloggers, YouTubers

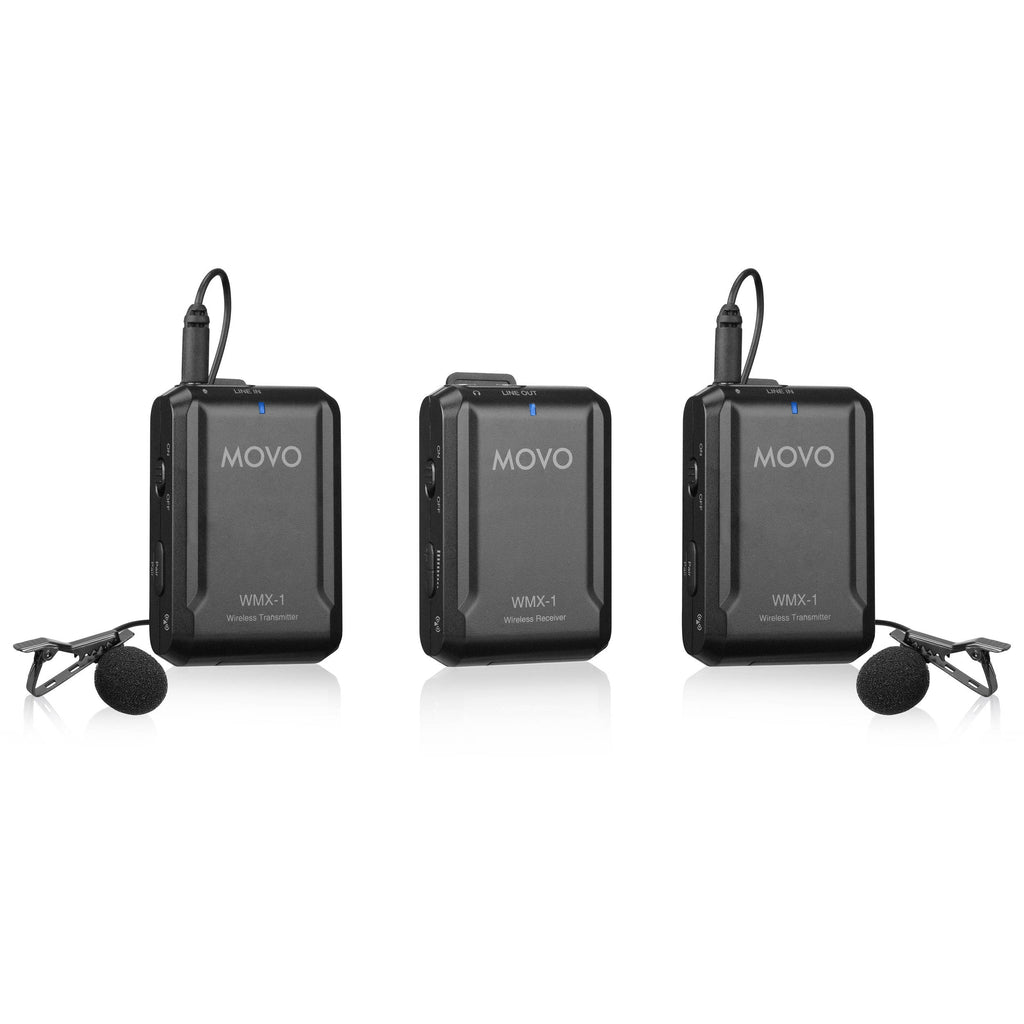

2 x Omnidirectional Lavalier Microphones

2 x Bodypack Transmitters

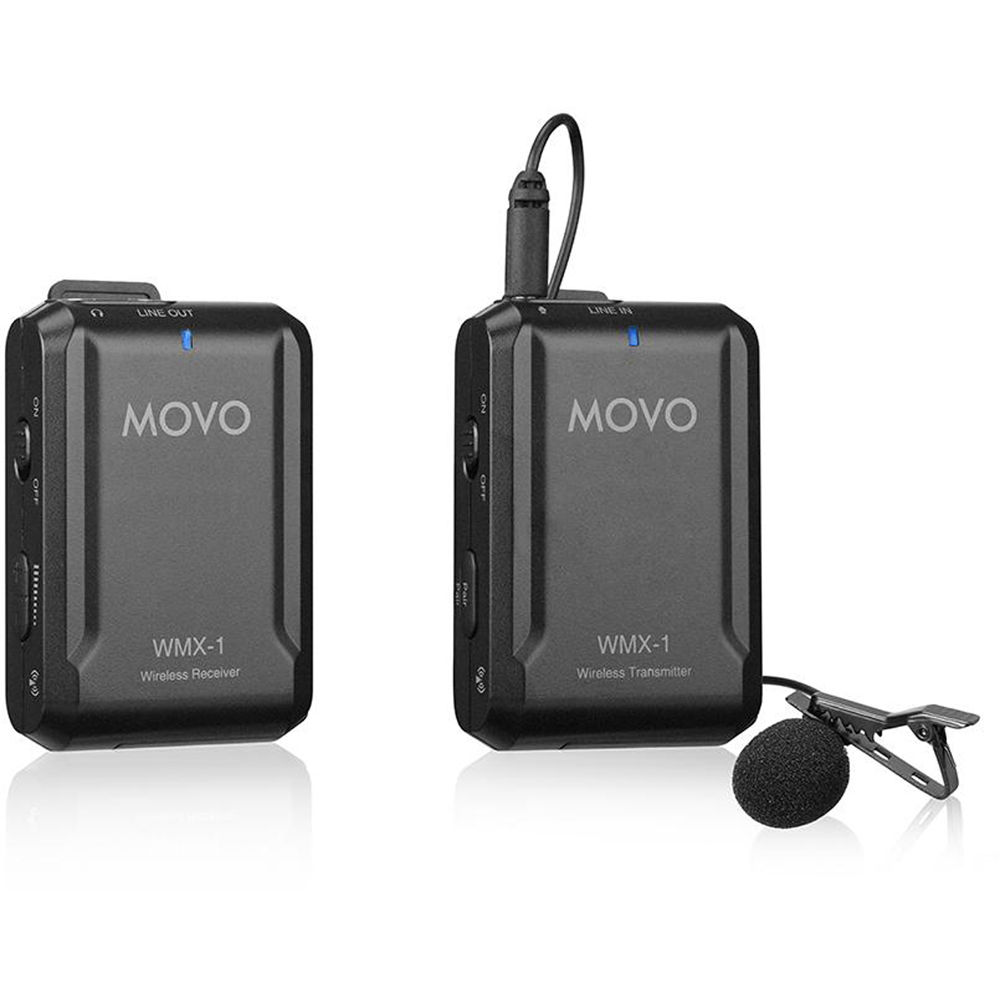

Camera-Mount Receiver

For vloggers, YouTubers, and mobile journalists looking to upgrade from the built-in microphone on their camera or smartphone to a quality two-person wireless lavalier mic system on a tight budget, the Movo Photo WMX-1-DUO presents a great combination of affordability and simplicity whether shooting with a DSLR/mirrorless camera or a mobile device.

With no menus to navigate, no channels to set, and no complicated settings to configure, the WMX-1-DUO's user-friendly operations can get you going in a matter of moments. Plus, features such as real-time headphone monitoring and dedicated mic and line inputs�options normally only found on much more expensive systems�empower you with extra versatility for more demanding projects.

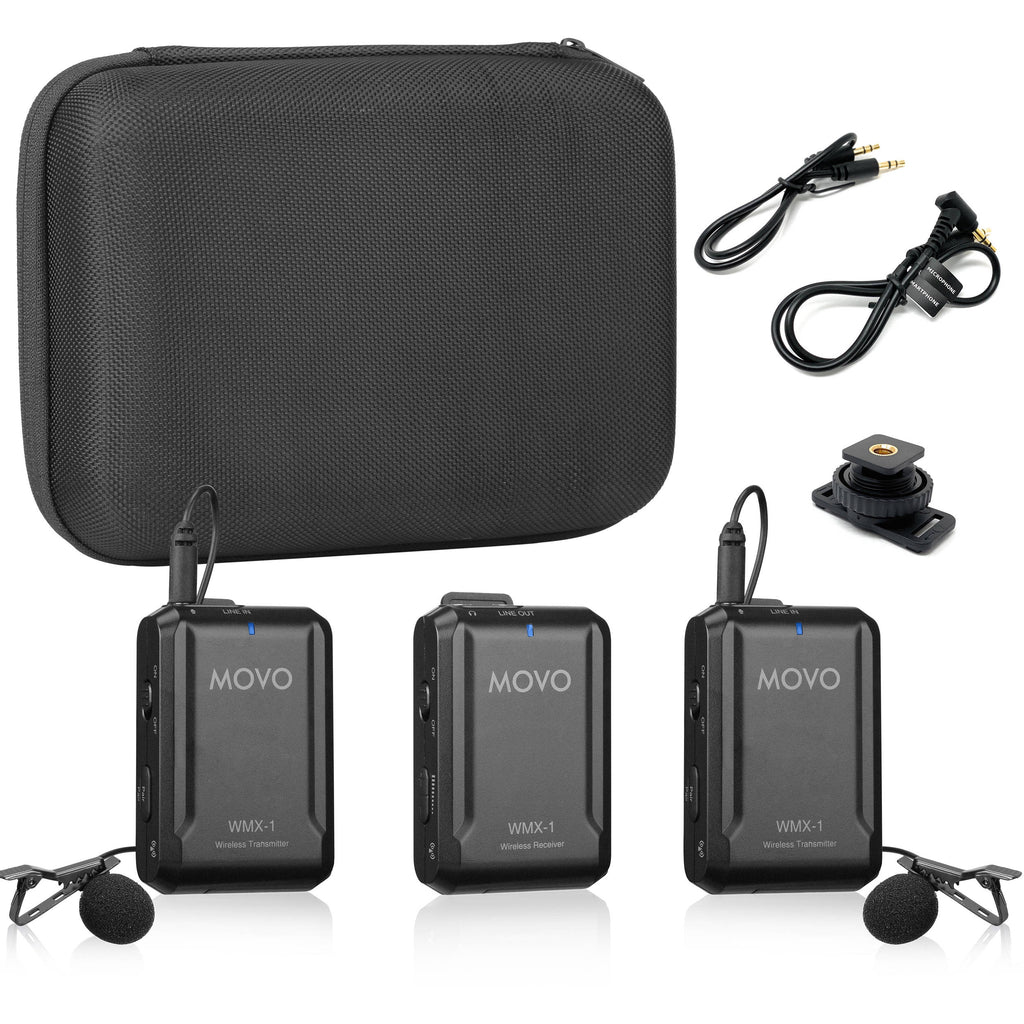

All you need to provide is some AAA batteries; the WMX-1-DUO comes with everything else necessary to start recording clear, intelligible speech to your camera or smartphone. It includes two bodypack transmitters�each with a clip-on lavalier microphone and a windscreen, a dual-channel receiver with a belt clip and a shoe mount, multiple audio cables, and a hard case to carry the whole system.

Unboxing the WMX-1-DUO Since each transmitter comes with a belt clip, it can easily be attached to the subject's clothing or costume. Being ultracompact and lightweight, it won't be a bother to the talent. It offers separate mic and line inputs that enable proper connection of a microphone or a line-level source such as a camera feed.

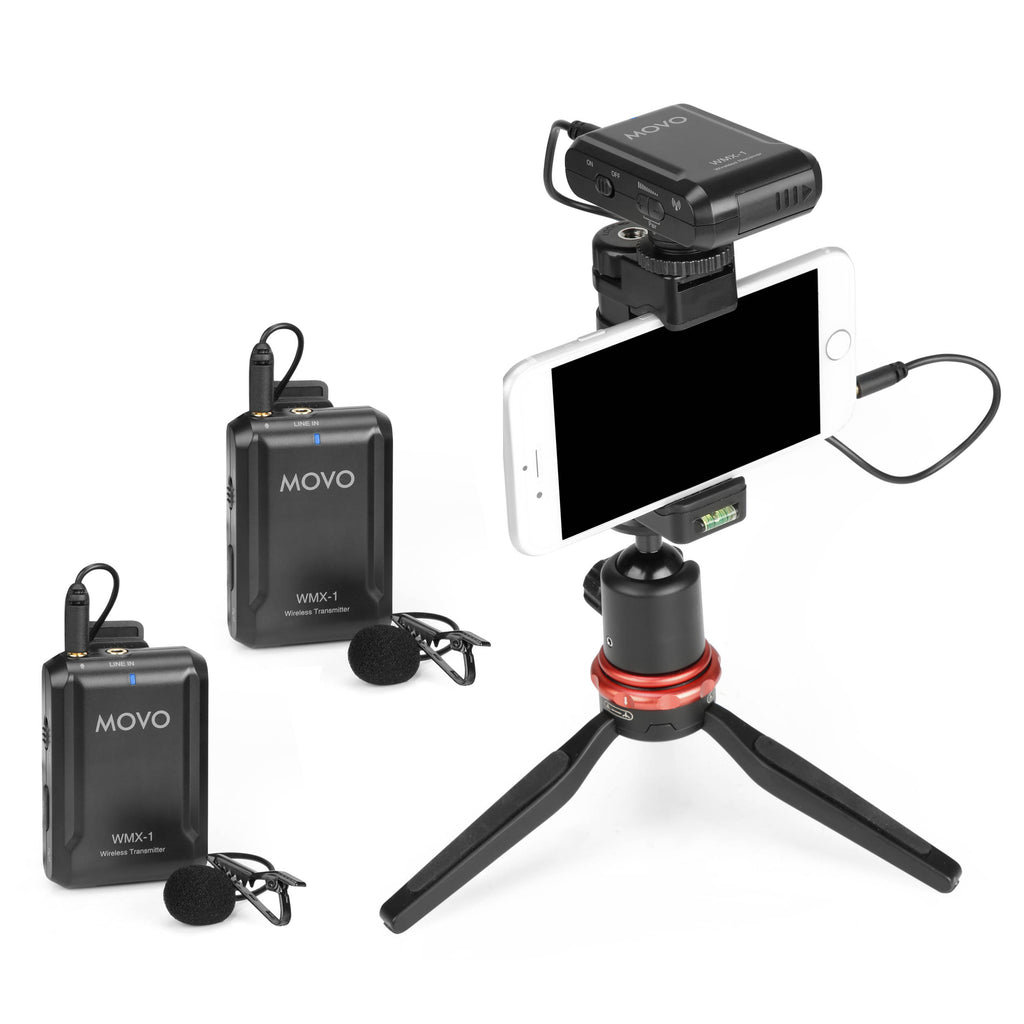

The equally ultracompact dual-channel receiver can accommodate up to two transmitters at the same time, making it a capable device for one- or two-person shoots. It includes a belt clip and a shoe mount so you can place it on you or your camera rig, plus TRS and TRRS audio cables to allow proper hookup to your camera (via TRS) or smartphone (via TRRS).

Along with each clip-on lavalier microphone, you get a windscreen that's designed to reduce noise from light wind, breaths, and rustling of clothes. The mic's omnidirectional polar pattern ensures consistent voice pickup even if the mic isn't pointed directly at the subject. Simple Setup Don't worry about frequency scanning or manual channel assignments, the receiver and transmitter only need to be paired. Once that straightforward process is done, the system is ready to go.

Two AAA batteries power each transmitter/receiver for up to six hours of run time. Rather than having to recharge batteries between gigs, just swap drained batteries for fresh ones.

The receiver features volume buttons, which allow you to adjust the signal level of the receiver's output to achieve a proper, distortion-free recording level on your camera or smartphone.

Connect a pair of headphones to the receiver's dedicated 3.5mm headphone jack to experience real-time monitoring of your audio signal. 2.4 GHz Digital Wireless The WMX-1-DUO utilizes 2.4 GHz digital technology to provide simple and reliable wireless signal. 2.4 GHz systems require no special license, so you can use the WMX-1-DUO anywhere in the world.

By operating in the 2.4 GHz frequency spectrum, the WMX-1-DUO avoids interference from commonly used UHF and VHF wireless mic systems. Keep the WMX-1-DUO away from heavy Wi-Fi and 2.4 GHz traffic for optimal performance.

With line-of-sight communication between the transmitter and receiver at a maximum distance of 200 feet, you can record your subject and get the right shot with confidence. General Features

• Ultracompact, lightweight housings with detachable belt clips
• Supplied shoe mount allows the receiver to be attached to a camera
• Bicolor LED on each transmitter and receiver indicates sync status and low-battery warning
• Receiver outputs a mono signal (summed mono when using two transmitters) from its 3.5mm line and headphone output ports
• Up to six hours of operating time via AAA batteries (available separately)
• Includes 3.5mm TRS cable for connection to a camera
• Includes 3.5mm TRRS cable for connection to a smartphone or tablet outfitted with a 3.5mm headphone jack
• Includes hard carrying case for easy transport of the system

UPC: 817711021701

Wireless Transmission	Digital 2.4 GHz
Included Transmitters	2 x Bodypack with Microphone
Diversity	Non-Diversity
RF Frequency Band	MHz
Max Operating Range	200' / 61 m (Line of Sight)
Max Systems per Setup	1
Audio Codec	PCM
Sample Rate/Resolution	32 kHz / 16-Bit
Encryption	None
Modulation	GFSK

Form Factor	Camera-Mount / Beltpack
Mounting Options	Belt Clip, Shoe-Mount (with Included Hardware)
Number of Audio Channels	2
Audio I/O	1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Output 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
Frequency Response	35 kHz to 14 kHz ±3 dB (Dependent on Mic)
Network I/O	None
Word Clock I/O	None
Power Requirements	Battery
Battery Type	2 x AAA (Not Included)
Approx. Battery Life	6 Hours
Display & Indicators	1 x LED (Battery Status, Sync)
Dimensions	1.8 x 2.8 x 1.4" / 4.6 x 7.1 x 3.6 cm
Weight	1.7 oz / 47 g (without Batteries)

Form Factor	Bodypack
Audio I/O	2 x 1/8" / 3.5 mm TRS Female Unbalanced Input
Pad	None
Muting	None
Auto-Level Control	No
Signal Processing	None
Frequency Response	35 Hz to 14 kHz ±3 dB (Dependent on Mic)
Sync Method	Manual
Power Requirements	Battery
Battery Type	2 x AAA (Not Included)
Approx. Battery Life	6 Hours
USB/Lightning Connectivity	None
Display & Indicators	1 x LED (Battery Status, Sync)
Dimensions	1.8 x 2.8 x 1.4" / 4.6 x 7.1 x 3.6 cm
Weight	1.7 oz / 47 g (without Batteries)

Form Factor	Lavalier
Color	Black
Sound Field	Mono
Operating Principle	Pressure Operated
Capsule	Electret Condenser
Polar Pattern	Omnidirectional
Frequency Range	35 Hz to 18 kHz
SNR	74 dB
Sensitivity	-30 dBV/Pa at 1 kHz
Output Connectors	1 x 1/8" / 3.5 mm TRS Male Unbalanced
Cable Length	4' / 1.22 m

Package Weight	1.1 lb
Box Dimensions (LxWxH)	8.5 x 6.75 x 2"
