Movcam FS7 19mm Standard Kit (V-Mount)

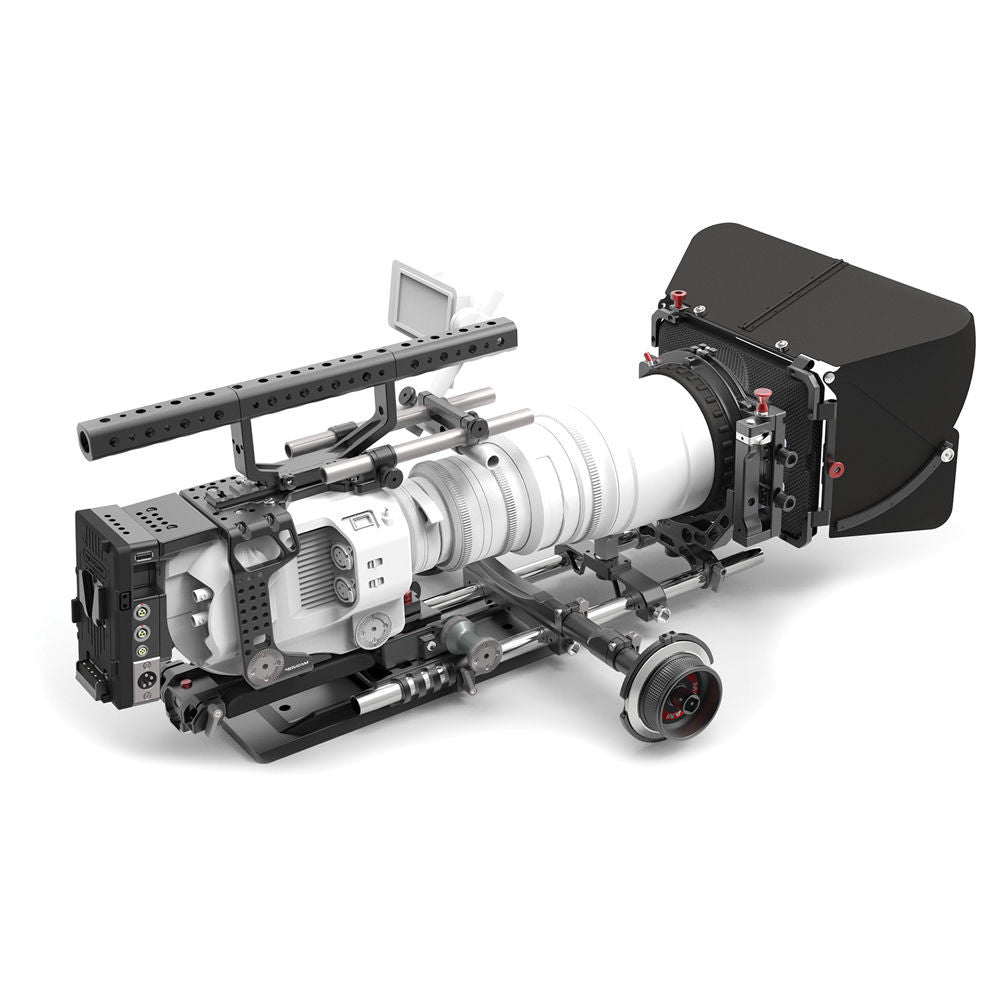

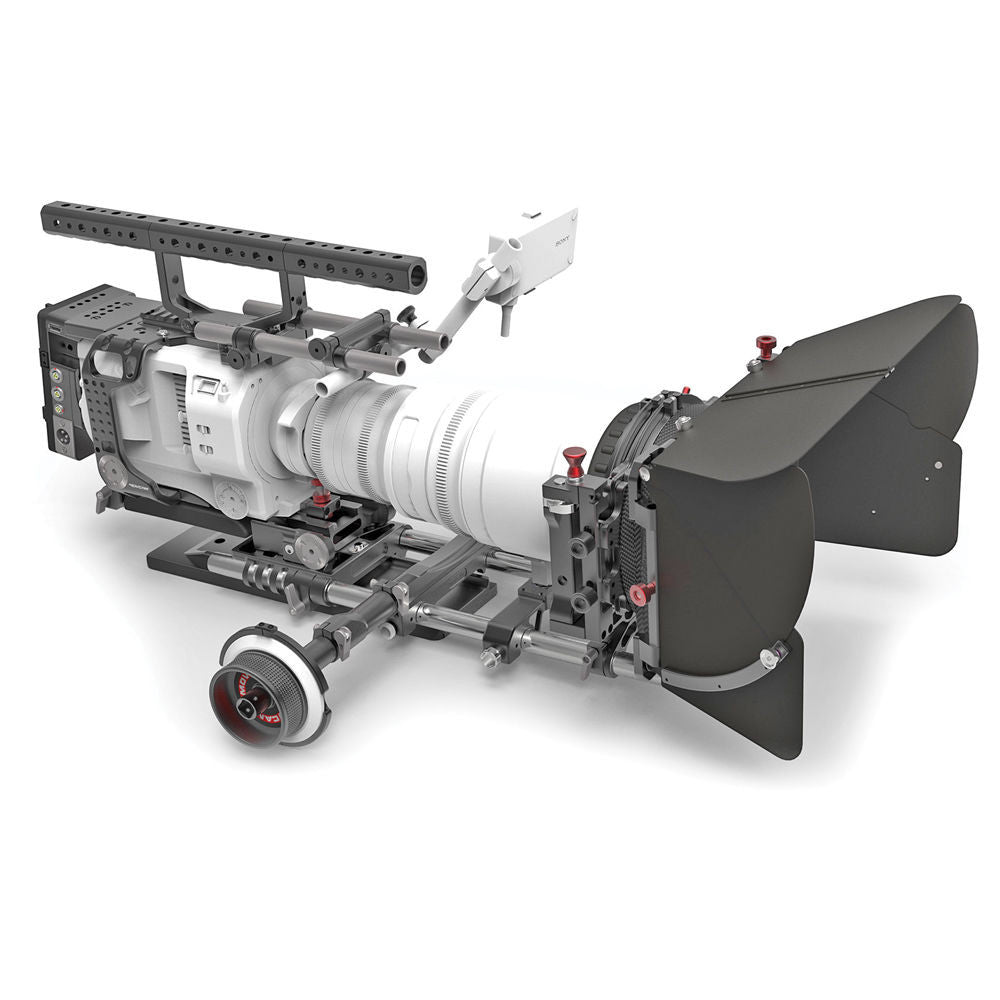

The Movcam FS7 19mm Standard Kit is a custom studio camera rig for the Sony FS7 camera, complete with a dual-sided follow focus, matte box, and V-Mount power distribution box. It features a riser plate tailored to fit the bottom of the camera that docks into a V-lock compatible baseplate. In addition to a V-lock interface for quick release attachment to VCT tripod plates, the baseplate adds front and rear 15mm rod clamps, a pair of ARRI standard rosettes, and an integrated shoulder pad. It can also be mounted onto an included 19mm rod bridge plate, which in turn can be mounted onto a 12" sliding dovetail plate for tripod mounting. Also included in the kit is a form-fitting side bracket that adds 1/4"-20 threaded accessory mounting holes on the top and right side of the camera, and a rosette spacer.

For the top of the camera, a 15mm rod mount is provided along with an adapter with a parallel rod port for attaching and repositioning the camera's EVF/monitor. A top plate screws into the top of the camera, providing a NATO rail for attaching an included long top handle, which adds additional 1/4"-20 threaded holes. Attaching to the rear of the camera is a power distribution box that features a V-Mount battery plate, and fits into the same slot used by Sony's own V-Mount battery pack. The pack provides a means to power your camera using a V-Mount battery, and provides several power outputs in varying voltages for powering optional accessories.

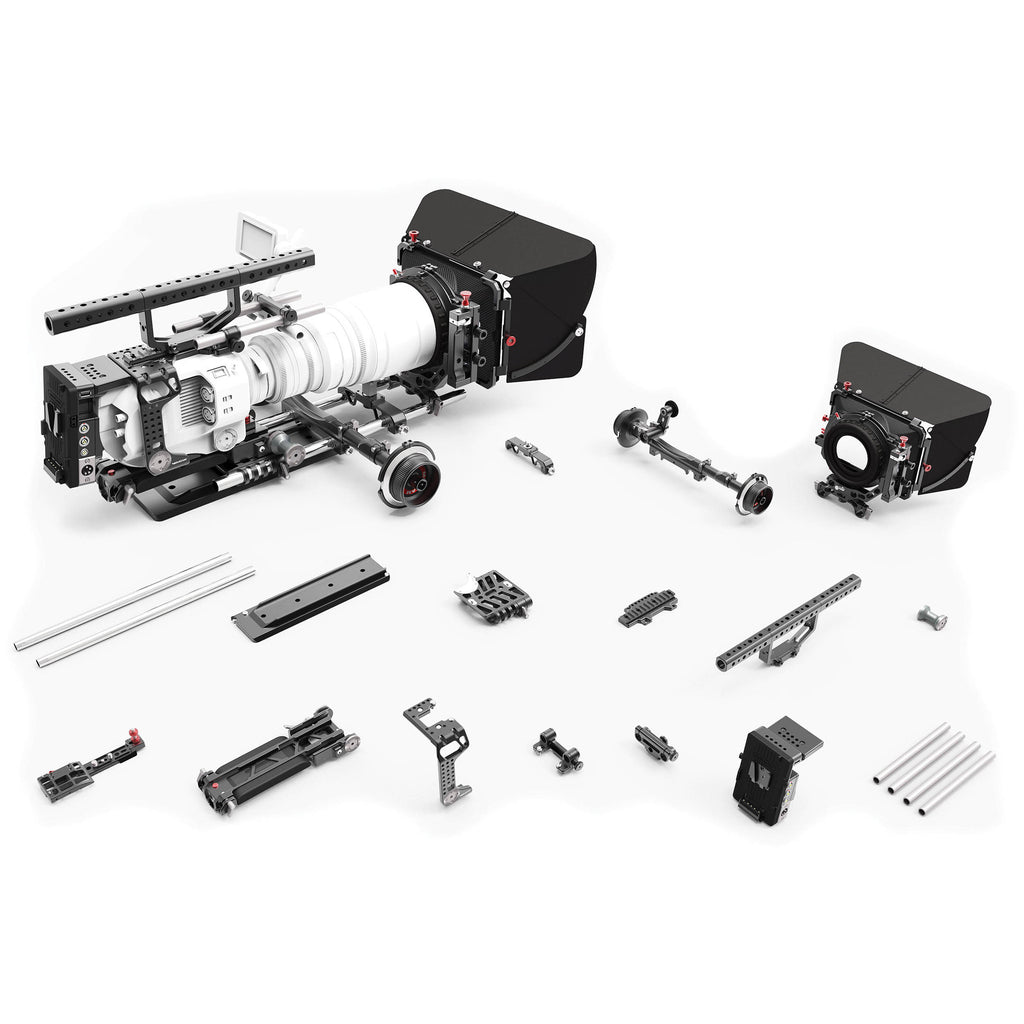

Four 8"-long 15mm rods are included for use with the front, rear, or top rod clamps provided with this kit. A pair of 12" 19mm rods are provided for the bride plate, which support an included lens support, dual-sided studio follow focus with 0.8 pitch gear drive, and two-stage swing-away matte box that features one fixed 4x5.65" filter tray, and one rotating 4x5.65" filter tray.

Please see below for more information on the components of this kit.
