Description
- Custom Rig for the Sony FS7
- 3-Stage 5.65x5.65" Matte Box
- Dual-Sided Studio Follow Focus
- V-Lock Baseplate with Shoulder Pad
- 19mm Bride Plate & 24" Dovetail Plate
- Side Bracket & Top Handle
- Top 15mm Clamp for Camera's EVF/Monitor
- Gold Mount Battery Distribution Box
- 1/4"-20 Threads & ARRI Rosettes
- Lens Support & Rosette Spacer

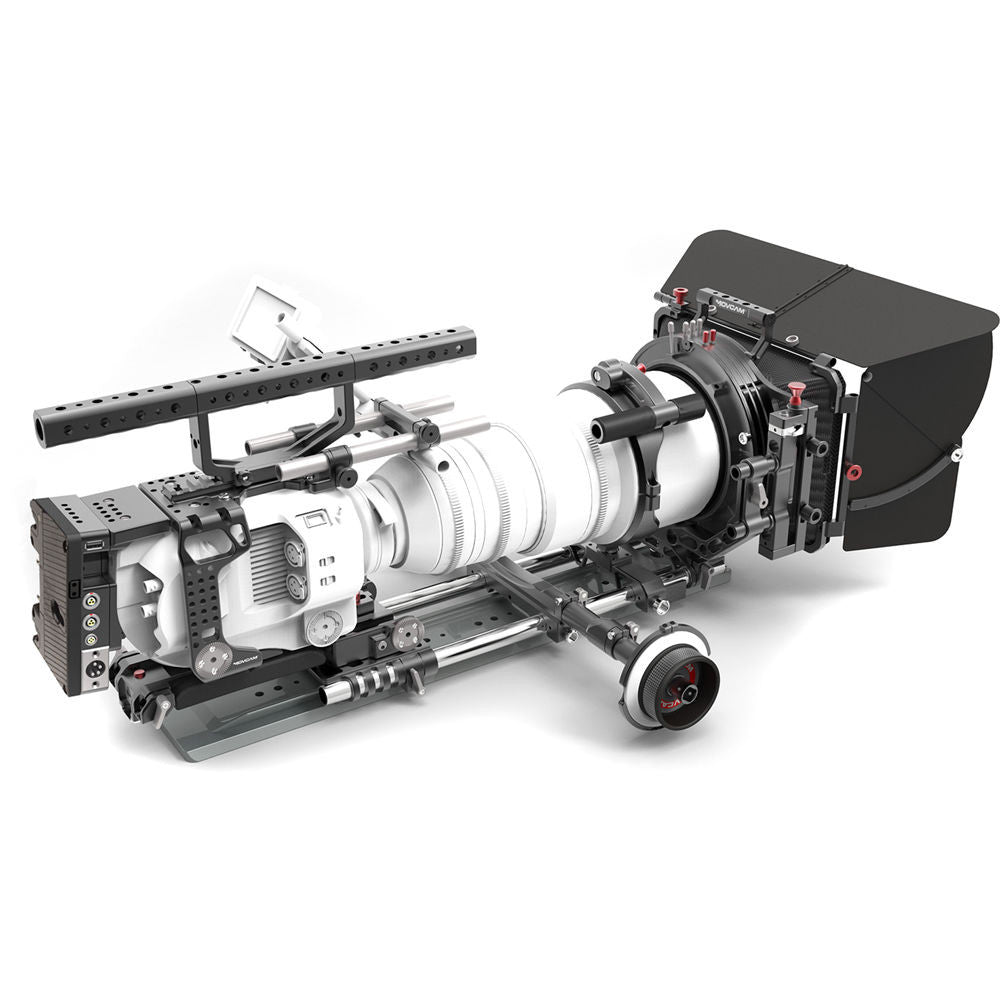

The Movcam FS7 19mm Cine Kit is a custom cinema camera rig for the Sony FS7 camera, complete with a dual-sided follow focus, 3-stage 5.65 x 5.65" matte box, and a Gold Mount battery distribution box. It features a riser plate tailored to fit the bottom of the camera that docks into a V-lock compatible baseplate. In addition to a V-lock interface for quick-release attachment to VCT tripod plates, the baseplate adds front and rear 15mm rod clamps, a pair of ARRI standard rosettes, and an integrated shoulder pad. It can also be mounted onto an included 19mm rod bridge plate, which in turn can be mounted onto a 24" sliding dovetail plate. Also included in the kit is a form-fitting side bracket that adds 1/4"-20 threaded accessory mounting holes on the top and right side of the camera, and a rosette spacer.
For the top of the camera, a 15mm rod mount is provided along with an adapter with a parallel rod port for attaching and re-positioning the camera's EVF/monitor. A top plate screws into the top of the camera and provides a NATO rail for attaching an included long top handle, which adds additional 1/4"-20 threaded holes. Attaching to the rear of the camera is a power distributor that features a Gold Mount battery plate and fits into the same slot used by Sony's own V-Mount battery pack. The pack provides a means to power your camera using a Gold Mount battery and provides several power outputs in varying voltages for powering optional accessories.
Two 8"-long 15mm rods are included for use with the top rod clamps, while a pair of 18" long 19mm rods are provided for the bride plate. The 19mm rods support an included lens support, dual-sided studio follow focus with 0.8 pitch gear drive, and 3-stage swing-away matte box that features one fixed 5.65 x 5.65" filter tray and two rotating 5.65 x 5.65" filter trays. Additional kit components include a 19mm rod support for the bride plate and a lens carry handle for an ARRI Alura 45-250mm lens.

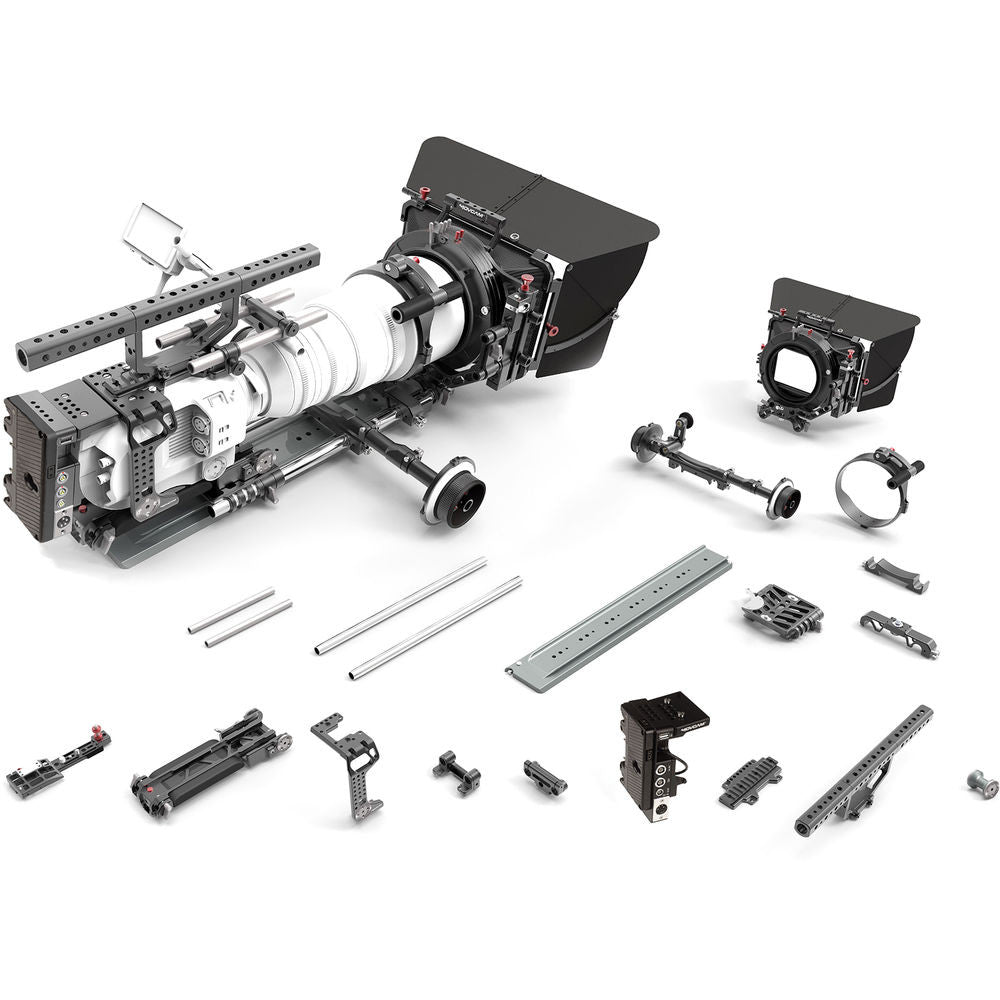

Please see below for more information on the components of this kit.
- FS7 Riser Plate
- Multi-BP Baseplate for FS7 Camera Rig
- Side Bracket for Sony FS7 Rig
- Top Clamp for Sony FS7 Camera Rig
- Rod Clamp for 15mm Systems
- Gold Mount Battery Distributor Box for Sony FS7 Camera
- Sliding Dovetail Plate for Movcam Systems (24")
- 19mm Bridge Plate for Dovetail Plate
- Top Plate for Movcam Sony FS7 Camera Rig
- Top Handle with Extensions for Sony PMW-F5/-F55 4K Camcorders
- H Rosette Spacer
- Studio Follow Focus
- 19mm Lens Bridge
- Bridgeplate Rod Support for 19mm Bridgeplate Systems
- Lens Carry Handle
- MOV-301-0205 Mattebox MM5 (2 Rotating Filter Holder)
- 2 x 15mm Aluminum Rod - 8" Long
- 2 x 19mm Steel Rod (18")
