Description

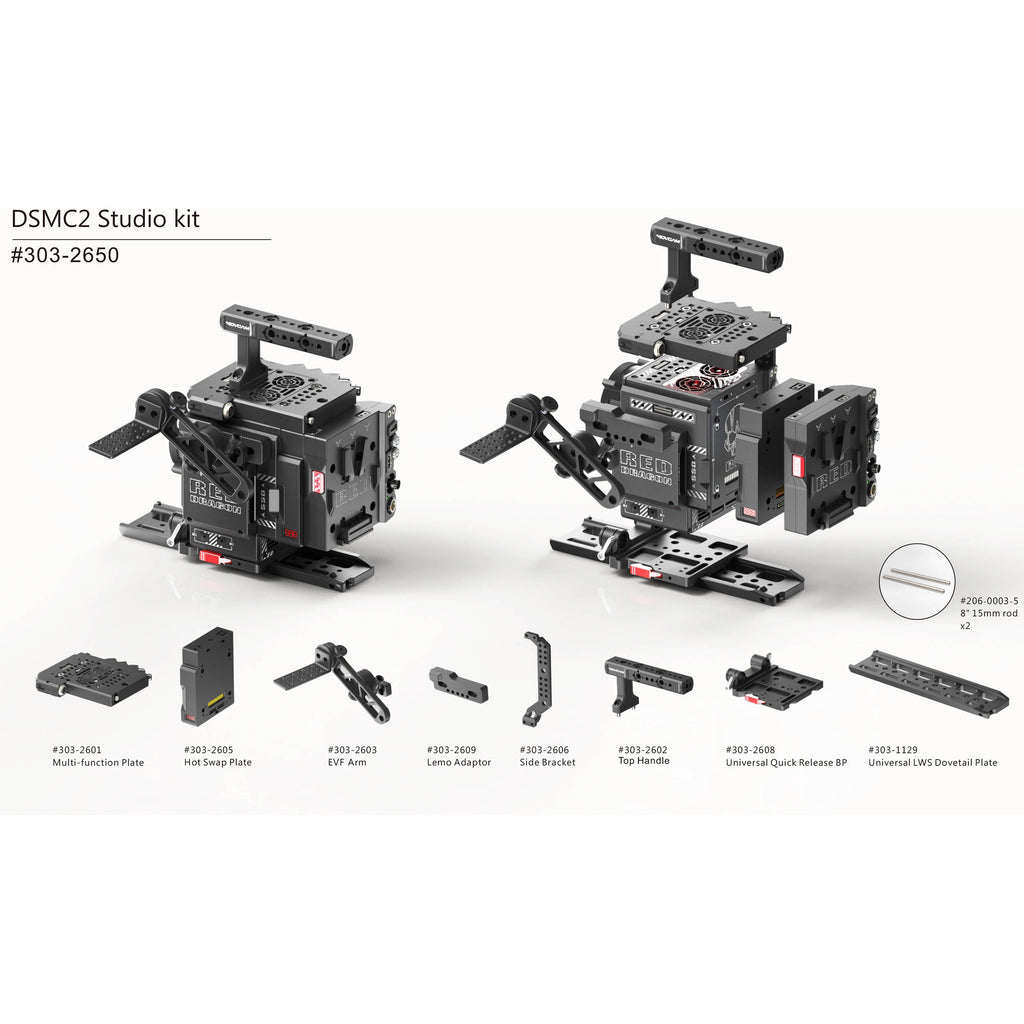

- Multi-Function Top Plate
- Rear Hot-Swap Adapter
- LEMO Adapter
- Cheese Plate Side Bracket
- Top Handle
- Articulated EVF Mount
- DSMC2 LWS Baseplate with Rods
- Dovetail Platform

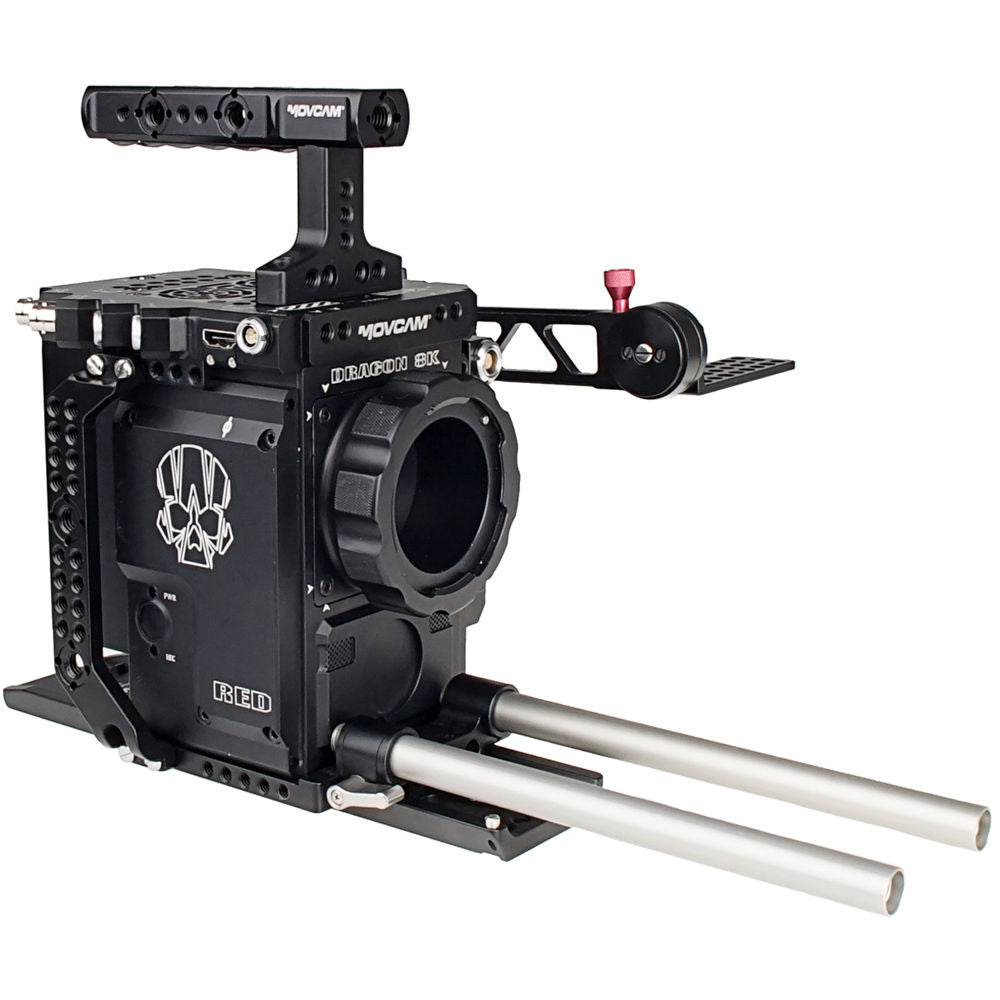

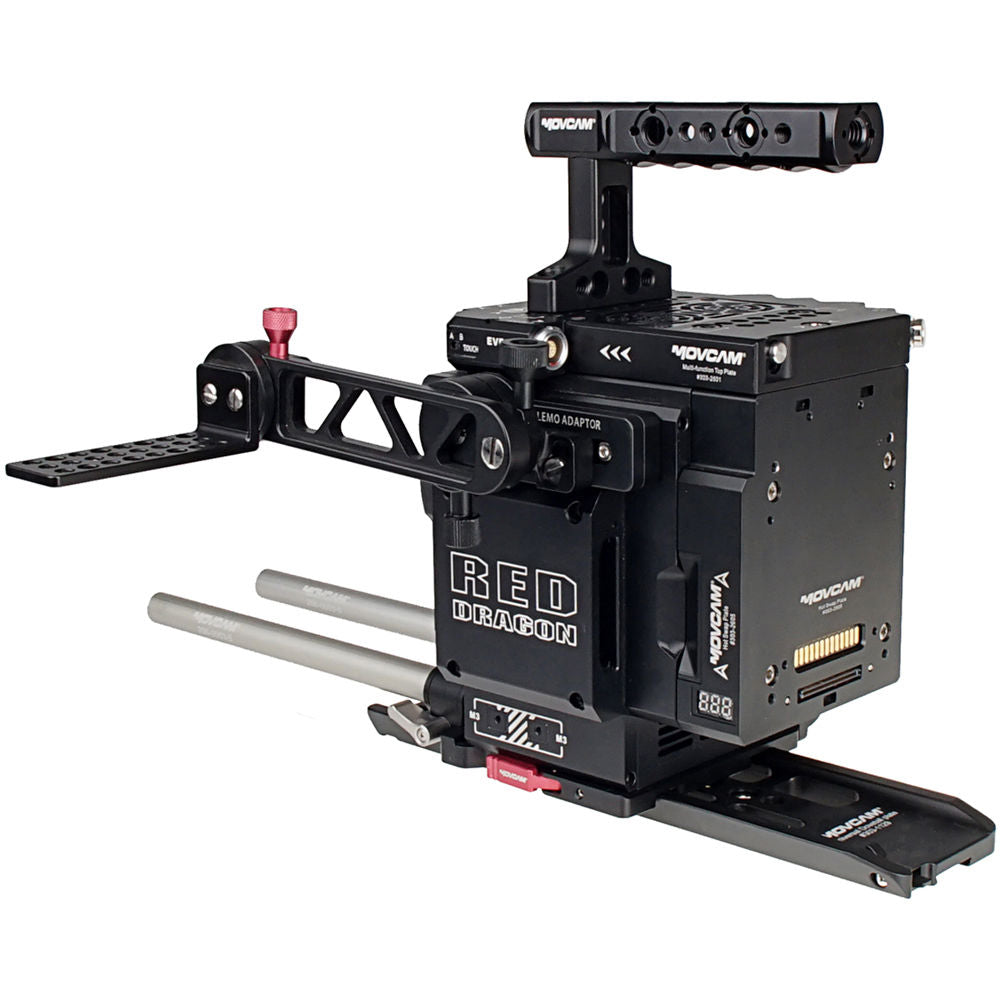

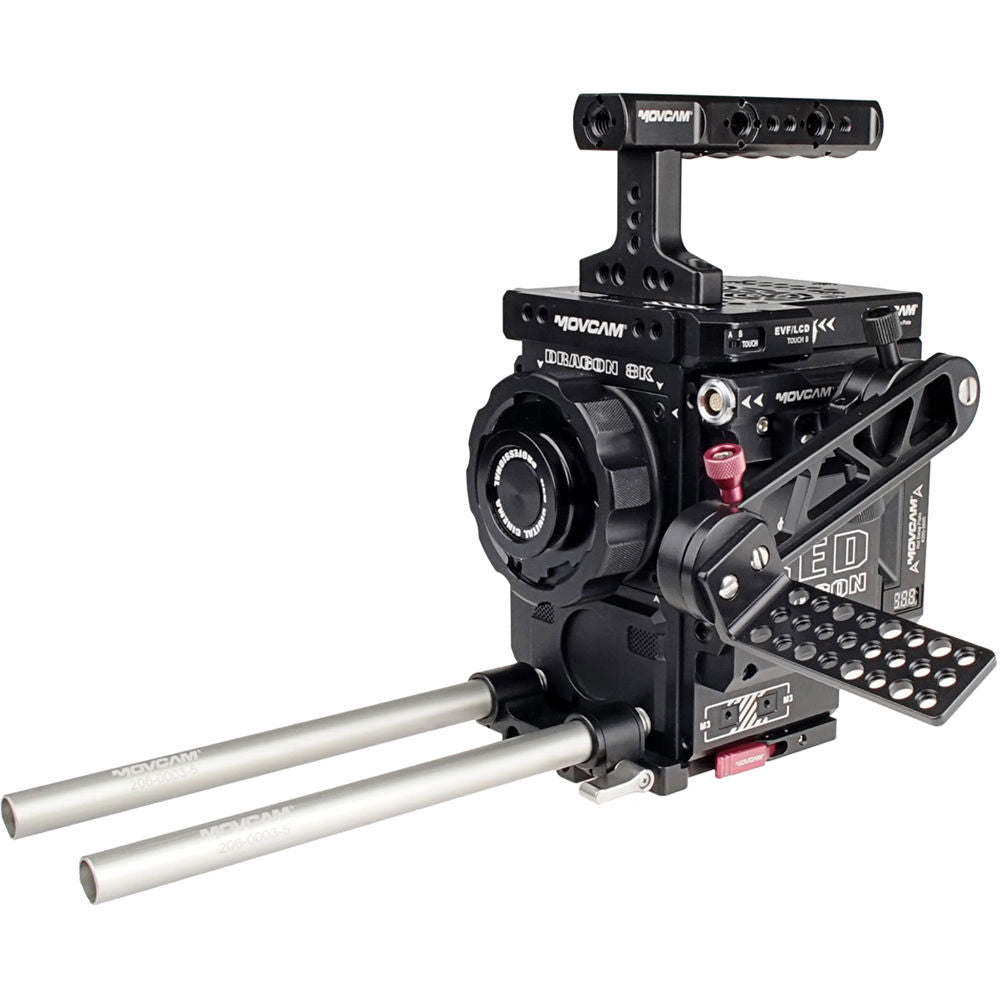

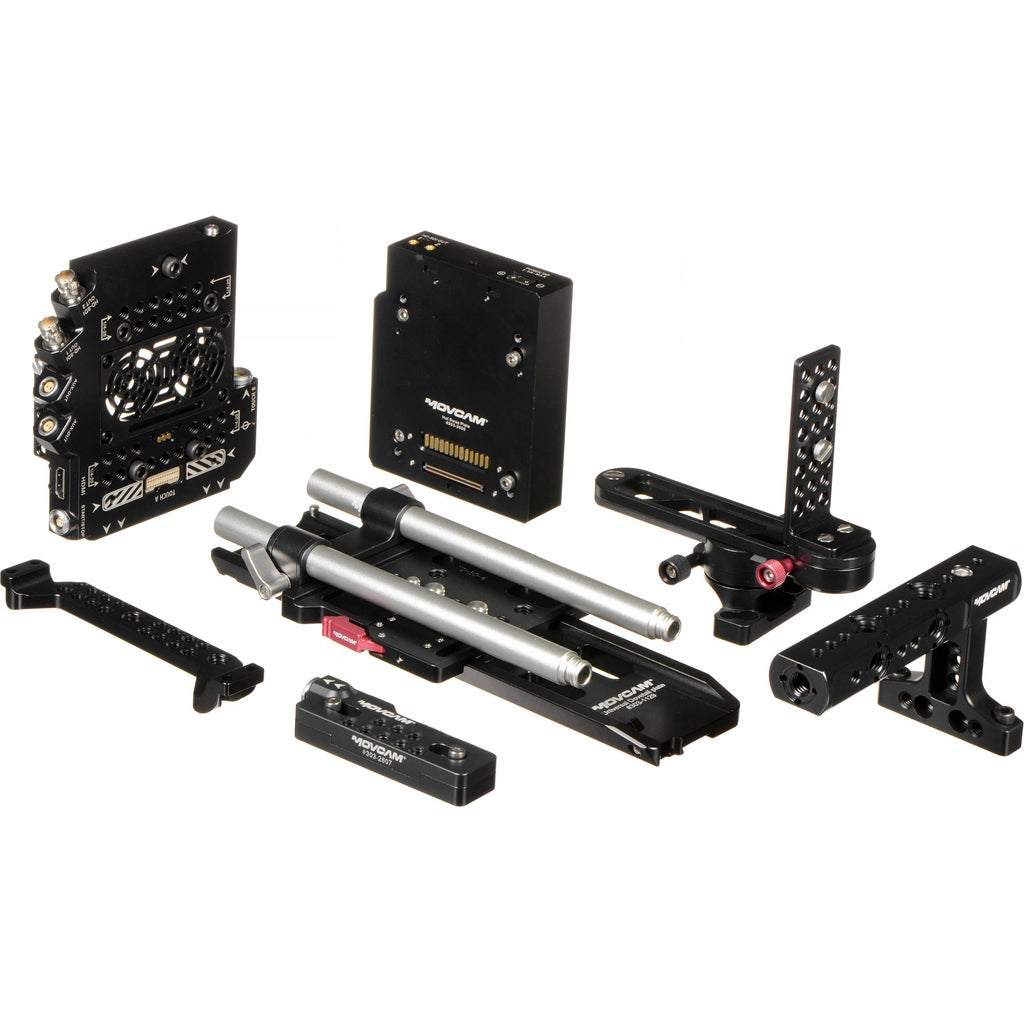

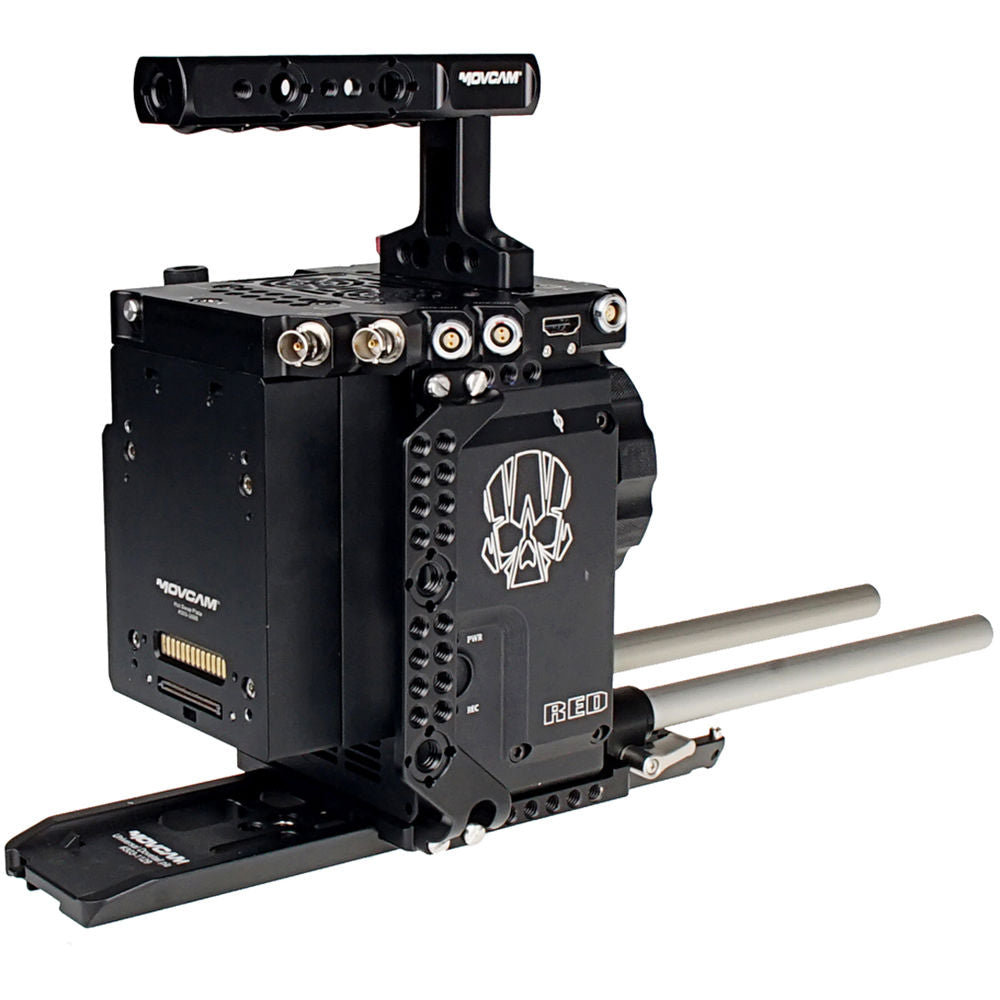

Turn your RED camera BRAIN into a fully functional studio cinema camera with the Movcam DSMC2 Studio Kit . Similar to the DSMC2 Base Kit, the Studio Kit includes the Multi-Function Top Plate, Hot-Swap Adapter, LEMO Adapter, Side Bracket, DSMC2 Baseplate, 9" Dovetail, and a pair of 15mm rods. Additionally, the Studio Kit provides a top handle and an articulated EVF mount.
The Multi-Function Top Plate and LEMO Adapter fit seamlessly over the DSMC2 design and offer I/O connections for video output over LEMO, HDMI, and SDI as well as AUX power outputs. The LEMO adapter adds an additional monitor terminal for a touch display. Securing to the rear of the DSMC2 camera body, the Hot-Swap Adapter serves as a mounting platform for separately available battery plates. It also can hold backup batteries for continuously powering the camera during battery swaps. Accessory mounting is handled by the side bracket, which has tapped 1/4"-20 and 3/8"-16 threaded holes, and the LWS Baseplate, which secures the included 15mm rods. For low-mode shooting, grab the top handle. Multiple threaded holes allow for additional accessories to be attached on the handle itself. Studio shooting wouldn't be complete without an EVF, and the articulated EVF mount allows you to attach and position an EVF of your choice right on the camera. The included dovetail allows your setup to be easily balanced on a fluid head.
- Multifunction Top Plate for RED Weapon, Scarlet-W, and Raven

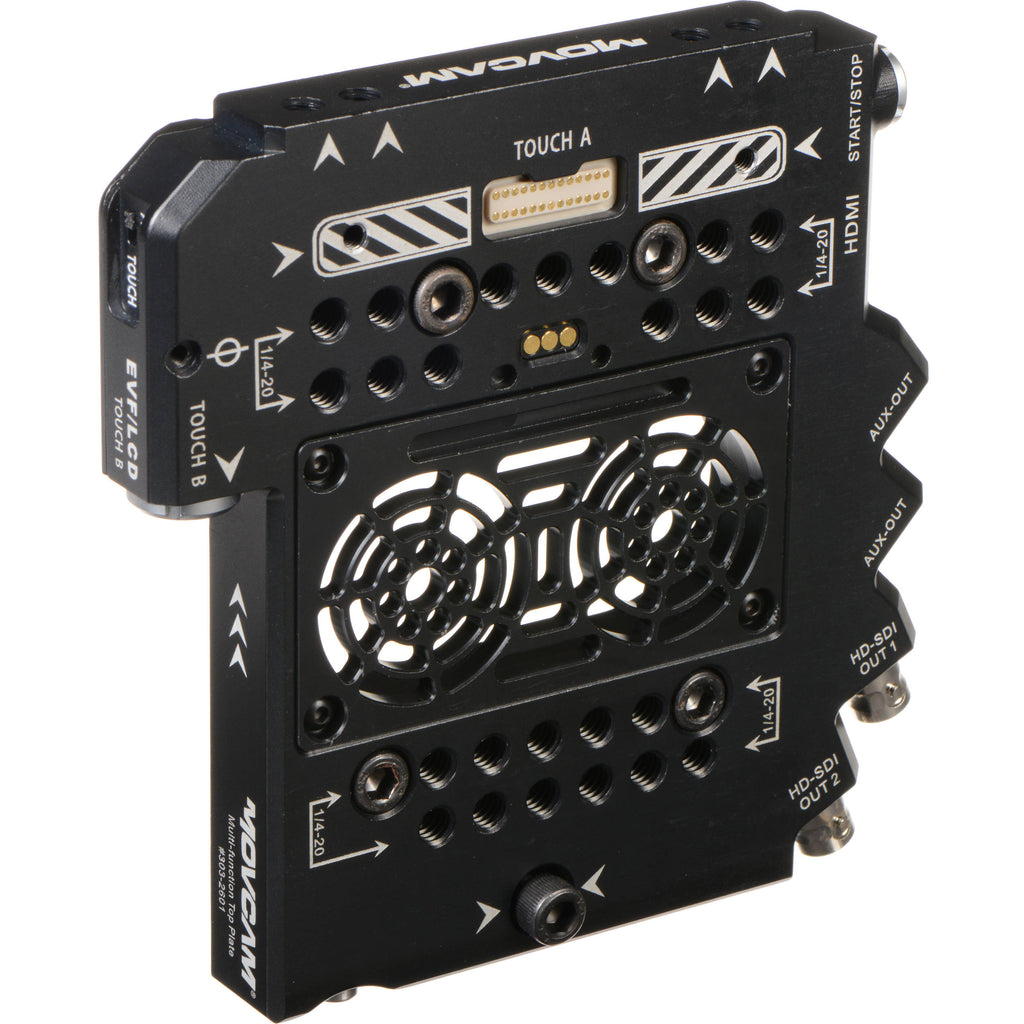

The Multifunction Top Plate from Movcam is designed for use with RED Weapon, RED Raven, and RED Scarlet digital cinema cameras. Besides having a stock fan opening and many 1/4"-20 threads for accessories, the Multifunction Top Plate offers I/O connections via Touch A and Touch B for video output over LEMO, HDMI, and SDI, as well as AUX power outputs. The Top Plate also offers mounting points for the Movcam top handle as well as the stock top handle.
- 2 x HD-SDI outputs when combined with the Movcam Hot Swap Adapter
- 2 x AUX Power Outputs: 2-pin LEMO for RED I/O Expander or Movcam Hot Swap Adapter
- 1 x HDMI Output for simultaneous operation with top pogo EVF port
- 1 x Start/Stop: 3-pin Fischer in use with OEM RED Trigger Handle
- Touch A for pogo pin mounted EVF/LCD monitors
- Touch B LEMO adapter for legacy viewfinder cable input
- Toggle switch for Touch A or Touch B as only one output can be active with the top plate
- Retractable HD-SDI pins to connect with Movcam Hot Swap Adapter
- Retractable D-Tap to connect with either RED I/O Expander or Movcam Hot Swap Adapter
- Top Handle for RED Weapon, Scarlet-W, and Raven Cameras
The Top Handle for RED Weapon, Scarlet-W, and Raven Cameras from Movcam mounts onto the Multi-Function Top Plate or onto the RED stock handle mounting points. The top handle offers multiple ARRI-style mounting grooves and 1/4"-20 threading.

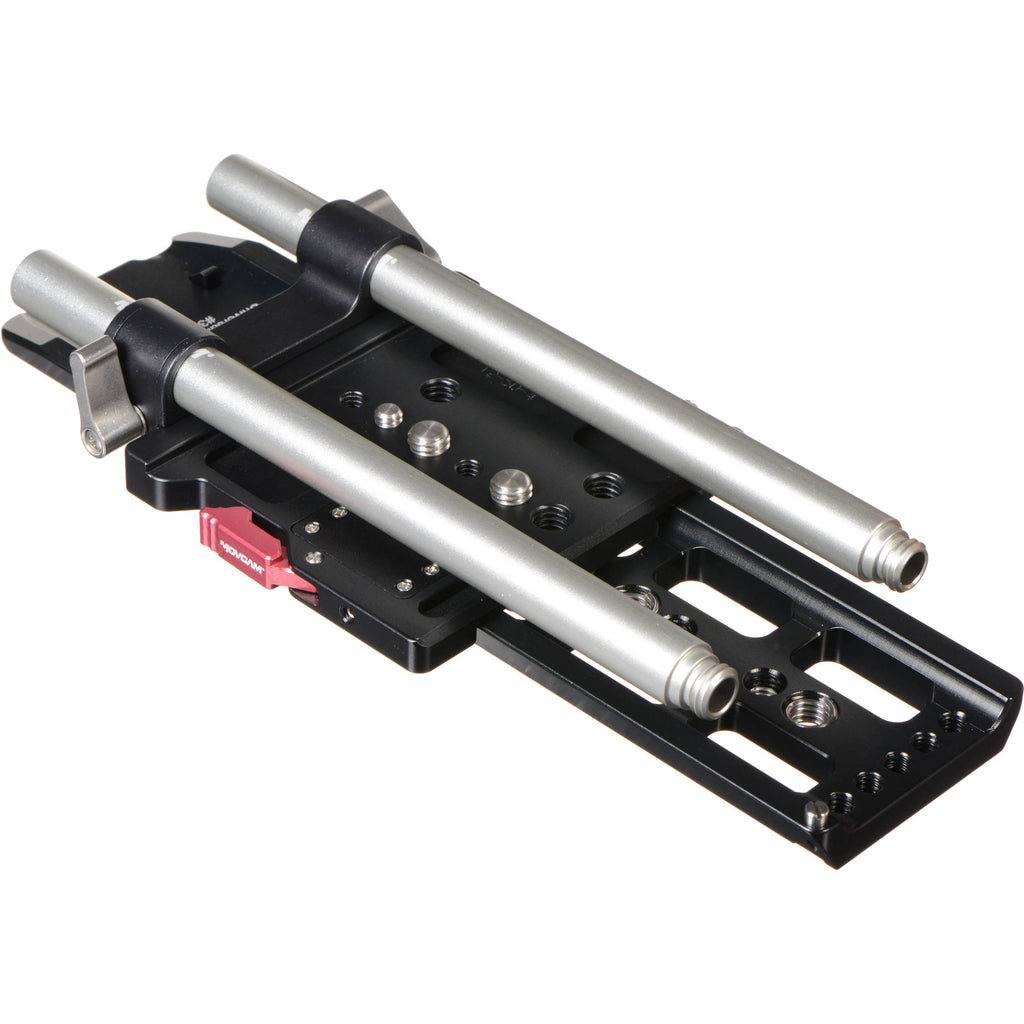

- DSMC2 Base Plate
The DSMC2 Base Plate from Movcam is designed for use with RED Weapon, RED Raven, and RED Scarlet digital cinema cameras.

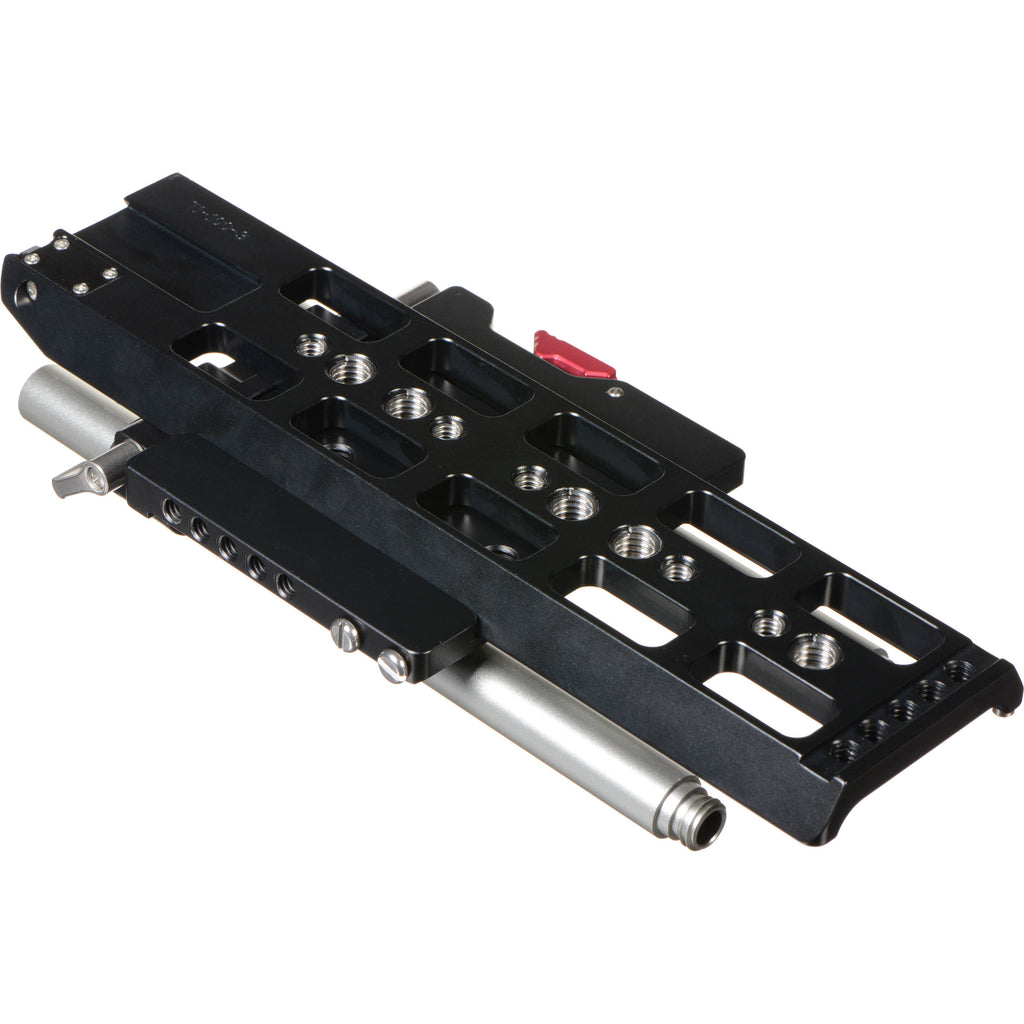

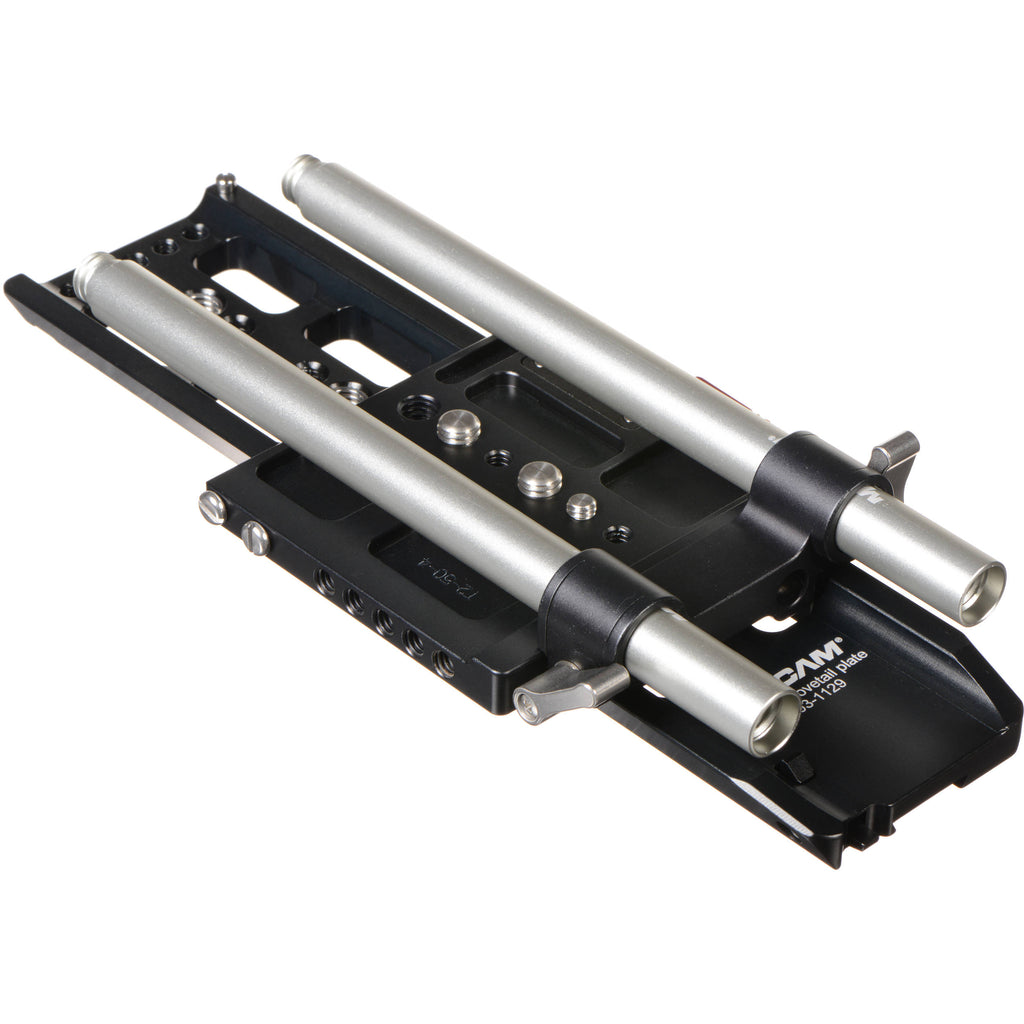

- Universal LWS Dovetail Plate
The Movcam Universal LWS Dovetail Plate is a baseplate compatible with Arri BP8 and Arri BP9 Bridgeplates.
- 15mm Aluminum Rod - 8" Long
The 15mm Aluminum Rod - 8" (203.2mm) Long from Movcam is a single rod made of aluminum and is 8" (203.2mm) in length.

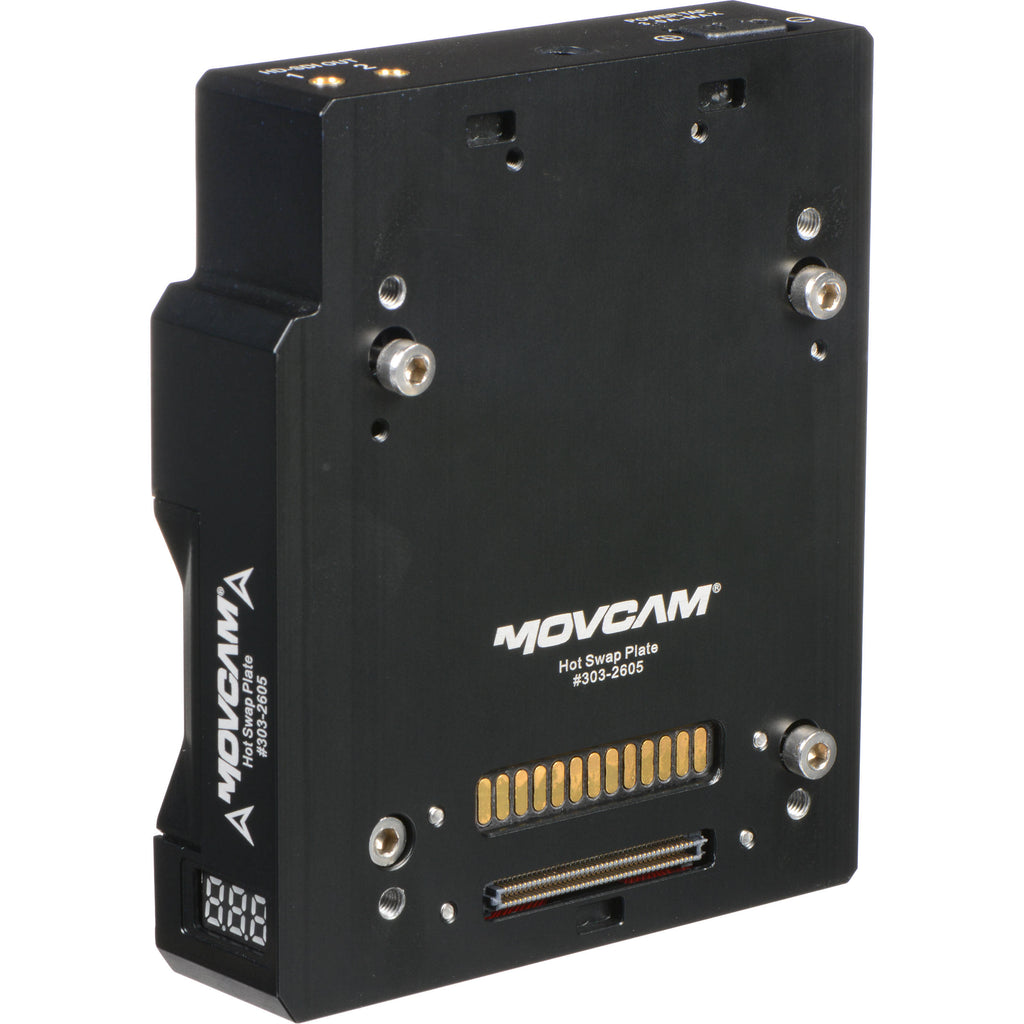

- Hot Swap Plate for RED WEAPON, SCARLET-W, and RAVEN Cameras

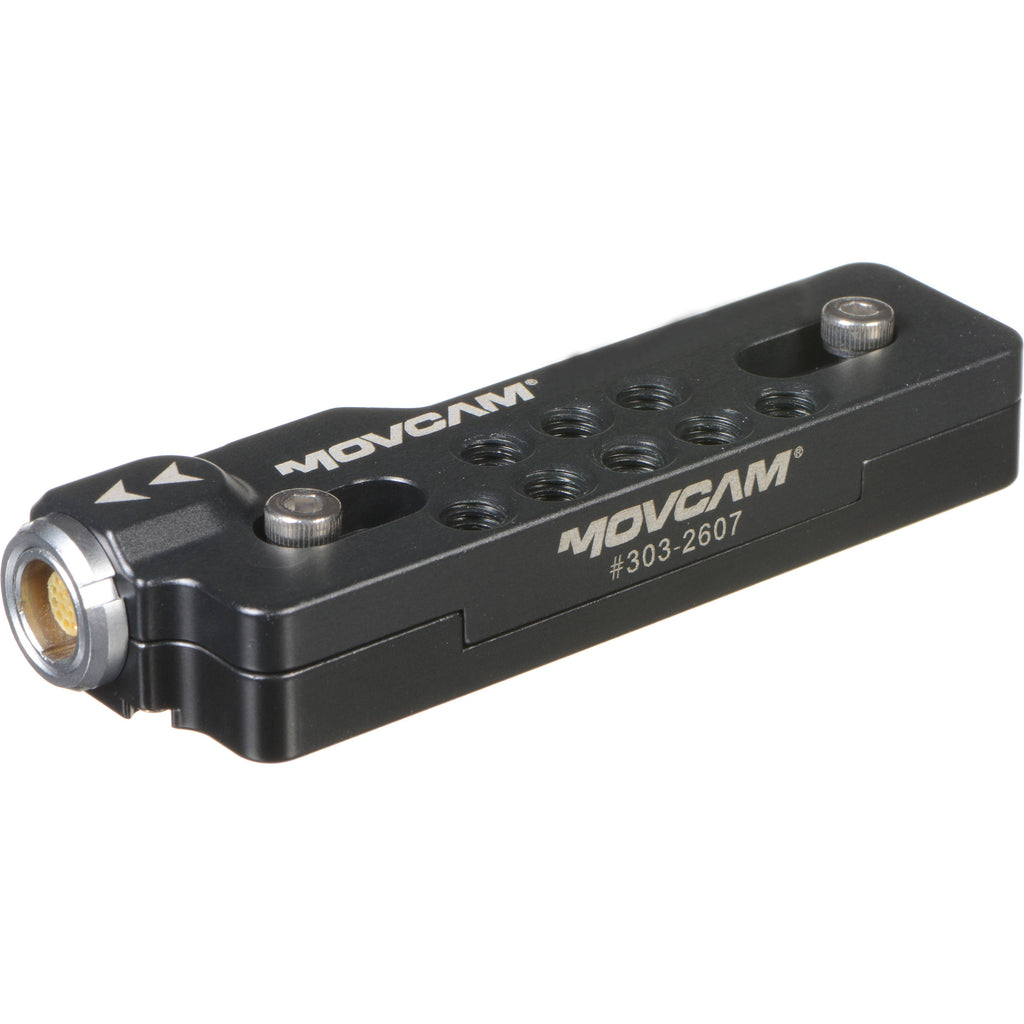

- DSMC2 LEMO Adapter for RED WEAPON, EPIC-W, SCARLET-W, and RAVEN
- Side Bracket for RED WEAPON, SCARLET-W, and RAVEN Cameras
- EVF Arm for RED WEAPON, SCARLET-W, and RAVEN
- Multifunction Top Plate for RED Weapon, Scarlet-W, and Raven
Compatibility RED Weapon, Scarlet-W, and Raven Connectors 2 x BNC HD-SDI output
2 x 2-pin LEMO AUX output
1 x HDMI video output
1 x 3-pin Fischer start/stop
1 x LEMO EVF/LCD Touch B
1 x Pogo pin EVF/LCD Touch A
1 x D-Tap retractable switch
1 x Toggle switch, Touch A / Touch BPackaging Info Box Dimensions (LxWxH) 5.9 x 5.1 x 1.3" - DSMC2 LEMO Adapter for RED WEAPON, EPIC-W, SCARLET-W, and RAVEN
Packaging Info Box Dimensions (LxWxH) 4.7 x 1.7 x 0.8" - Side Bracket for RED WEAPON, SCARLET-W, and RAVEN Cameras
Packaging Info Box Dimensions (LxWxH) 6.0 x 4.0 x 0.5" - Top Handle for RED Weapon, Scarlet-W, and Raven Cameras
Compatibility RED Weapon, Scarlet-W, and Raven cameras Thread 1/4"-20 Packaging Info Box Dimensions (LxWxH) 6.2 x 4.0 x 2.6" - DSMC2 Base Plate
Packaging Info Box Dimensions (LxWxH) 5.0 x 4.0 x 1.2" - Universal LWS Dovetail Plate
Compatibility Arri BP8 and Arri BP9 Bridgeplates Dimensions 10.0 x 2.6 x 0.5" (256 x 68 x 14 mm) Weight 0.5 lb (0.25 kg) Packaging Info Box Dimensions (LxWxH) 10.6 x 4.1 x 1.0" - 15mm Aluminum Rod - 8" Long
Material Aluminum Rod Diameter 15 mm Rod Length 8" (203.2 mm) Packaging Info Box Dimensions (LxWxH) 9.0 x 1.0 x 1.0"
- Hot Swap Plate for RED WEAPON, SCARLET-W, and RAVEN Cameras
- EVF Arm for RED WEAPON, SCARLET-W, and RAVEN
- Limited 1-Year Warranty
- Limited 1-Year Warranty
- 2 Year Warranty
