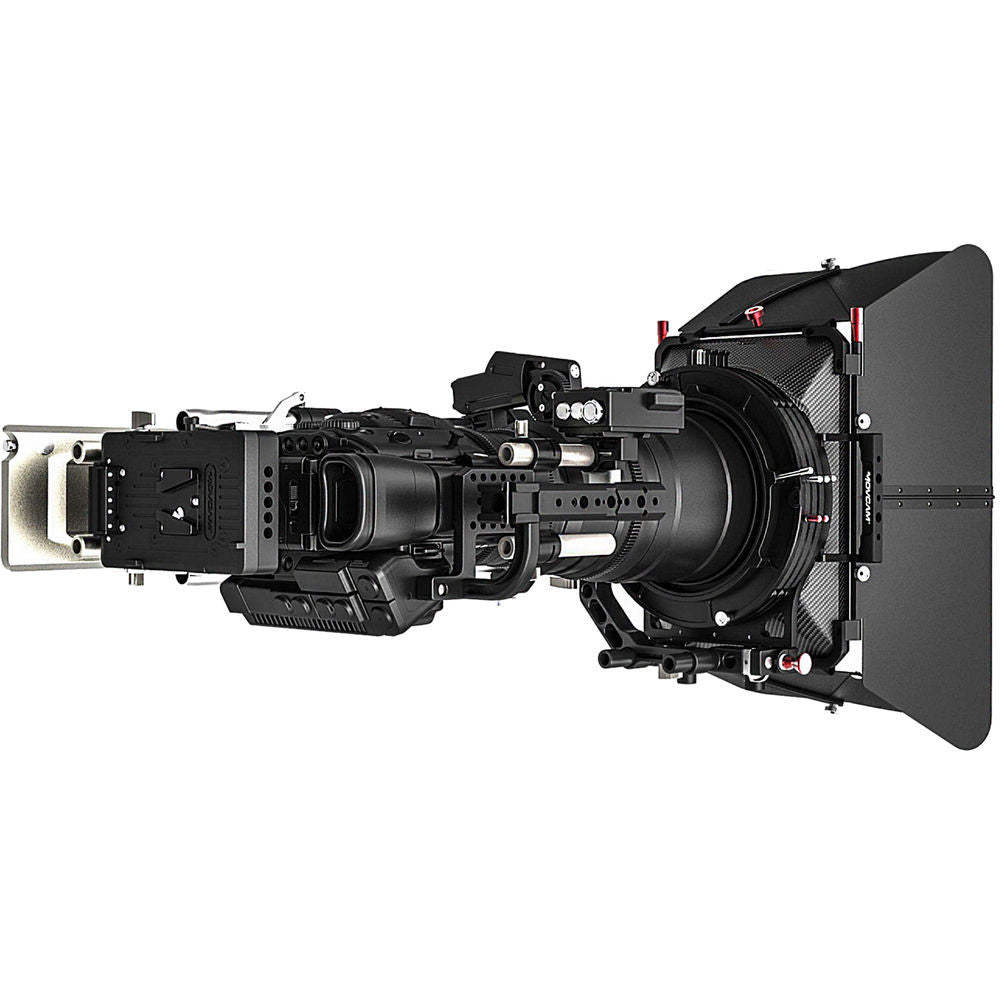

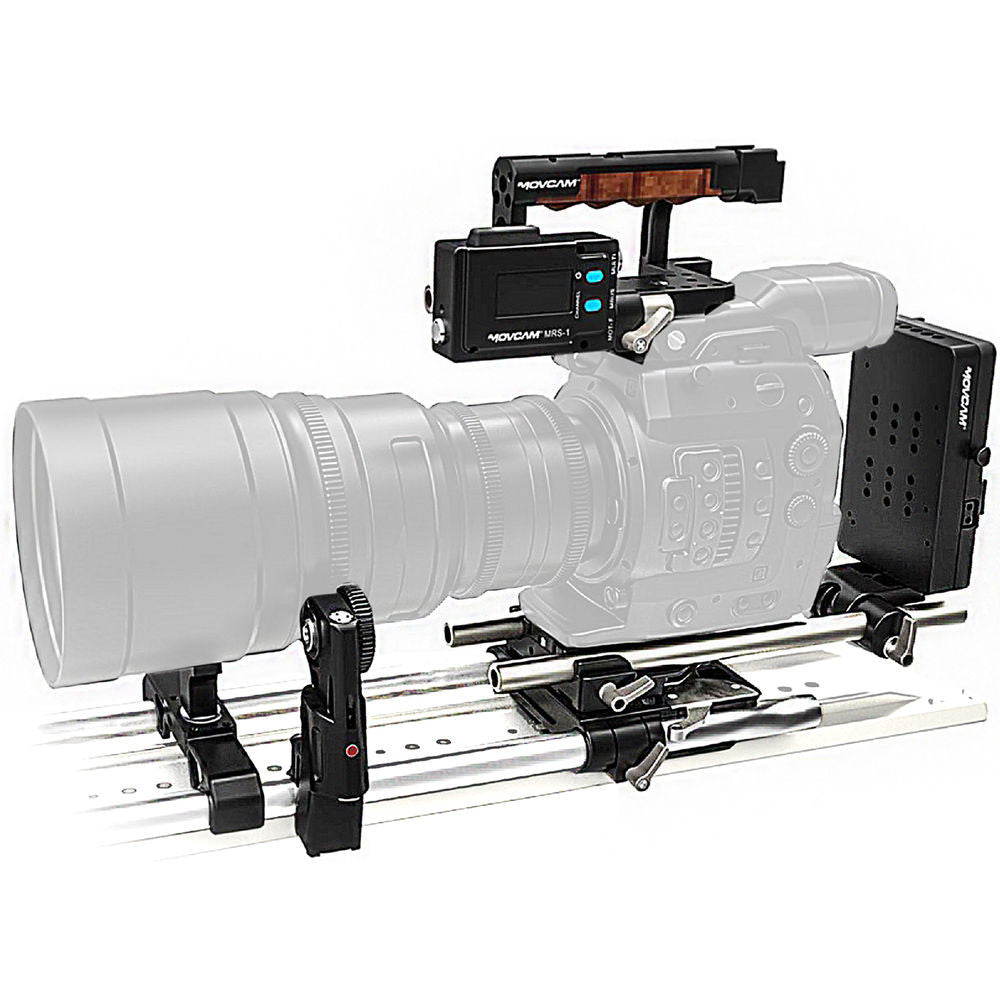

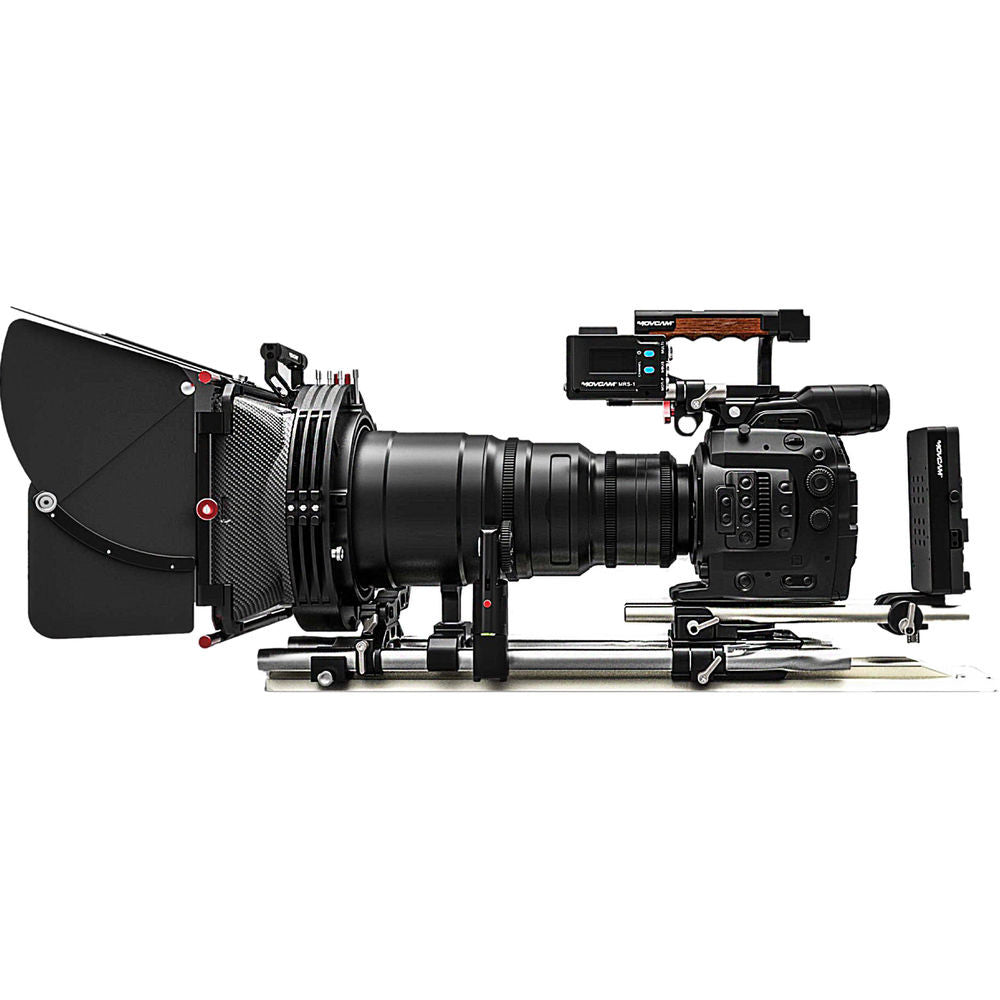

Movcam Canon C300 MKII Cine Kit

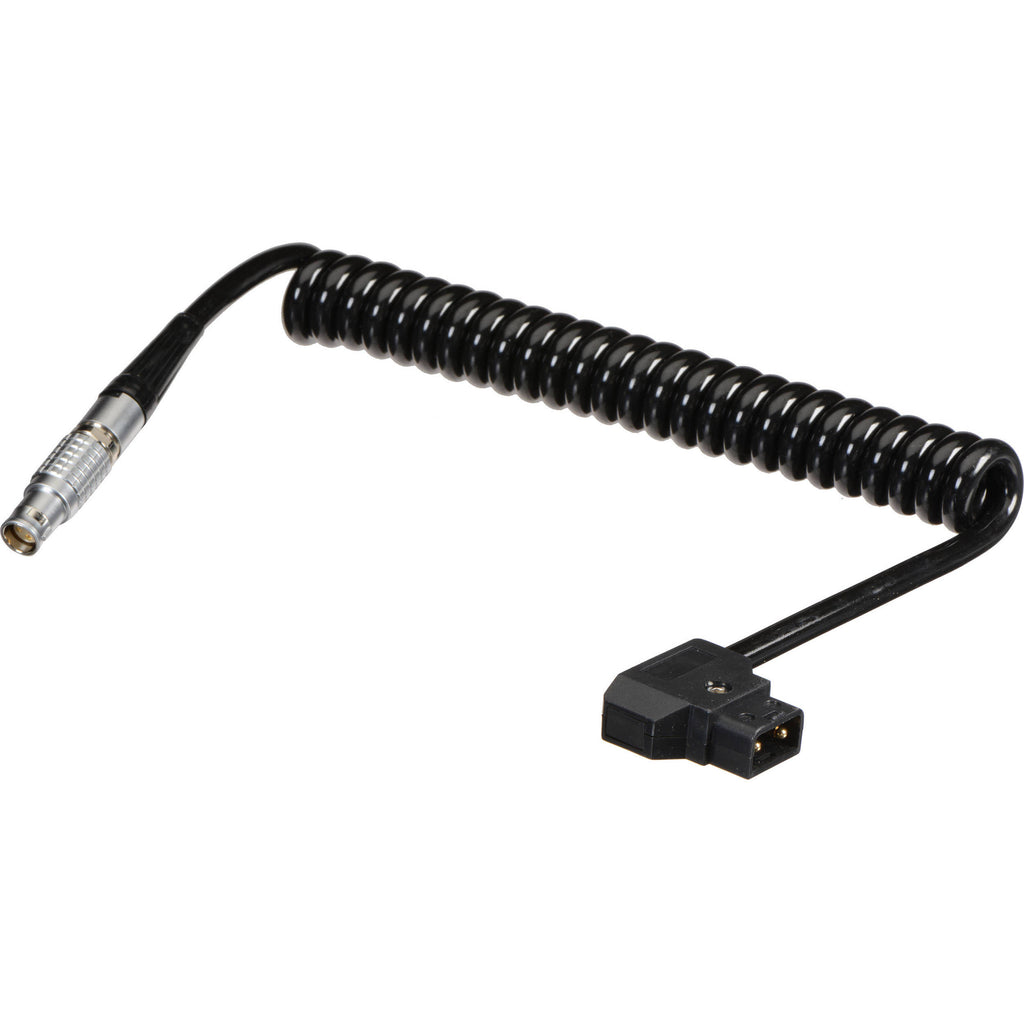

The Movcam Canon C300 MKII Cine Kit  includes the MM5 Matte Box, 1 56:136 Lens Adapter Ring,  C300 MKII Top Handle,  Universal LWS Baseplate,  Canon C100/C300/C300 MKII/C500 Spacer, 19mm Bridgeplate, 19mm Lens Bridge,  V-Mount Battery Distribution Box, 15mm Rod Clamp,  D-Tap to 4-pin LEMO Power Cable,  Single-Channel Wireless Kit,  Canon OEM Grip Relocator Adapter, four  8" Aluminum Rods, and two  4" Aluminum Rods.

The MM5 Matte Box features a 156mm rear opening and is compatible with lenses up to 14mm (35mm academy). The Top Handle for the Canon C300 Mark II is a one-piece helmet and handle assembly that mounts to the top of the Canon C300 Mark II. The Universal Quick Release Baseplate is compatible with ARRI BP8 and BP9 bridgeplates. The Quick Release Camera Spacer from Movcam is designed for mounting the Canon Cinema EOS C-series cameras on their Universal Lightweight Support Baseplate.

The Movcam 19mm Lens Bridge clamps onto 19mm rails to support the weight of a heavy lens. Featuring a male V-Mount adapter on one side and female on the other, the Movcam Distribution Box is designed to sandwich in between a camera's V-Mount plate and a V-Mount battery, providing several output ports for powering devices and accessories. The 15mm Rod Clamp Adapter for MOV-306-0212 and MOV-306-0213 Power Converters attaches to your Movcam Gold Mount or V-Mount Power Converter, allowing you to mount it onto LWS 15mm rods.

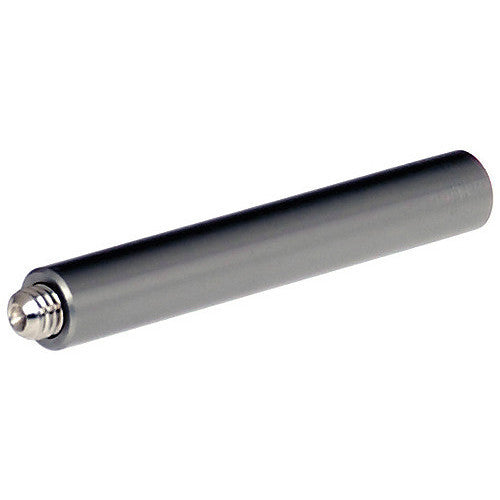

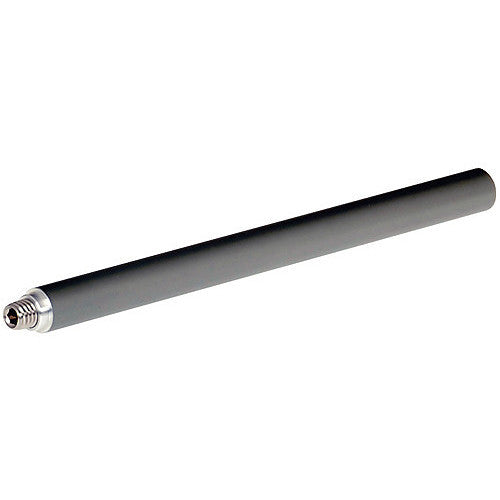

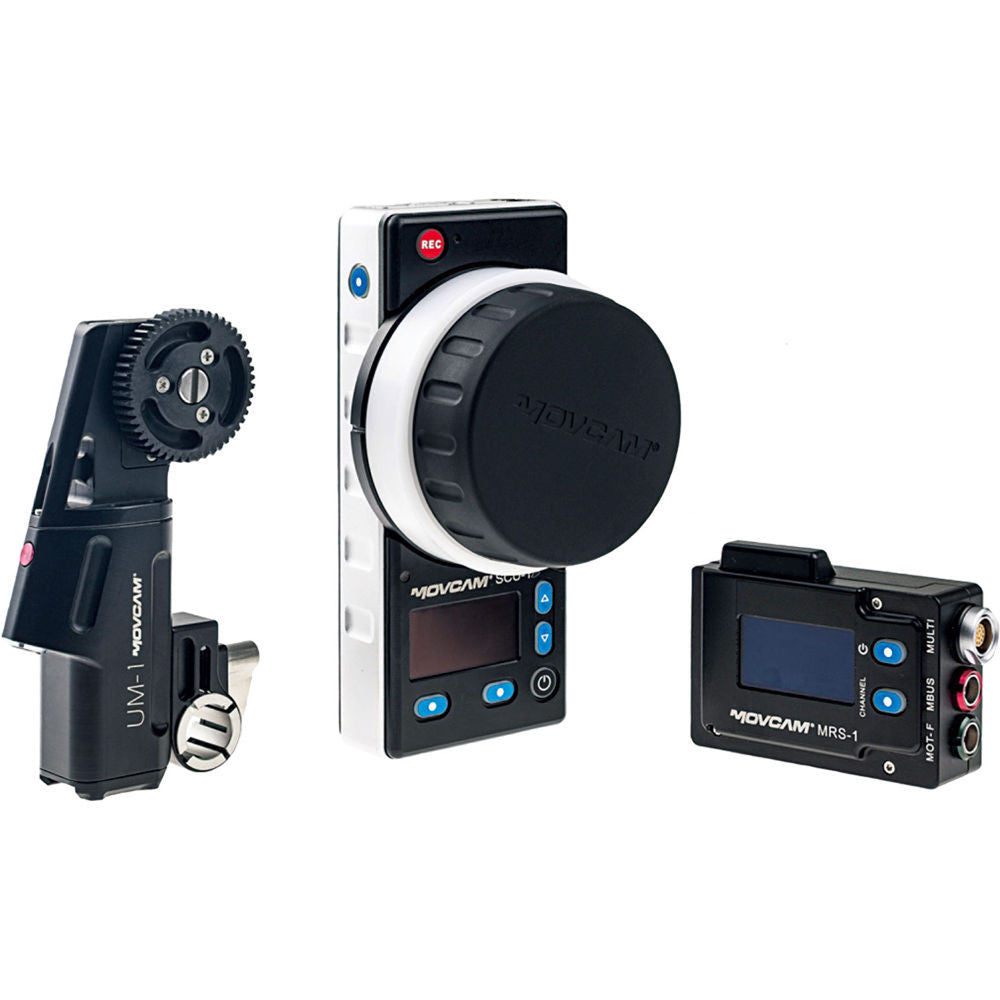

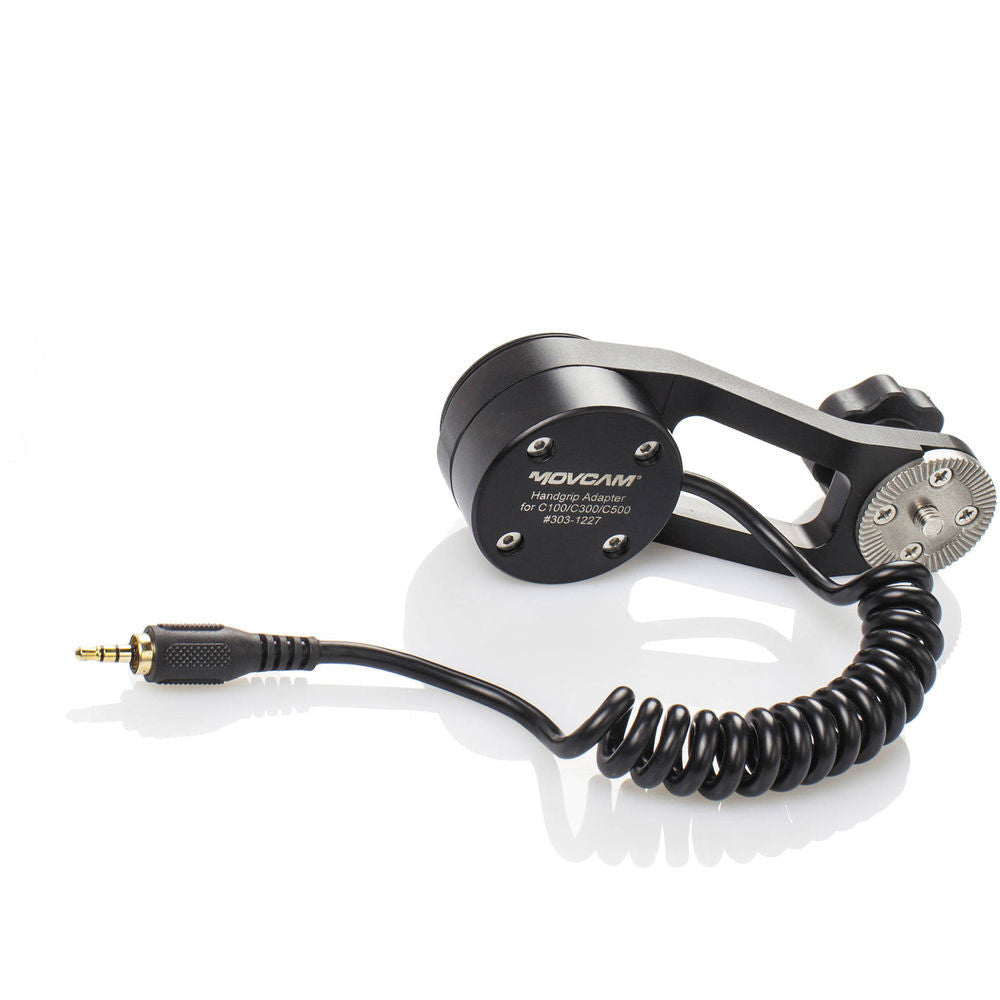

For remote focus control, the Single-Axis Wireless Lens Control System provides either wireless or wired control of your lens. Designed as a modular system, it is available as either a single or dual-axis system, with the single-axis system upgradeable by purchasing additional modules. The Handgrip Adapter allows you to use the original Canon EOS C-series handgrip with your existing rig. Additionally, the kit provides you with four 8" and two 4" 15mm Aluminum Rods.

• 24" Sliding Dovetail Kit with 19mm Bridgeplate System

  The 24" Sliding Dovetail Kit with 19mm Bridgeplate System from Movcam includes two 18� 19mm stainless steel rods, 24� 19mm sliding dovetail, 19mm rod support bracket, and 19mm bridgeplate compatible with the Movcam Universal LWS base plate.

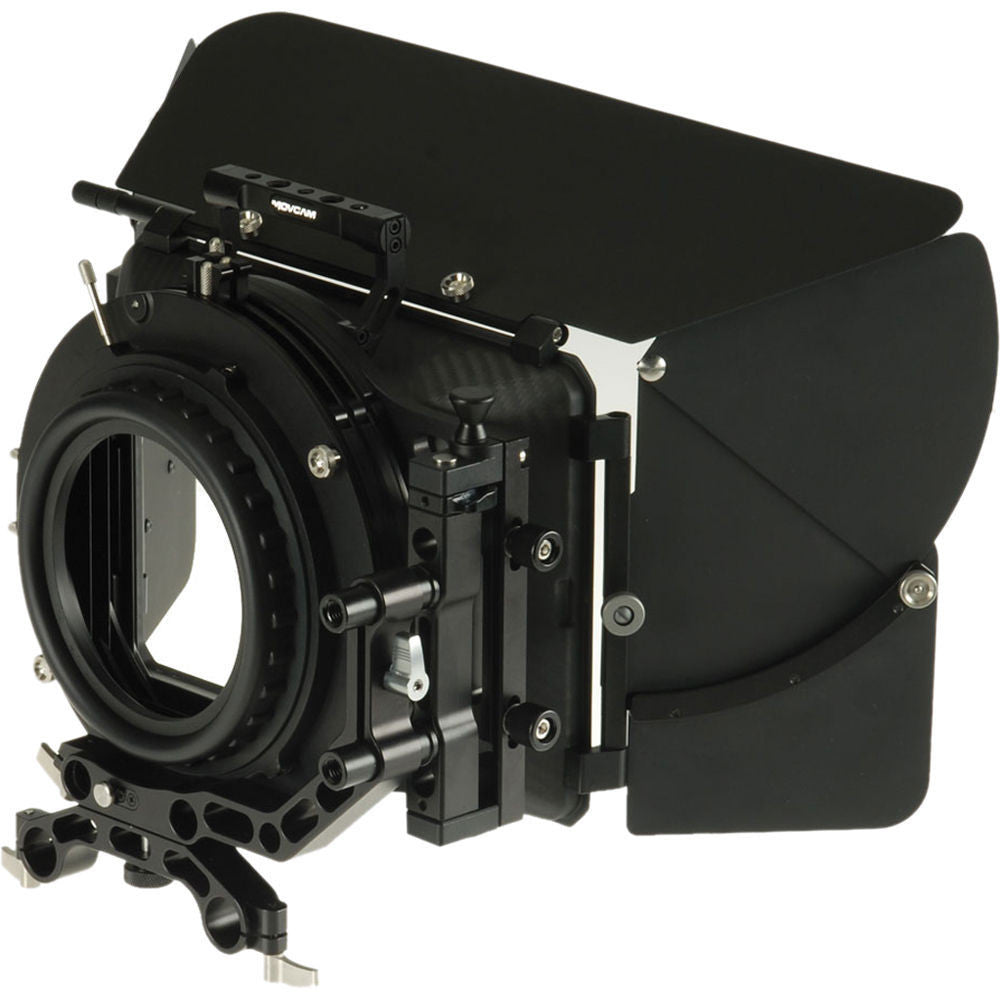

• MOV-301-0205 Mattebox MM5 (2 Rotating Filter Holder)

  The Movcam MOV-301-0205 Mattebox MM5 features a 156mm rear opening and is compatible with lenses up to 14mm (35mm academy).

  It is equipped with a 16:9 carbon fiber housing, a French flag and side wings for light control, one fixed and two rotating 5.65 x 5.65" filter holders, a 15:19mm bridge plate adapter and a 15mm mini swing-away bracket, and with a 156:114 rubber bellows that can optionally be stepped down.

  The swing-away bracket provides industry-standard 15mm rod support and the bridge plate adapter offers 19mm rod support.

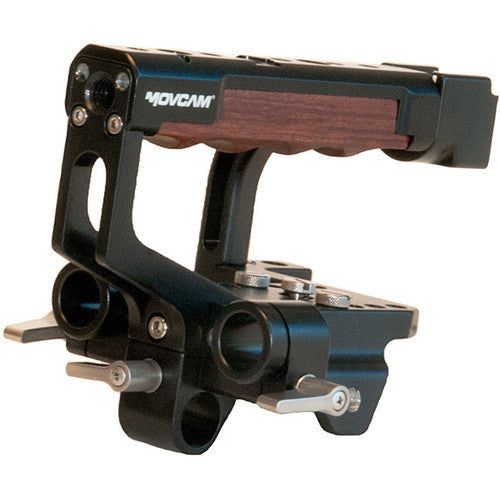

• Top Handle for Canon C300 Mark II

  The Top Handle for Canon C300 Mark II is a one-piece helmet and handle assembly that mounts to the top of the Canon C300 Mark II. In addition to a top handle with wooden grip, the assembly also adds rod ports for attaching a pair of 15mm rods to the top of the camera, as well as a single, perpendicular rod port useful for attaching an optional EVF mount. For mounting additional accessories, there are threaded mounting holes on the helmet plate and top handle, and two shoe mounts located at the back of the handle.

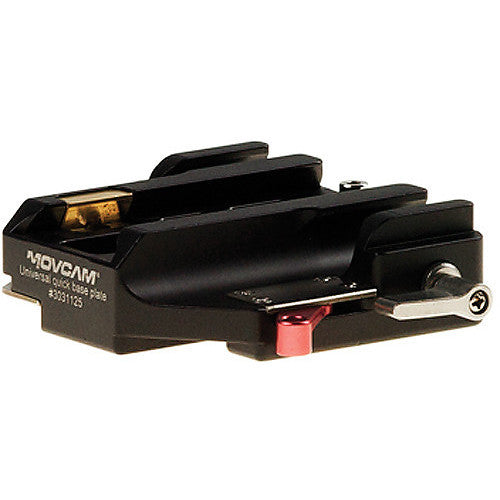

• Universal Quick Release Base Plate

  The Universal Quick Release Base Plate from Movcam is a baseplate compatible with Arri BP8 and Arri BP9 Bridgeplates.

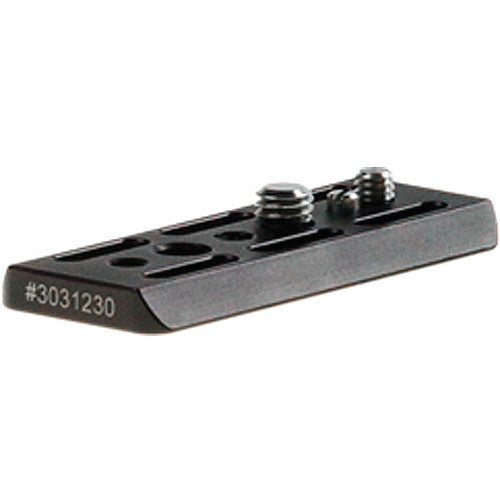

• Quick-Release Spacer for Canon C100/300/500 Cameras

  This  Quick-Release Camera Spacer from Movcam is designed for mounting the Canon Cinema EOS C100/C300/C500 cameras to their Universal Lightweight Support Baseplate. It has the correct camera height to align the lens with accessories such as a matte box and follow focus.

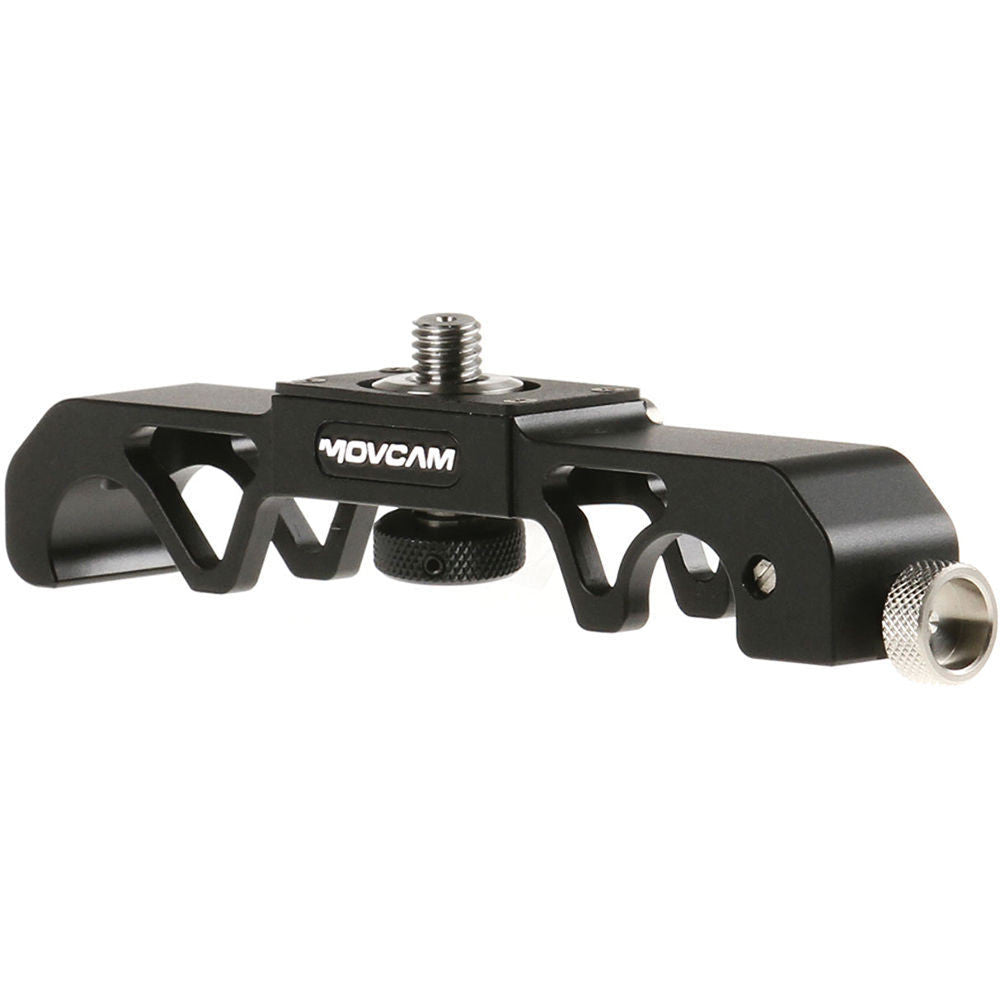

• 19mm Lens Bridge

  The Movcam 19mm Lens Bridge clamps onto 19mm rails to support the weight of a heavy lens. The bridge hooks onto one of the rails and tightens to the other. A 1/4" screw protrudes from the middle of the bridge to support a lens. Many heavy lenses feature a 1/4" thread specifically for this purpose.

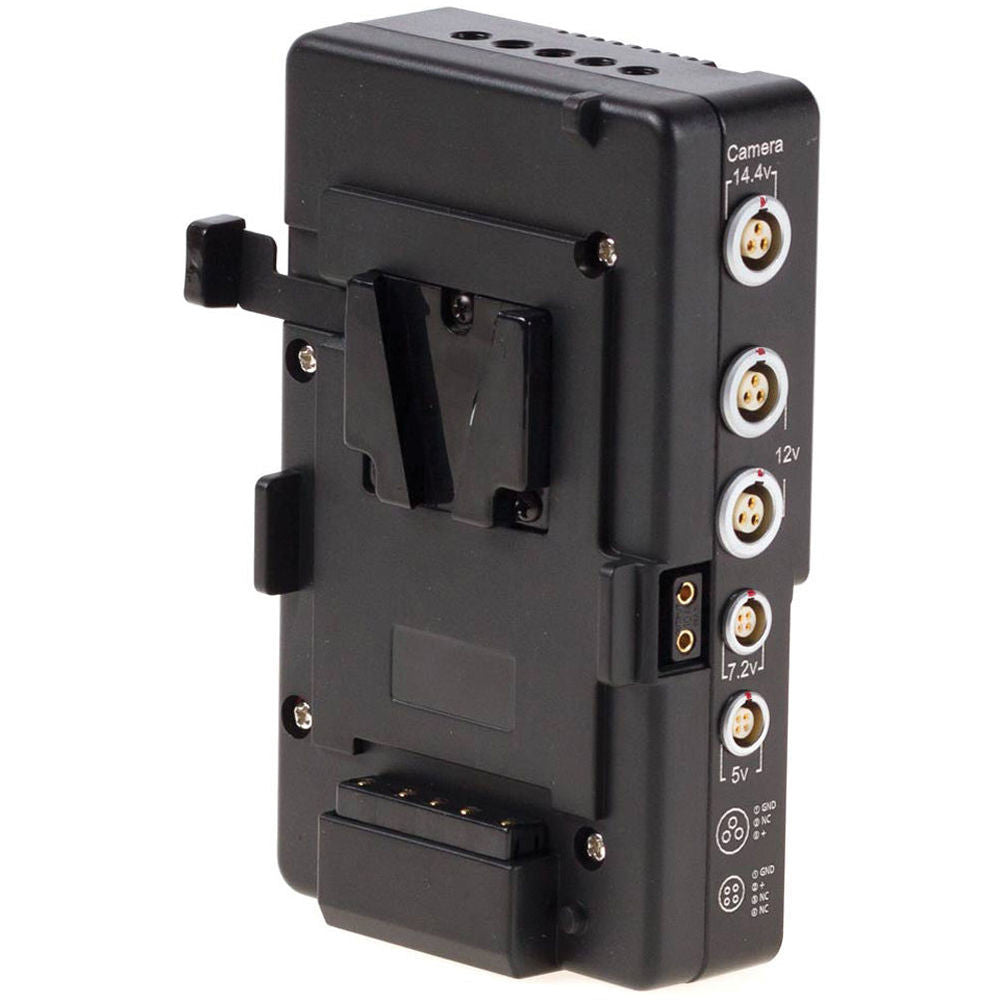

• V-Mount Battery Distribution Box

  Featuring a male V-mount adapter on one side and female on the other, this Movcam Distribution Box is designed to sandwich in between a camera's V-mount and a V-mount battery and to provide several output ports for powering devices and accessories. It can also be used rod-mounted via an optional Movcam 15mm rod bracket (model # MOV-306-0214), which attaches on the bottom and positions the unit upright.

  This power station provides two 3-pin LEMO 12V unregulated outputs, one 3-pin LEMO 14V unregulated output, one 4-pin LEMO 8.5V output, one 4-pin LEMO 5V output, two P-Tap 12V outputs, and a USB 5V output. It also features a 4-pin XLR DC input that allows you to run an external 12V power source instead of a battery.

  This power station can be used with any camera that features a V-mount but also with other camera via adapter plates.

  Connections

  • 2x 3-pin LEMO 12V regulated outputs
  • 3-pin LEMO 14V unregulated output
  • 4-pin LEMO 8.5V output
  • 4-pin LEMO 5V output
  • 2x 12V P-Tap outputs
  • USB 5V output
  • 4-pin XLR DC input for external power

• 2 x 18" 19mm Stainless Steel Rod

• 24" 19mm Sliding Dovetail

• 19mm Rod Support Bracket

• 19mm Bridgeplate

• Limited 1-Year Warranty

• French Flag

• Side Wings

• 15mm Mini Swing-Away Bracket

• 15:19mm Bridge Plate Adapter

• 156:114 Rubber Bellows

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 2-Year Limited Warranty

• Limited 2-Year Warranty

• Limited 1-Year Warranty

• Hand Control Unit

• Receiver Module

• Motor Module

• Motor Cable

• D-Tap Power Cable

• Remote Cable

• Carrying Case

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 2 Year Warranty

• 2 Year Warranty

Also Includes

• 156:136 Lens Adapter Ring [MOV-301-0205-14]
