Description
Movcam MOV-303-3900-AB Overview
- 1Description
- 2Movcam Baseplate for Sony FX9 with Shoulder Pad and VCT-14 Adapter
- 3Movcam Distributor Box for Sony FX9 (Gold Mount)
- 4Movcam Side Bracket for Sony PXW-FX9
- 5Movcam FX9 Top Plate
- 6Movcam Universal LWS Dovetail Plate
- 7Movcam 15mm Aluminum Rod - 8" Long

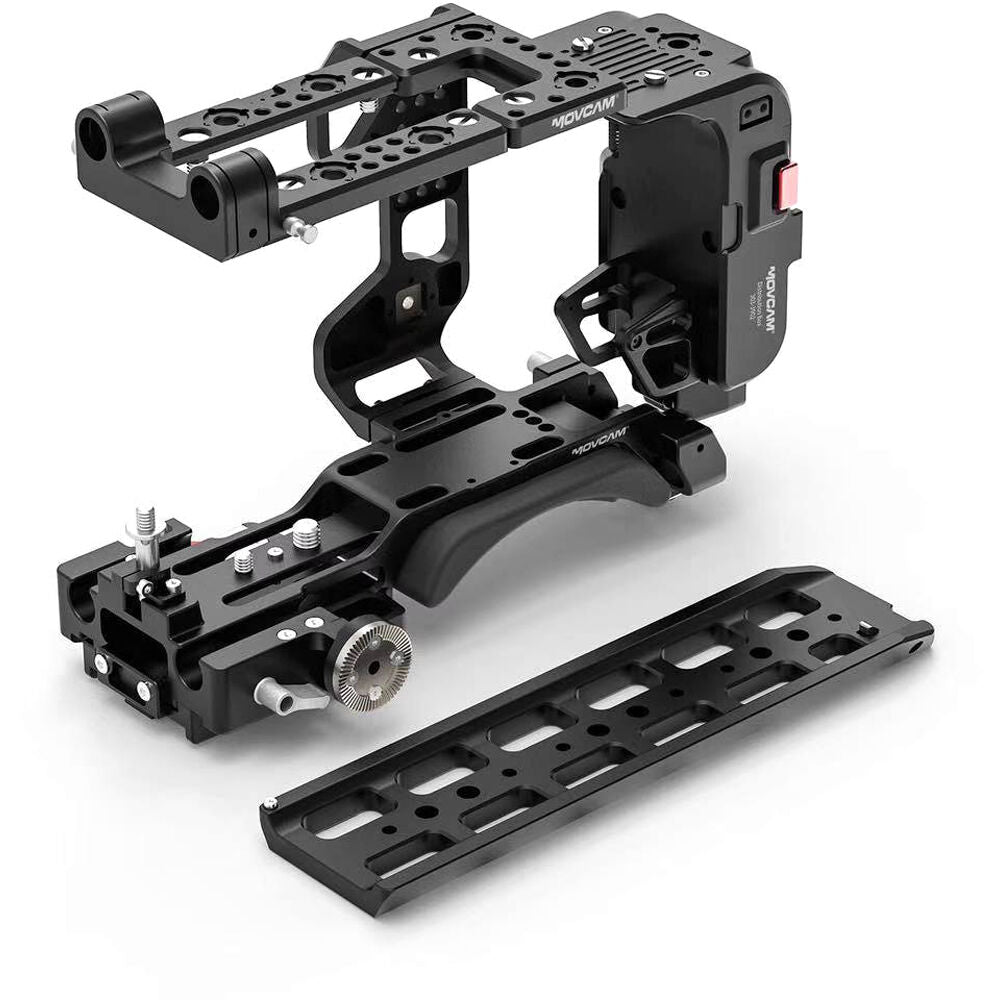

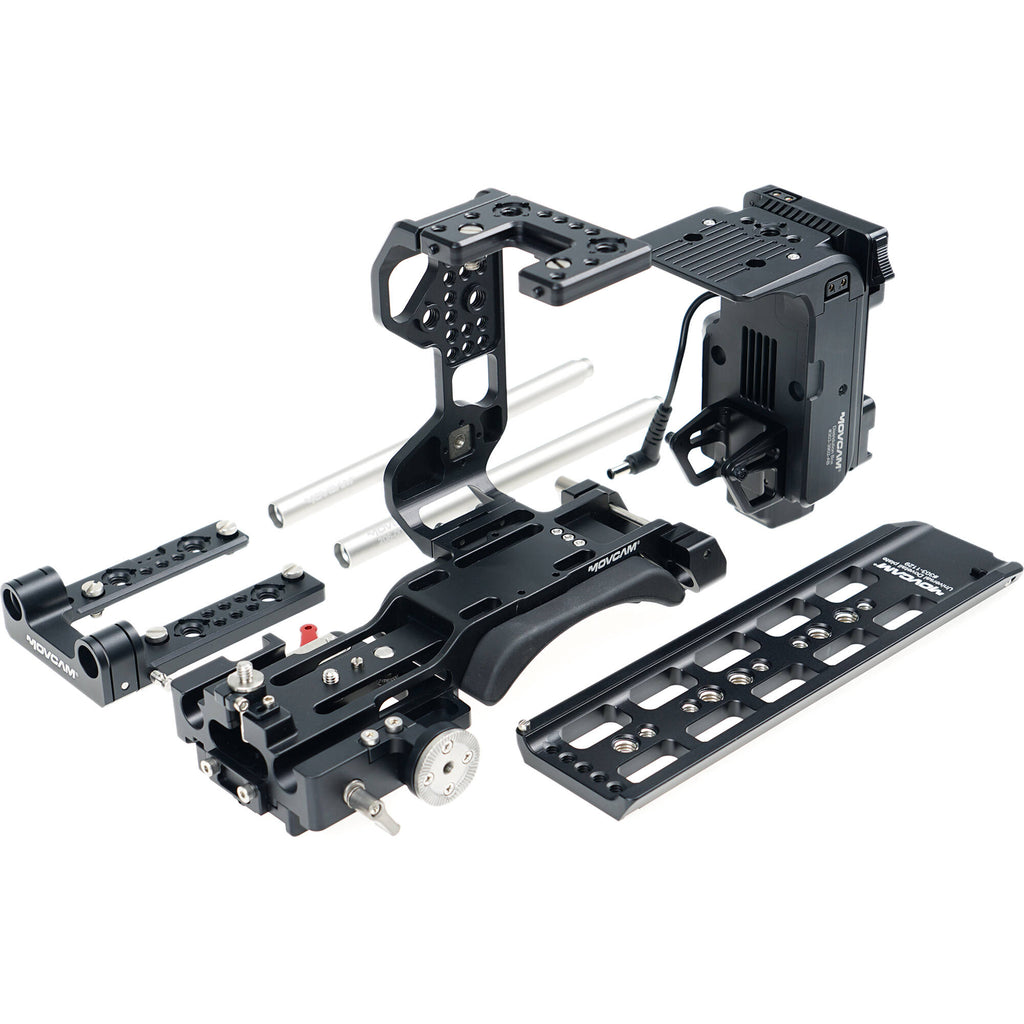

The Gold mount Movcam Base Kit for Sony FX9 includes a shoulder-mount baseplate, power distribution box, top plate, side bracket, 9" dovetail plate, and two 8" 15mm rods. The baseplate features a small VCT-14 adapter plate that supports optional VCT-14 plates, which secure to the front of the baseplate and a hook slot on the rear, behind the shoulder pad. When the compact VCT-14 adapter is removed, the baseplate can be attached directly to the included dovetail plate. The distribution box provides a Gold mount plate, 4-pin XLR input for running power to the camera, and two each D-Tap and 2-pin LEMO connectors for accessories.
The kit offers 15mm LWS rod support on the top, front, and rear, a removable rosette mount for handgrips, and a second rosette on the side bracket for attaching the Sony stock handle closer to the rear of the rig. A lens mount support is provided on the front for 1/4"-20 threaded adapters. Between all the different locations, you also get multiple 1/4"-20 mounting threads and ARRI Accessory Mounts.
Movcam Baseplate for Sony FX9 with Shoulder Pad and VCT-14 Adapter
The Movcam Baseplate for Sony FX9 features an integrated no-play rubber shoulder pad and front and rear 15mm LWS rod support. An included VCT-14 adapter plate attaches to the bottom front to support optional VCT-14 plates, which secure to a hook on the rear rod bracket. When the compact VCT-14 adapter is removed, the baseplate can be attached directly to optional dovetail plates, such as the Movcam Universal Dovetail Plate, for compatibility with ARRI BP-8 bridge plates. A rosette mount for handgrips is provided on the left side and a 1/4"-20 lens screw on the front.
Movcam Distributor Box for Sony FX9 (Gold Mount)
The Gold mount Distributor Box for Sony FX9 from Movcam features both a Gold mount plate and a 4-pin XLR port for powering the camera. Either can be used, as you find most appropriate. Attaching to the back of the camera, the Distributor Box delivers 19.5V to the camera while providing battery data to the EVF. The XLR port delivers 19.5V directly. When using a Gold mount battery, the battery's output is converted to 19.5V.
This Gold mount version of the Distributor Box offers four 12V D-Tap ports, two of them on the battery plate and two on the distribution box. The distribution box also has two 2-pin LEMO 14.4V ports and the above-mentioned 4-pin XLR input, which is on the bottom rear of the unit, right under the battery plate.
Movcam Side Bracket for Sony PXW-FX9
Add a side plate to your Sony PXW-FX9 camera for mounting accessories with this Side Bracket from MOVCAM. The plate mounts directly onto the camera using the included captive screws, and it wraps around the side and the top.
It features multiple 1/4"-20 and 3/8"-16 ARRI-style anti-twist accessory mounts to add a variety of accessories such as extension arms, a top handle, a monitor mount, a microphone, or a light. There is also an ARRI-style rosette on the side to add a rosette accessory or relocate the original FX9 handgrip toward the rear of the camera.
Compatibility
Also compatible with but not limited to:
MOVCAM 303-3901 baseplate
Movcam FX9 Top Plate
The Movcam FX9 Top Plate mounts onto the top of your Sony FX9 camera and works with your camera's top handle. The Top Plate features numerous 1/4"-20 and 3/8"-16 threaded accessory mounting holes. The 3/8"-16 threaded mounting holes feature ARRI-compatible anti-twist divots, so you can use ARRI anti-twist compatible accessories, as well as standard 1/4"-20 or 3/8"-16 threaded accessories. An integrated 15mm rod clamp enables mounting 15mm rods to the top of your camera, above the the lens port for mounting accessories such as an optional EVF, monitor, or lens accessories.
Captive mounting screws simplify attaching and removing the plate as you need, withough worrying about misplacing the mounting screws. In addition to the accessory mounting holes, the plate is also machined to accept the clamp that secures the LCD viewfinder monitor cable. The plate is drilled and tapped to accept your camera's sensor plane marking pin, for accurately measuring by tape.
Movcam Universal LWS Dovetail Plate
The Movcam Universal LWS Dovetail Plate is a baseplate compatible with Arri BP8 and Arri BP9 Bridgeplates.
Movcam 15mm Aluminum Rod - 8" Long
The 15mm Aluminum Rod - 8" (203.2mm) Long from Movcam is a single rod made of aluminum and is 8" (203.2mm) in length.
In the Box
- Movcam Baseplate for Sony FX9 with Shoulder Pad and VCT-14 Adapter
- VCT-14 Adapter Plate
- Limited 1-Year Warranty
- Movcam Distributor Box for Sony FX9 (Gold Mount)
- 2 x Attachment Screw
- Limited 1-Year Warranty
- Movcam Side Bracket for Sony PXW-FX9
- Mounting Screw Set
- Limited 1-Year Warranty
- Movcam FX9 Top Plate
- Limited 1-Year Warranty
- Movcam Universal LWS Dovetail Plate
- Limited 1-Year Warranty
- 2 x Movcam 15mm Aluminum Rod - 8" Long
- Limited 2-Year Warranty
- Description
- Movcam Baseplate for Sony FX9 with Shoulder Pad and VCT-14 Adapter
- Movcam Distributor Box for Sony FX9 (Gold Mount)
- Movcam Side Bracket for Sony PXW-FX9
- Movcam FX9 Top Plate
- Movcam Universal LWS Dovetail Plate
- Movcam 15mm Aluminum Rod - 8" Long
Movcam Baseplate for Sony FX9 with Shoulder Pad and VCT-14 Adapter Specs
| Support Type | Baseplate, Shoulder Support |
| Grip Type | None |
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Battery Plate Type | None |
| Accessory Mounting | Not Specified by Manufacturer |
| Rod Ports | Front: 2 x 15 mm Rod Port Rear: 2 x 15 mm Rod Port |
| Shoe Mounting | None |
| Rosettes | 1 x ARRI Rosette w/ M6 Thread |
| Dimensions | Not Specified by Manufacturer |
| Weight | Not Specified by Manufacturer |
| Package Weight | 1.96 lb |
| Box Dimensions (LxWxH) | 11.8 x 8.1 x 2.85" |
Movcam Distributor Box for Sony FX9 (Gold Mount) Specs
| Power Input |
4-Pin XLR: 19.5 VDC Gold Mount: 19.5 VDC |
| Power Output | D-Tap: 12 VDC 2-Pin LEMO: 14.4 VDC |
| Camera Power Method | Battery Plate Mount Type, Connector |
| Connectors | 4 x D-Tap 2 x 2-Pin LEMO 1 x 4-Pin XLR |
| Plate Front / Battery Mount | Gold Mount |
| Material of Construction | Aluminum |
| Package Weight | 1.31 lb |
| Box Dimensions (LxWxH) | 9.65 x 7.95 x 3.8" |
Movcam Side Bracket for Sony PXW-FX9 Specs
| Mounting | Multiple 1/4"-20 Threads Multiple 3/8"-16 ARRI-Style Accessory Mounts 1 x ARRI-Style Rosette |
| Package Weight | 0.475 lb |
| Box Dimensions (LxWxH) | 8.15 x 8.1 x 3.05" |
Movcam FX9 Top Plate Specs
| Accessory Mounting Threads | 9 x 1/4"-20 4 x 3/8"-16 with ARRI Anti-Twist Divots |
| Rod Clamp Type | 15mm |
| Package Weight | 0.35 lb |
| Box Dimensions (LxWxH) | 6.15 x 4.3 x 1.2" |
Movcam Universal LWS Dovetail Plate Specs
| Compatibility | Arri BP8 and Arri BP9 Bridgeplates |
| Dimensions | 10.0 x 2.6 x 0.5" (256 x 68 x 14 mm) |
| Weight | 0.5 lb (0.25 kg) |
| Package Weight | 0.65 lb |
| Box Dimensions (LxWxH) | 10.6 x 4.1 x 1" |
Movcam 15mm Aluminum Rod - 8" Long Specs
| Material | Aluminum |
| Rod Diameter | 15 mm |
| Rod Length | 8" (203.2 mm) |
| Package Weight | 0.15 lb |
| Box Dimensions (LxWxH) | 9 x 1 x 1" |
