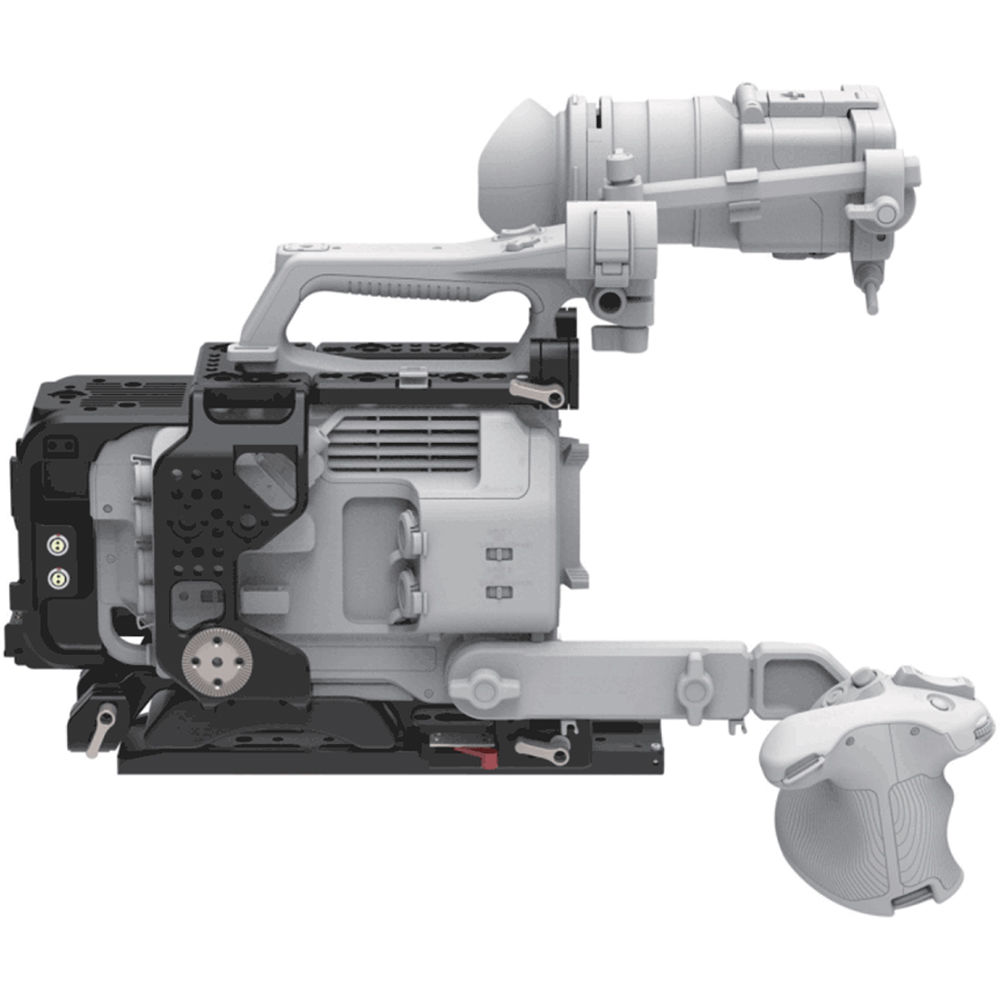

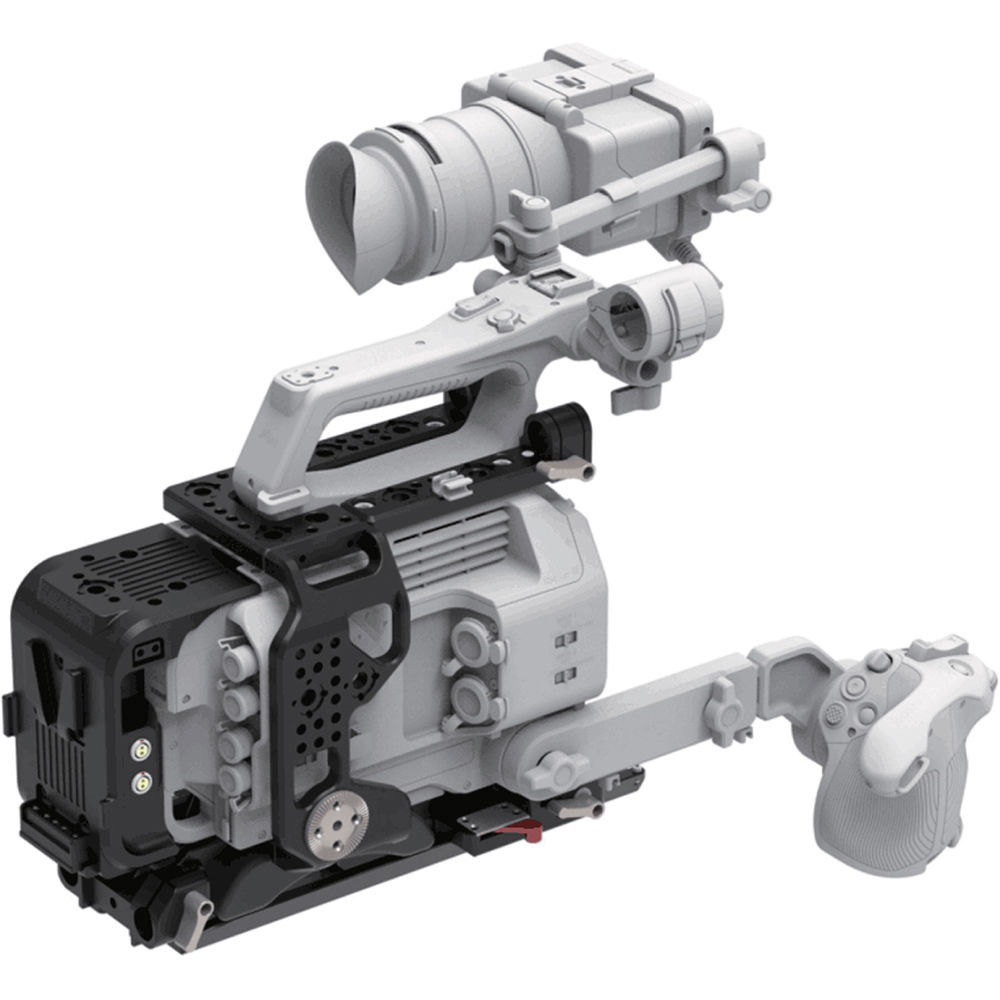

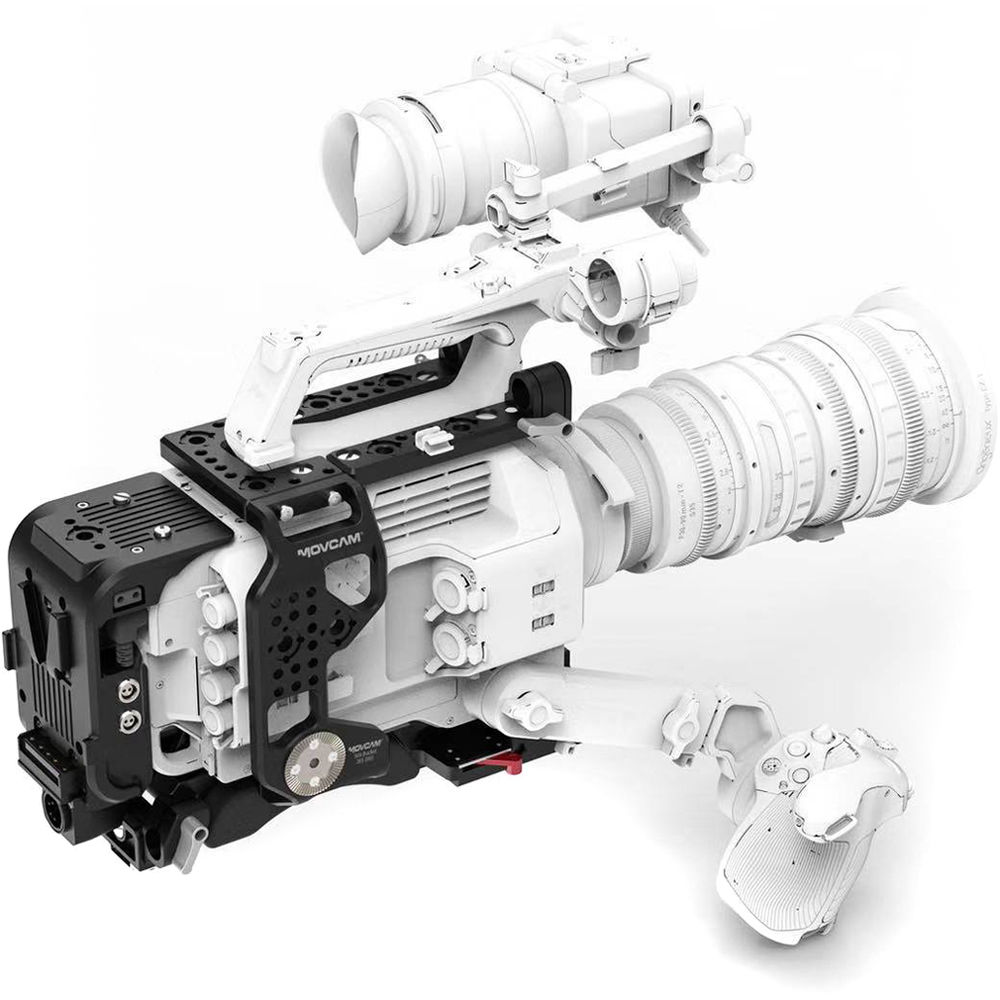

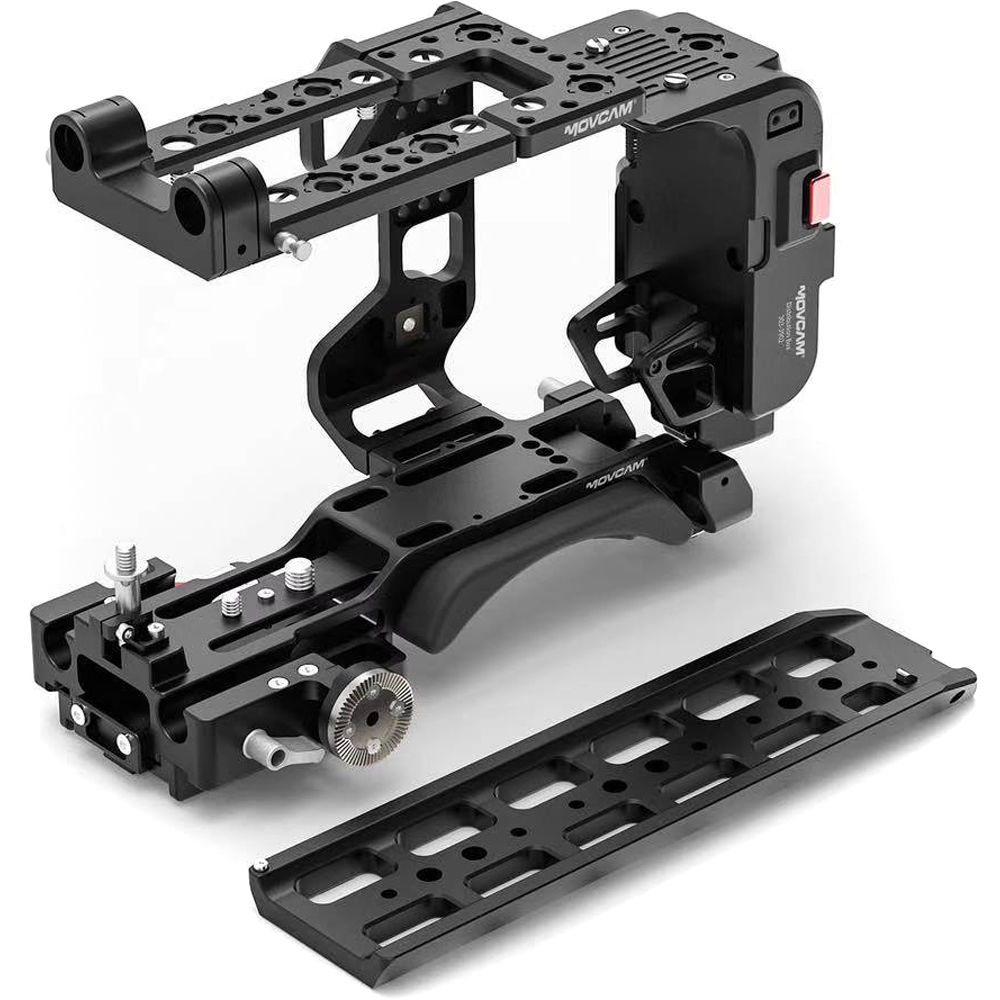

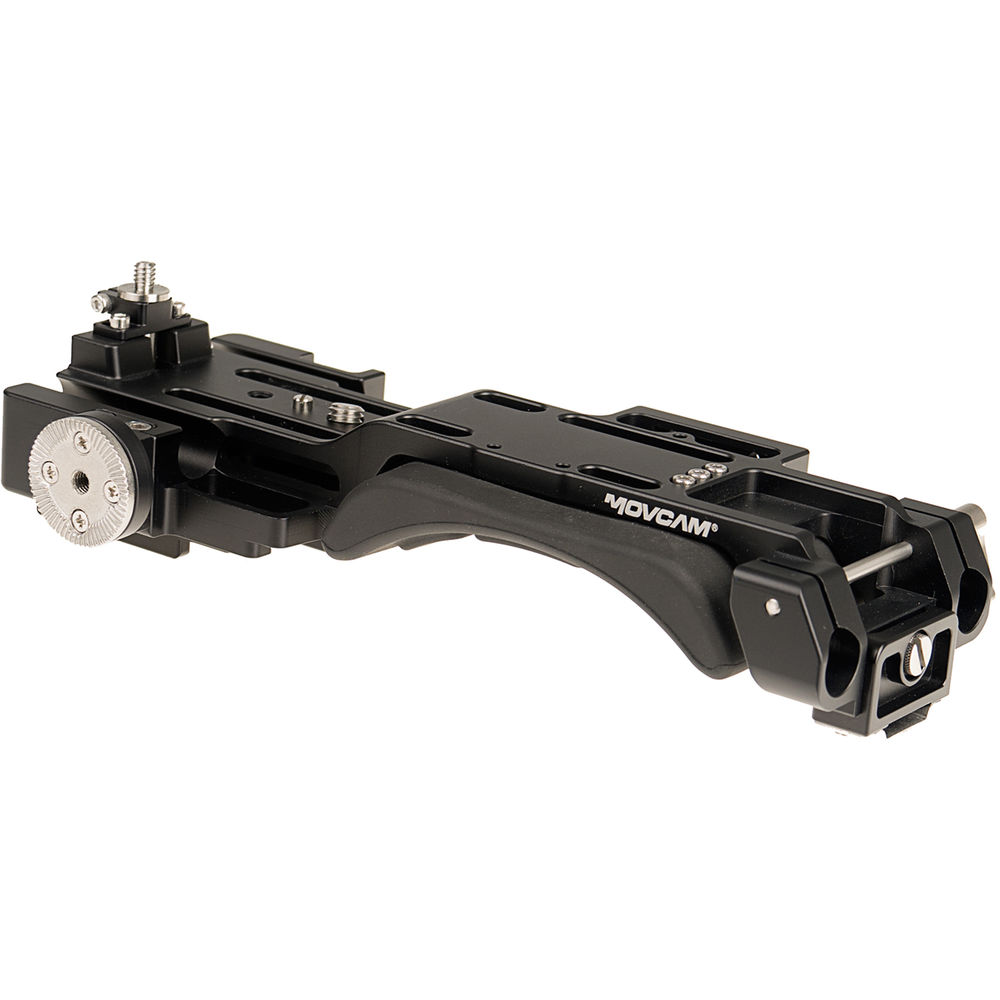

Shoulder Mount Rig with Distribution BoxV-Mount Plate & XLR/D-Tap/LEMO OutputsRemovable VCT-14 Plate & Dovetail PlateFront, Rear & Top 15mm LWS Rod Support The Movcam Base Kit for Sony FX9 is a shoulder-mounted system with a power distribution box. It includes a compact VCT-14 adapter plate and a universal 9" dovetail plate, to be used interchangeably. The VCT-14 plate secures to the front of the rig and interacts with a hook slot located on the rear, behind the shoulder pad. The Base Kit provides front, rear, and top 15mm LWS rod support for attaching a follow focus, matte box, EVF, and other accessories. It also offers a removable rosette mount for handgrips on the left side, plus a second rosette mount on a side bracket for attaching a stock Sony stock handle closer to the rear of the rig. A lens mount support is provided on the front for 1/4"-20 threaded adapters.

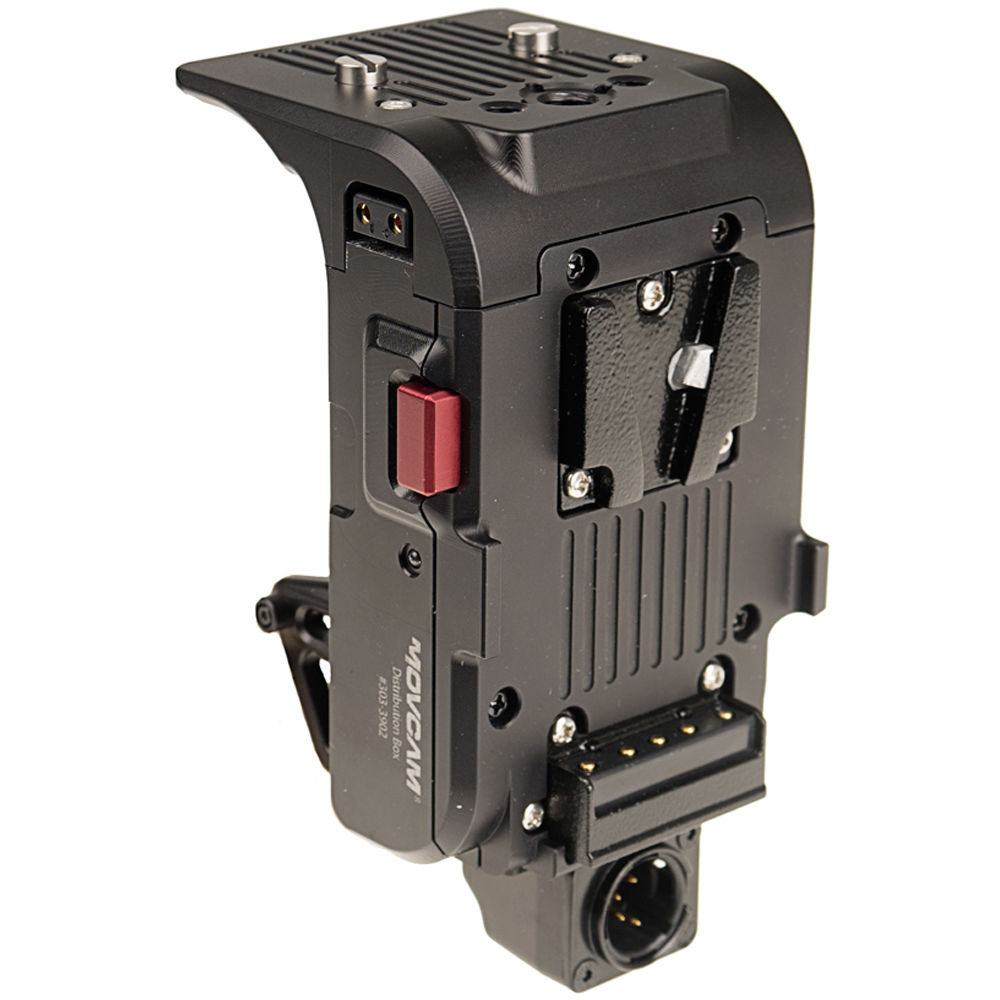

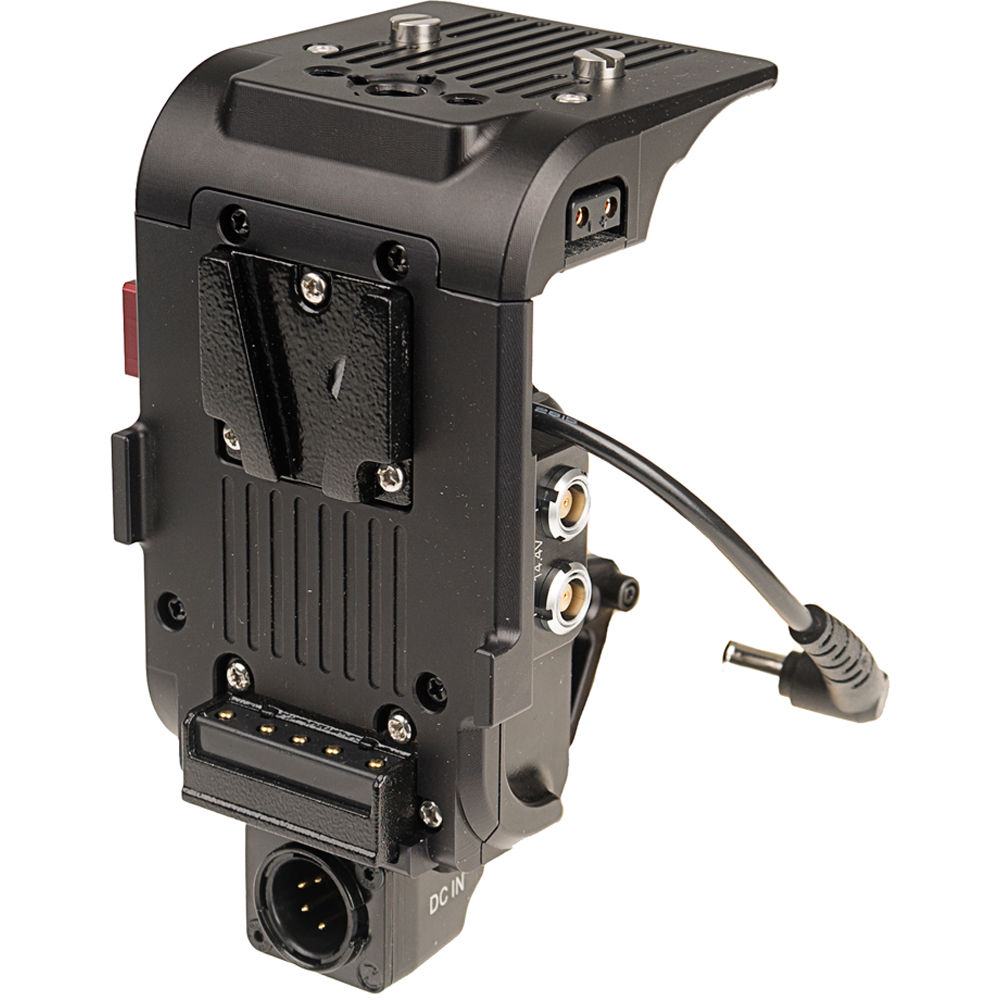

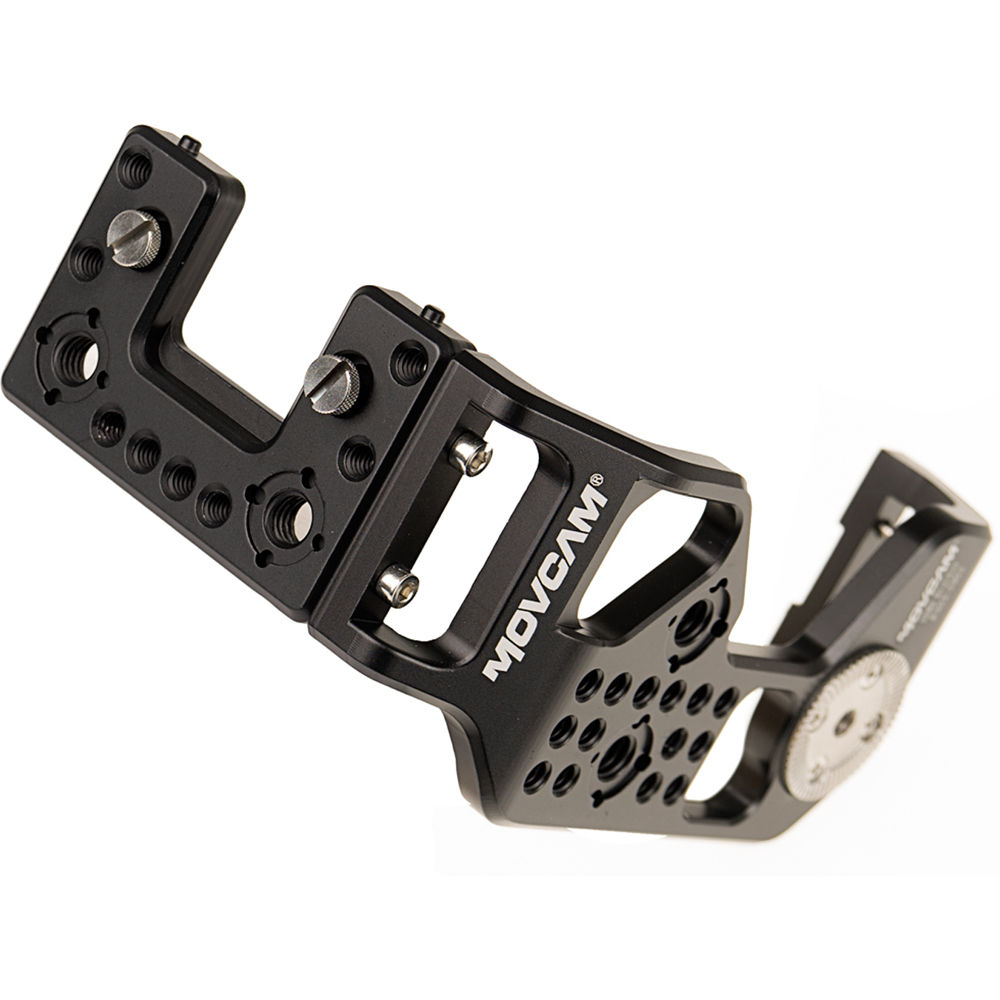

The top plate, side bracket, and top of the distribution box offer 1/4"-20 mounting threads and ARRI Accessory Mounts for accessories. The distribution box provides a V-mount battery plate and 4-pin XLR output port for running power to the camera, and it additionally has two D-Tap and two 2-pin LEMO connectors for powering accessories in a comprehensive workflow.
Key Features
- Distribution box with a V-mount plate, 4-pin XLR DC output, two D-Tap ports, and two 2-pin LEMO connectors
- Removable VCT-14 adapter plate

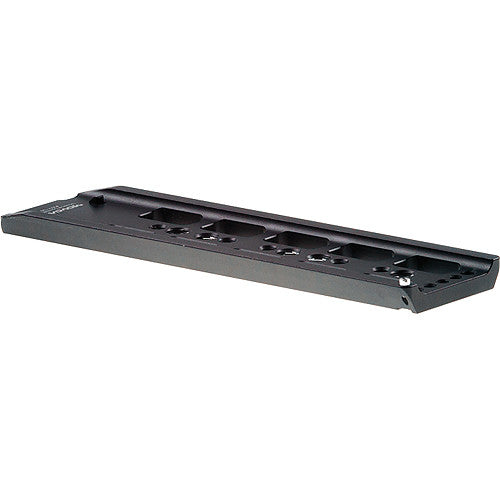

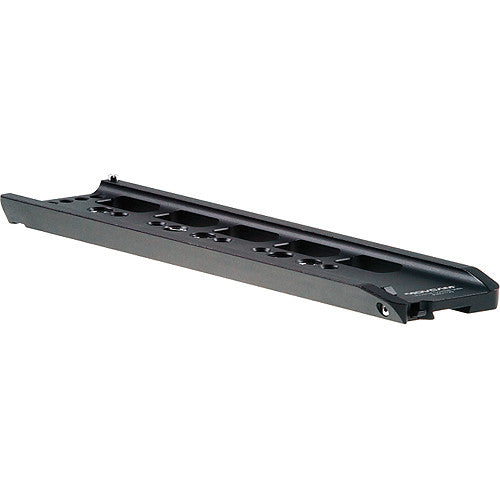

- Universal 9" dovetail plate

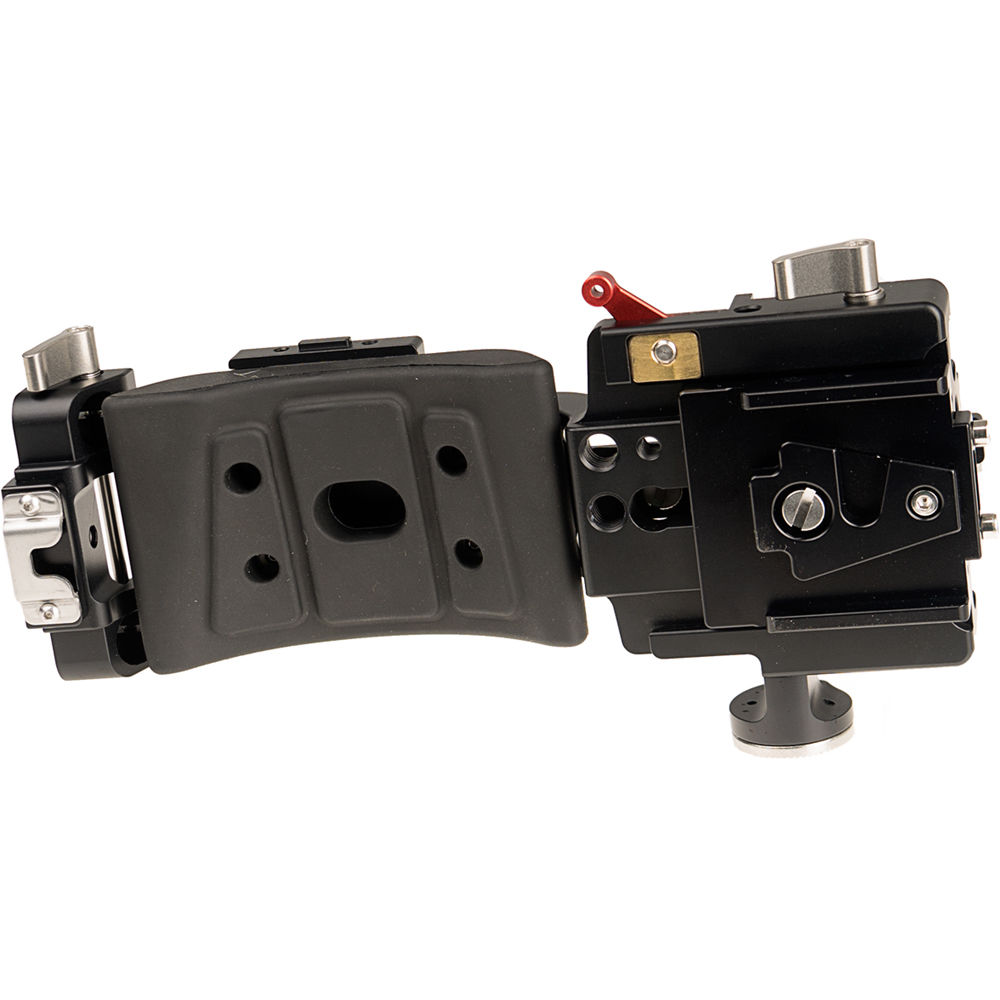

- Rubber shoulder pad
- Front, rear, and top 15mm LWS rod support
- Removable rosette mount
- Side bracket rosette mount
- Lens support for 1/4"-20 threaded adapters
- 1/4"-20 mounting threads and ARRI Accessory Mounts
| Support Type | Baseplate, Cage, Rod Support System, Shoulder Support |
| Grip Type | Grip Required (Not Included) |
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Battery Plate Type | V-Mount |
| Accessory Mounting | Multiple x 1/4"-20 Thread, Multiple x ARRI Anti-Twist 3/8"-16 Thread |
| Tripod Mounting | ARRI Dovetail, VCT-14 |
| Shoe Mounting | None |
| Rosettes | 2 x ARRI Rosette w/ M6 Thread |
| Dimensions | Not Specified by Manufacturer |
| Weight | Not Specified by Manufacturer |
| Package Weight | 5.44 lb |
| Box Dimensions (LxWxH) | 13.8 x 9.4 x 7" |
In the Box
- Movcam Base Kit for Sony FX9

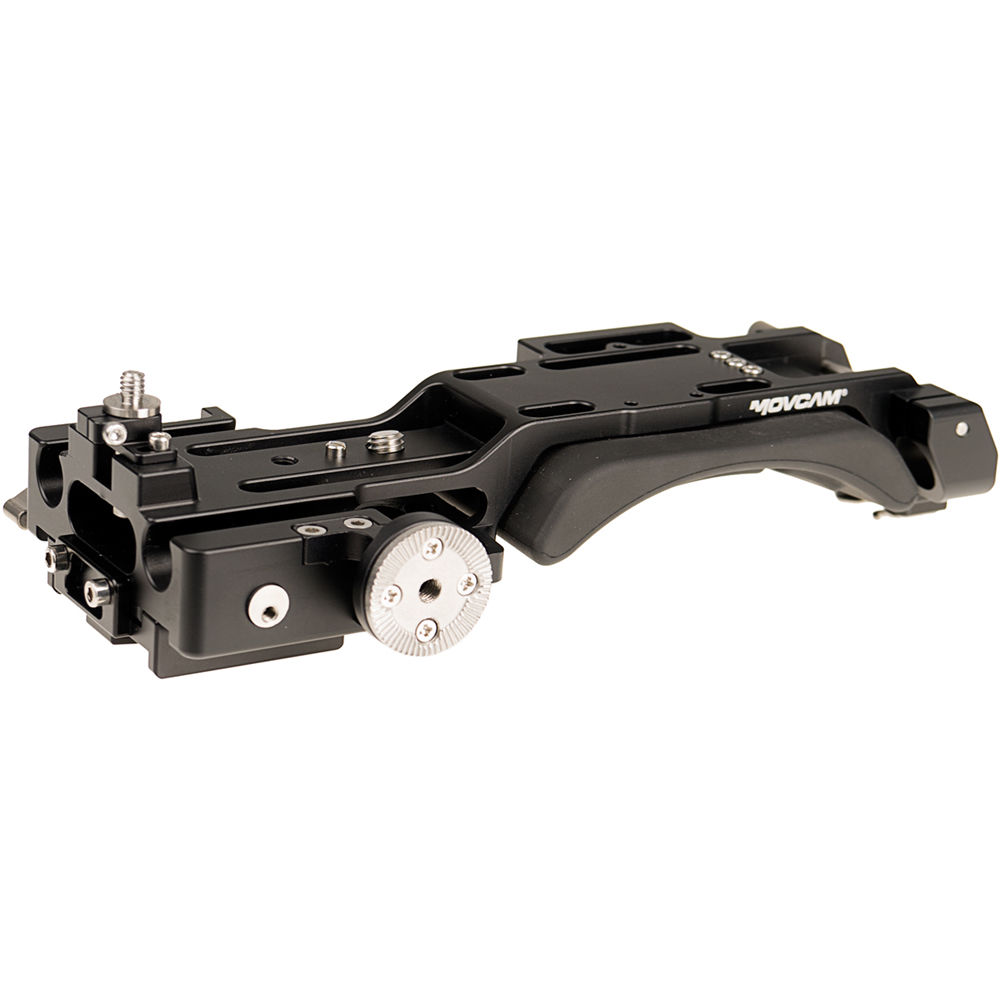

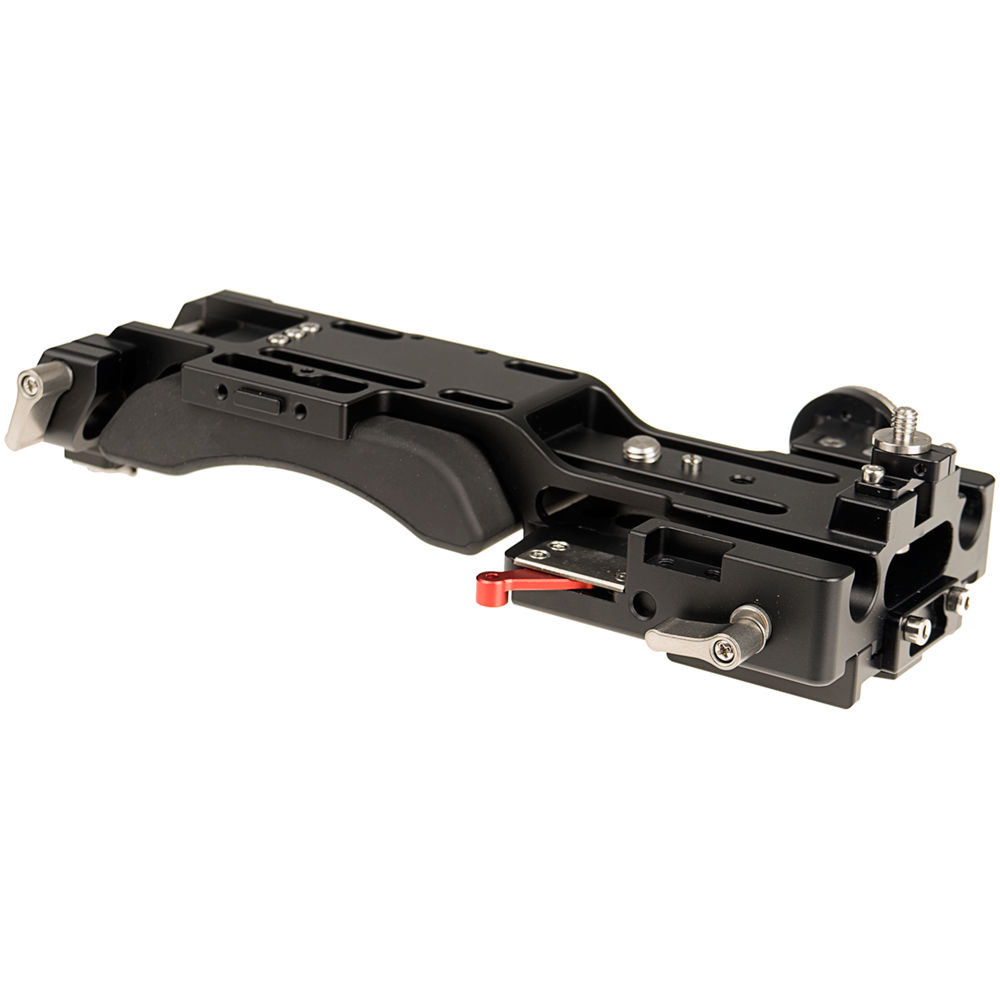

- Baseplate

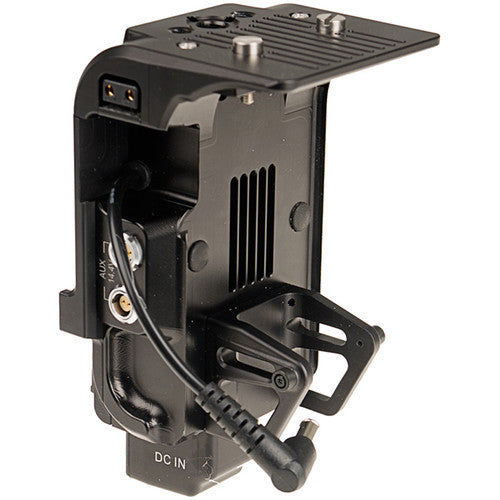

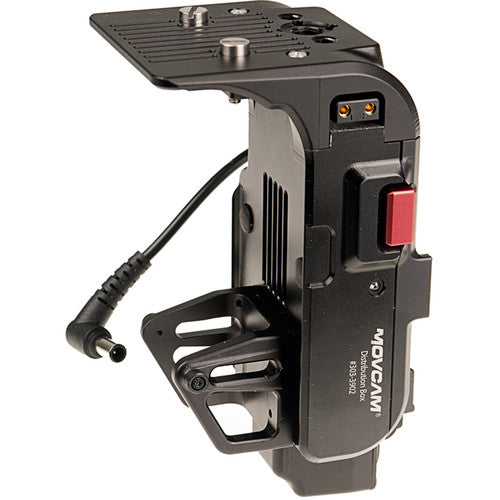

- Distribution Box

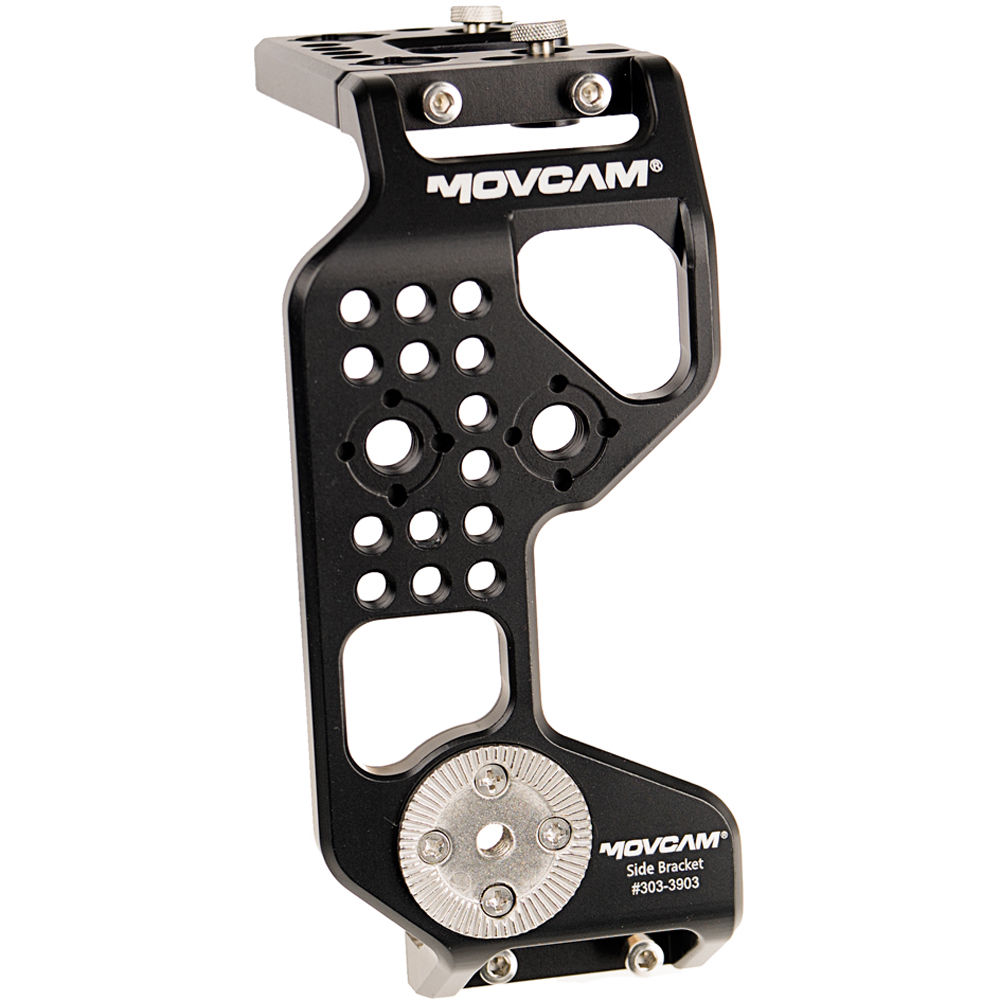

- Side Bracket

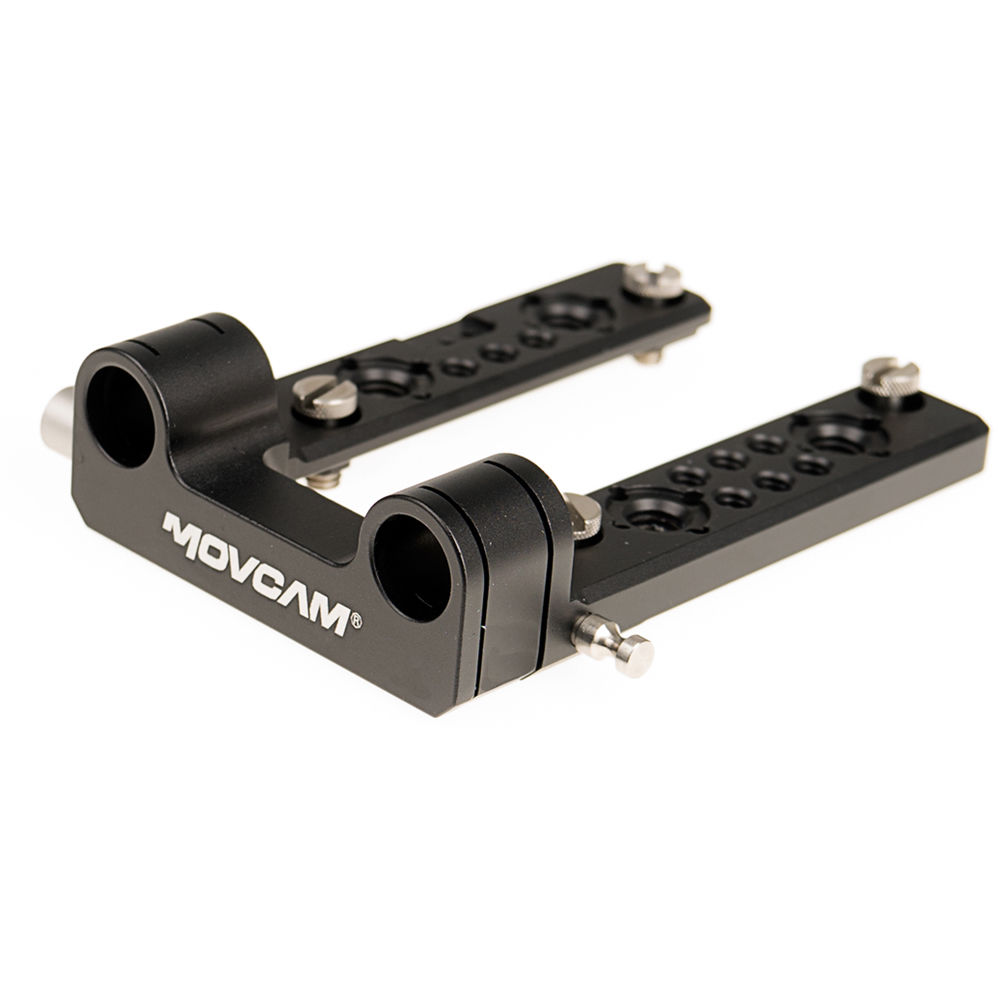

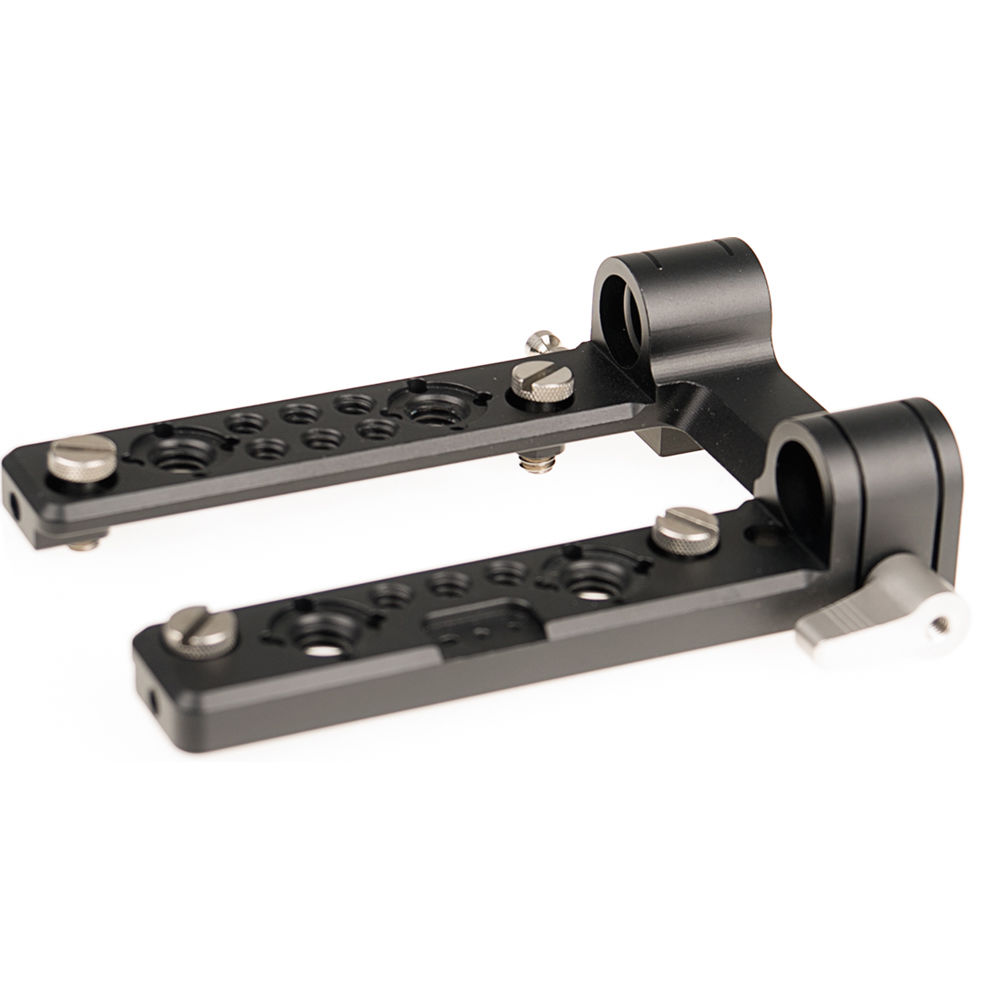

- Top Plate

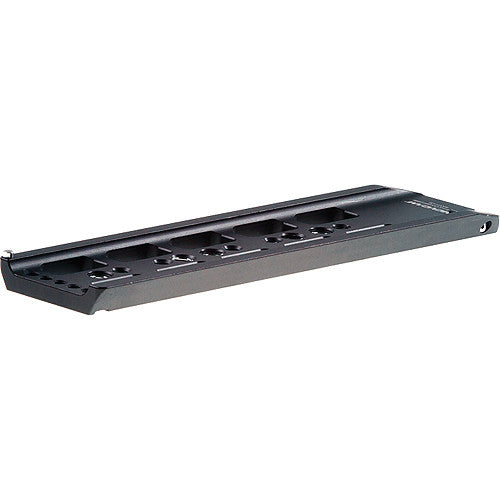

- Movcam Universal LWS Dovetail Plate
- Limited 1-Year Warranty
