Description
MOTU ULTRALITE MK5 Overview
- 1Description
- 2UltraLite-mk5 Vs UltraLite-mk4
- 3Sound
- 4Versatility
- 5Connectivity
- 6USB Class Compliance
- 7Live Streaming
- 8Ready for the Road
- 9Included Software
Raising the bar above the previous generation of UltraLite, the MOTU UltraLite-mk5 desktop 18x22 USB Type-C audio/MIDI interface provides a slew of enhancements inside and out, from its fresh appearance and simplified operation to updated DACs and improved analog performance. With its flexible connectivity, generous software bundle, virtual loopback function, and host-based or standalone use, the UltraLite-mk5 is equally advantageous for musicians, producers, podcasters, and content creators.
The mic preamps on the UltraLite now deliver up to +74 dB of gain, more than enough to get a robust recording level even from low-output dynamic mics. The two combo inputs can also accept line/instrument sources while the six rear-panel 1/4" inputs are dedicated for line-level sources. Thanks to the 10 DC-coupled line outputs and stereo headphone out, the interface can easily feed speakers, cans, and outboard gear. Plus, 10 channels of digital audio I/O and traditional MIDI I/O are present, should you need to integrate the UltraLite-mk5 with more complex setups.
UltraLite-mk5 Vs UltraLite-mk4
In addition to its freshened look and feel, the UltraLite-mk5 features updated ESS DACs, an ESS-driven headphone out, improved analog performance, simplified operation, USB Type-C connectivity, and new software and drivers.
Sound
The UltraLite-mk5 includes renowned ESS Sabre32 DAC technology, featuring the ES9026PRO DAC, to deliver measured 125 dB dynamic range and -114 dB THD+N along with high-resolution support up to 24-bit / 192 kHz. Renowned drivers deliver rock-solid performance and industry-leading low latency.
Versatility
Flexible XLR/TRS combo jacks let you plug in mics, guitars, and/or line inputs. Add individual 48V phantom power if needed, adjust level with trim and pad, and start recording. Apply reverb, EQ, and compression to the mix in your headphones, to the recorded tracks, or both.
The headphone output mirrors the main outs, but it can also mirror any other output pair. You can even create your own independent headphone mix. Push the volume knob to control main out volume.

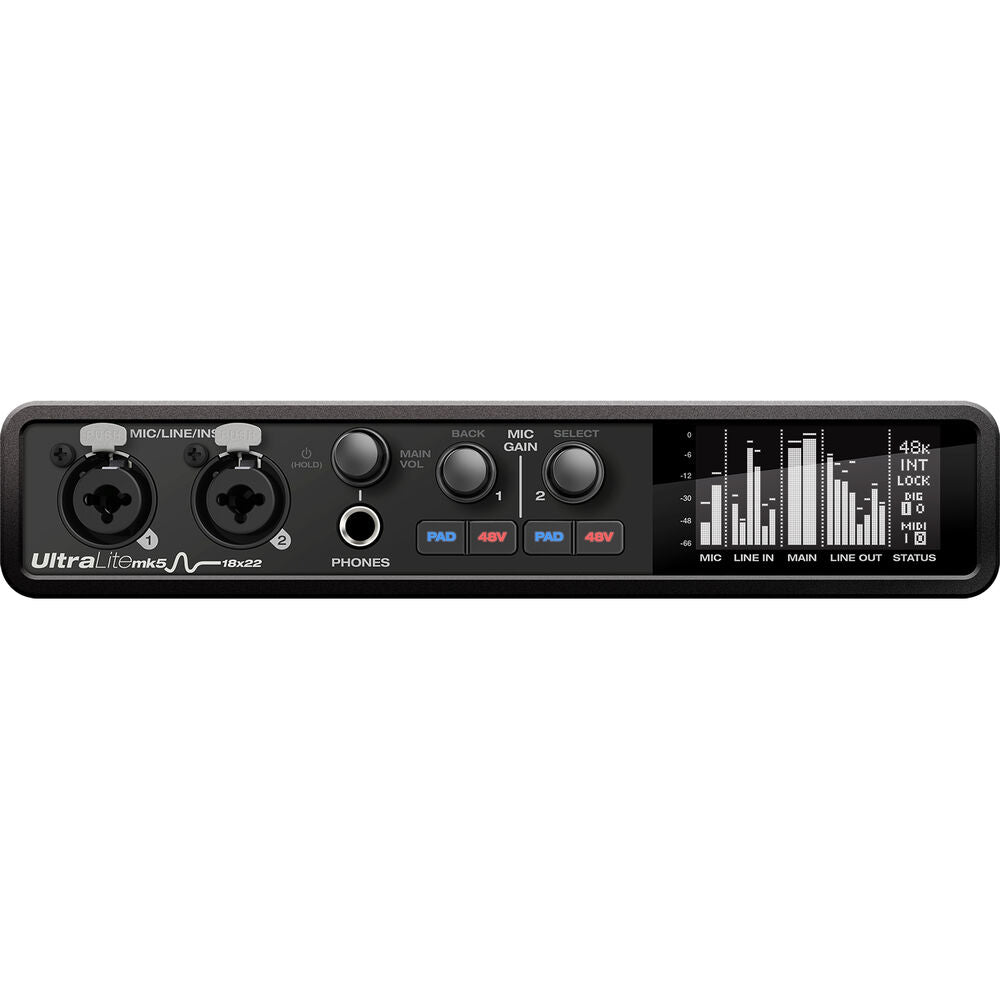

Each mic input has +74 dB of independent preamp gain, a -20 dB pad, and 48V phantom power for condenser mics. Use the rotary encoders for quick access to basic settings from the front panel.
The bright, crisp, high-resolution OLED provides long-throw metering for all analog I/O, plus activity indicators for digital audio and MIDI I/O.
The headphone output mirrors the main outs, but it can also mirror any other output pair. You can even create your own independent headphone mix. Push the volume knob to control main out volume.
Each mic input has +74 dB of independent preamp gain, a -20 dB pad, and 48V phantom power for condenser mics. Use the rotary encoders for quick access to basic settings from the front panel.
The bright, crisp, high-resolution OLED provides long-throw metering for all analog I/O, plus activity indicators for digital audio and MIDI I/O.
Connectivity

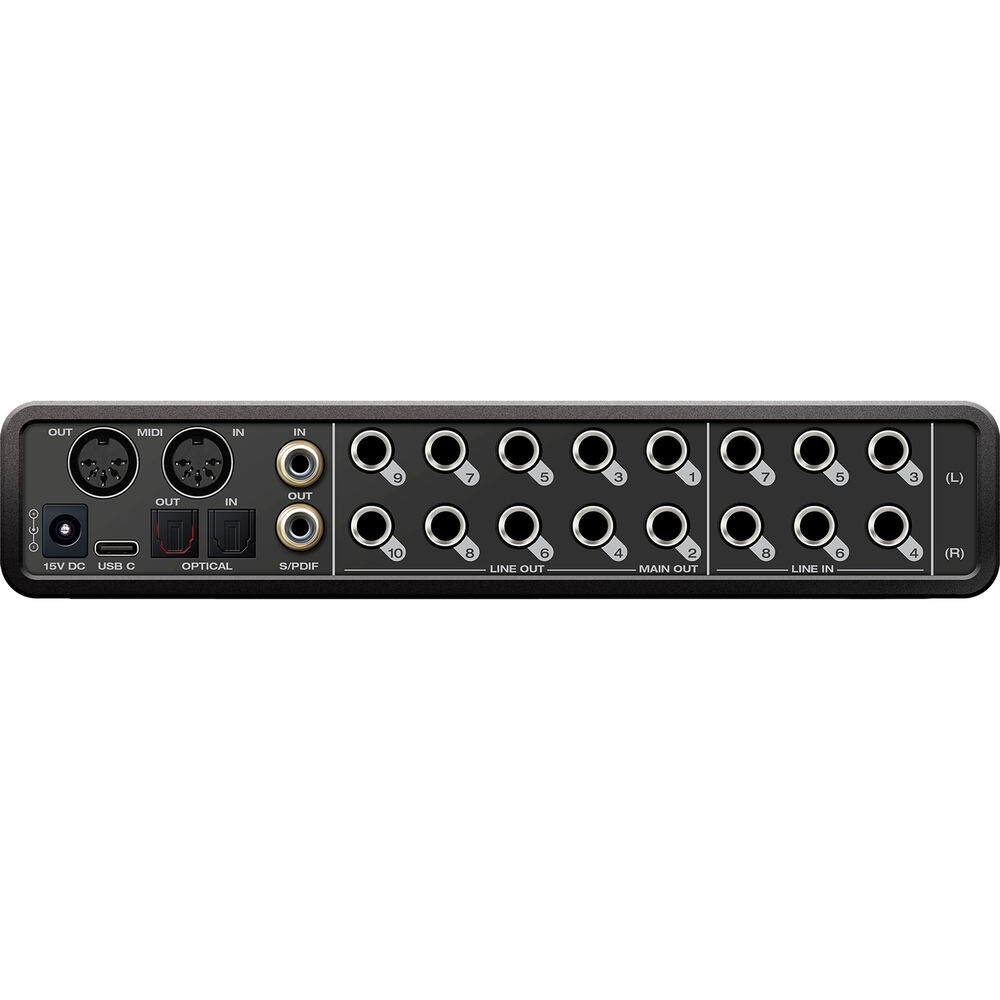

As an interface or mixer, the UltraLite-mk5 provides 18 inputs and 22 outputs, for a total of 40 simultaneous, independent I/O channels. You get two mic/line/instrument inputs on XLR-1/4" combo jacks, six 1/4" TRS balanced line inputs, 10 DC-coupled 1/4" TRS balanced line outputs, a 1/4" front-panel headphone out, stereo coaxial S/PDIF I/O, and 8-channel optical I/O. The optical ports alternatively support stereo TOSLINK (optical S/PDIF). Traditional 5-pin MIDI input and output ports are also provided.
USB Class Compliance
The UltraLite-mk5 is USB audio class compliant, giving you plug-and-play compatibility with iPad and other Apple iOS devices. Record on-the-go, directly to your iPad, or play backing tracks during a gig, mixed with your live inputs with the UltraLite-mk5's built-in mixing. Control everything from the CueMix 5 mixing app on your iPad. The interface has a USB Type-C port and is compatible with USB Type-A. Mac and Windows drivers are available for low-latency operations (2.4 ms roundtrip latency). The external power supply ensures stable operation whether you use the UltraLite-mk5 standalone or with a host.
Live Streaming
The UltraLite-mk5 provides convenient loopback channels to your host computer or iOS device, so you can easily route the computer output, along with a mix of live inputs from the UltraLite-mk5 itself, back to the computer, where you can record it back into your podcasting host software or stream it live to the internet.
Ready for the Road
After recording and mixing in the studio, take the UltraLite-mk5 on the road with your laptop for mobile recording and live mixing. It features a rugged steel enclosure that can be rackmounted alone or beside another unit using optional hardware.
Included Software
- CueMix 5 gives you simple yet comprehensive graphic control over your mix. CueMix 5 is a completely new app with attractive graphic mixing, graphic editing of parametric EQ, and a convenient touch-friendly interface for quick access to all mixing features, digitally controlled trims, and other settings in your UltraLite-mk5.
- Performer Lite provides everything you need to record, edit, mix, process, and master your own music tracks quickly and easily. Plug in your mic, guitar, and MIDI keyboard and start tracking with over 100 virtual instruments, dozens of effects plug-ins, guitar FX processing, and much more.
- Take your musical muse wherever it wants to go with over 100 virtual instruments, including acoustic and electric pianos, guitars, basses, drums, organs synths, orchestral instruments, choirs, world instruments, and more.
- Performer Lite includes 6GB of free loops and sample packs from leading sample content providers to help you start making music right away. From Performer Lite's Content Browser, choose from dozens of musical styles, click to audition, then drag and drop in your project's timeline to quickly build your track.
UPC: 839128006188
In the Box
- MOTU UltraLite-mk5 Desktop 18x22 USB Type-C Audio/MIDI Interface
- External Power Supply
- CueMix 5 Software (Download)
- MOTU Performer Lite (Download)
- 6GB of Loops and Sounds from Big Fish Audio, LucidSamples, Loopmasters, and MOTU (Download)
- Limited 2-Year Warranty
Table of Contents
- Description
- UltraLite-mk5 Vs UltraLite-mk4
- Sound
- Versatility
- Connectivity
- USB Class Compliance
- Live Streaming
- Ready for the Road
- Included Software
MOTU ULTRALITE MK5 Specs
| Form Factor | Tabletop |
| Display | 1 x Monochrome OLED |
| Channels of I/O | Analog: 8 Inputs / 12 Outputs Digital: 10 Inputs / 10 Outputs |
| Max Sample Rate/Resolution | 192 kHz / 24-Bit |
| Number of Mic Preamps | 2 |
| Input Level Adjustment | 2 x Knob |
| Expansion Slots | None |
| Pad | Mic: -20 dB (Switchable per Channel) |
| Gain/Trim Range | Mic Inputs: Up to +74 dB |
| High-Pass Filter | None |
| Solo/Mute | None |
Connectivity
| Analog Audio I/O | 2 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input (Front Panel) 6 x 1/4" TRS Balanced Line Input 10 x 1/4" TRS Balanced Line Output (DC-Coupled) 1 x 1/4" TRS Unbalanced Headphone Output (Front Panel) |
| Phantom Power | 48 V, Selectable On/Off (Selectable on Individual Inputs) |
| Digital Audio I/O | 1 x TOSLINK Optical ADAT / S/PDIF Input 1 x TOSLINK Optical ADAT / S/PDIF Output 1 x RCA Coaxial S/PDIF Input 1 x RCA Coaxial S/PDIF Output |
| Host Connection / USB | 1 x USB Type-C (Class-Compliant USB 2.0) |
| USB (Non-Host) | None |
| Sync I/O | None |
| Network I/O | None |
| MIDI I/O | 1 x DIN 5-Pin Input 1 x DIN 5-Pin Output |
| Wireless Connectivity | None |
Performance
| Max Output Level | Headphone Outputs: +14 dBu |
| Impedance | Line/Hi-Z Inputs: 1 Megohm |
| Dynamic Range | Mic Inputs: 115 dB (A-Weighted) Line Inputs: 120 dB (A-Weighted) Line Outputs: 125 dB (A-Weighted) Headphone Outputs: 118 dB (A-Weighted) |
| THD+N | Line Inputs: -114 dB / 0.0002% (Unweighted) Line Outputs: -114 dB / 0.0002% (Unweighted) Headphone Outputs: -110 dB / 0.0003% (Unweighted) |
| EIN | Mic Inputs: -129 dBu |
Digital Audio
| Sample Rates | 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz |
| Sample Rate Conversion | None |
| Bit Depths | 24-Bit |
| Latency | 2.4 ms at 96 kHz (Dependent on Buffer Size, Input to Output) |
| Sync Sources | ADAT, Internal, S/PDIF |
| Memory Card Slot | None |
Compatibility
| OS Compatibility | macOS 10.11 or Later Windows 10 iOS 9 or Later |
| Included Software | Digital Performer Lite |
| Compatible Software (Not Included) | Any Core Audio (Mac) Compliant Software |
| Included Plug-Ins | None |
| Supported Drivers/API & Plug-Ins | macOS Class-Compliant (No Driver Needed) Windows Driver Downloadable from Manufacturer |
| Processor Requirement | Mac: Intel Core i3 or Better PC: Intel Core i3 or Better AMD |
| RAM Requirements | 4 GB, 8 GB Recommended |
| Storage Requirements | 500 GB |
| Mobile Device Compatibility | iPad iPhone iPod Touch |
| Required Hardware | Available USB 2.0 Port |
| Internet Connection | Required for Registration, Software/Driver Download |
Power
| Power Requirements | AC/DC Power Adapter (Included) |
| AC/DC Power Adapter | 12 to 18 VDC at 1 A, Center-Positive or Negative (Included) |
Physical
| Rackmount Size | 1 RU (with Optional Hardware, 1/2-Rack) |
| Dimensions | 8.6 x 6.9 x 1.75" / 21.8 x 17.5 x 4.45 cm |
| Weight | 2.9 lb / 1.3 kg |
Packaging Info
| Package Weight | 4.87 lb |
| Box Dimensions (LxWxH) | 14.8 x 11.4 x 5.5" |
