Description

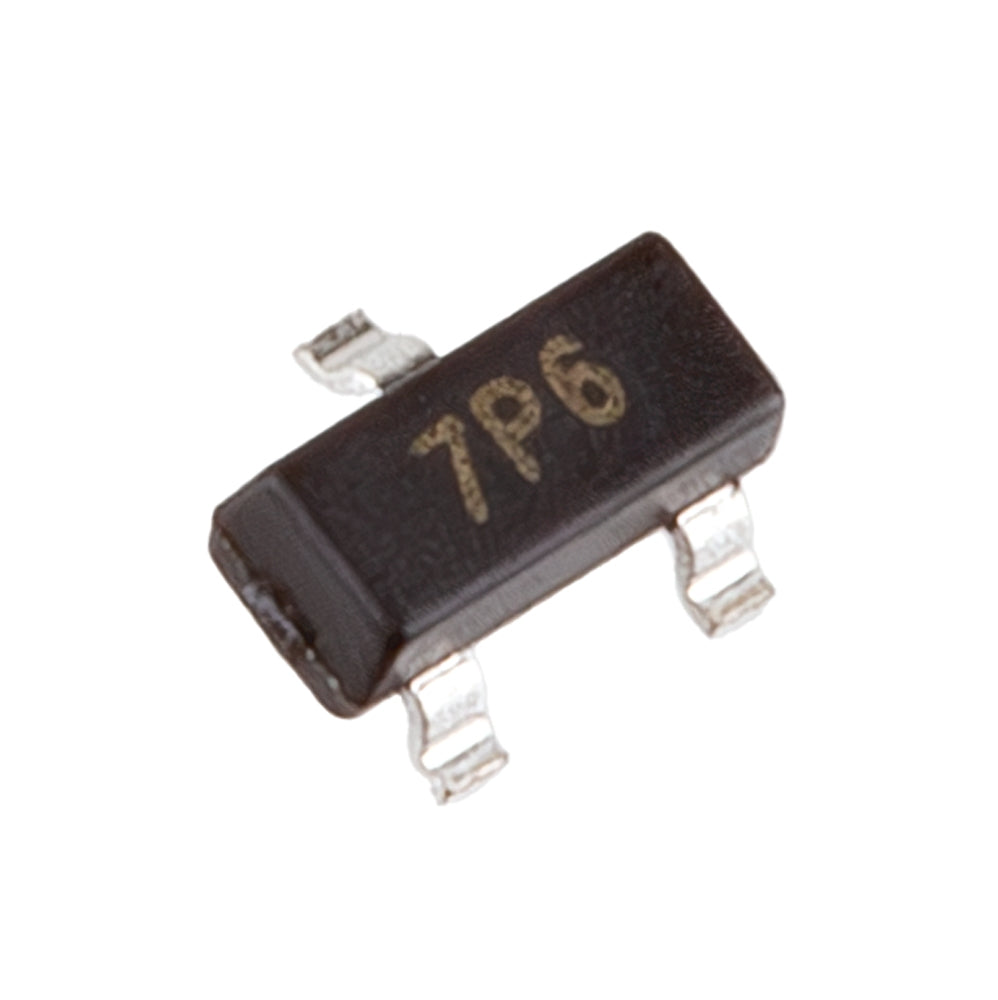

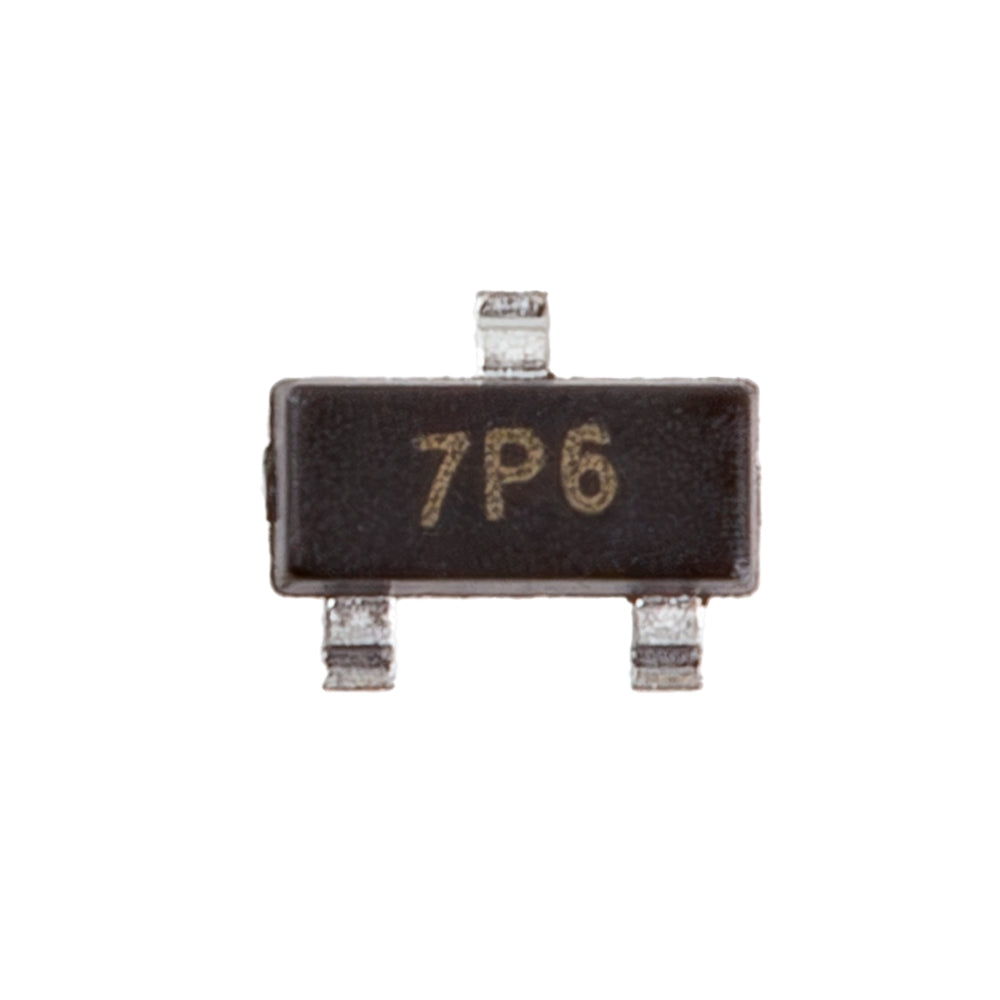

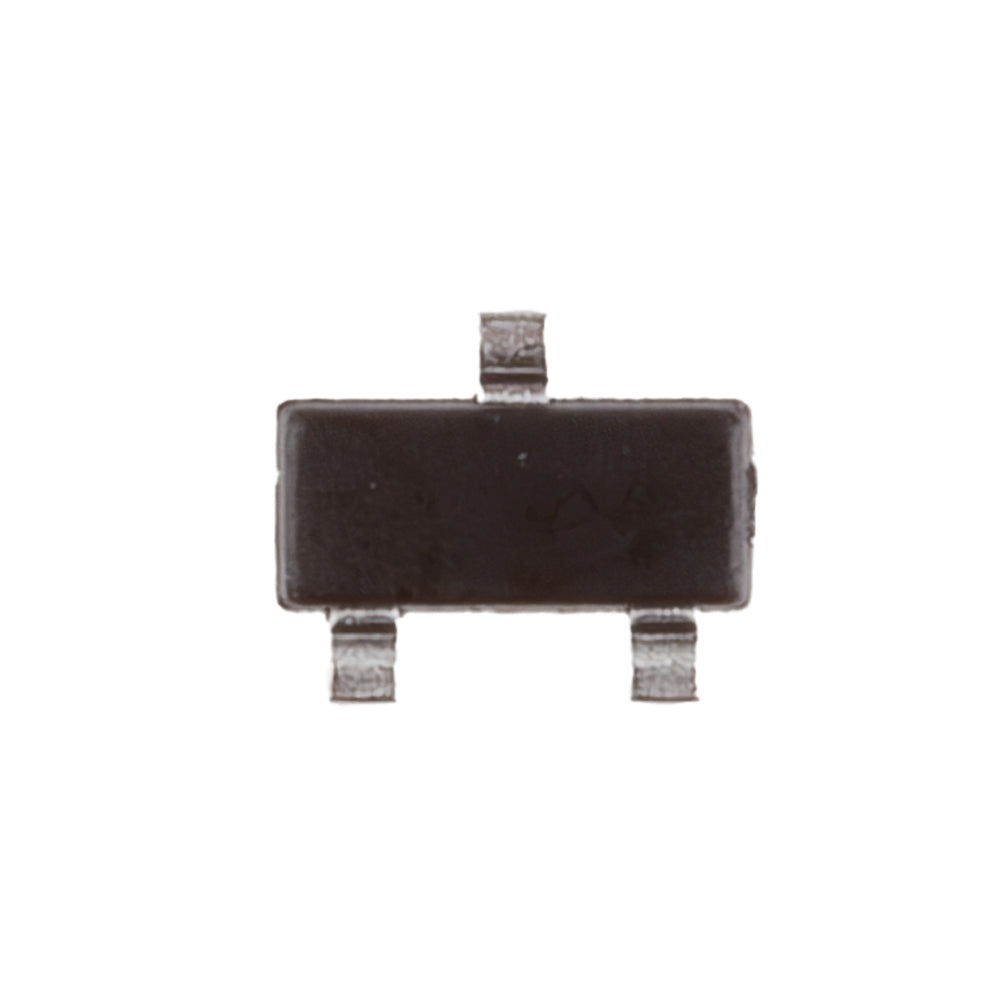

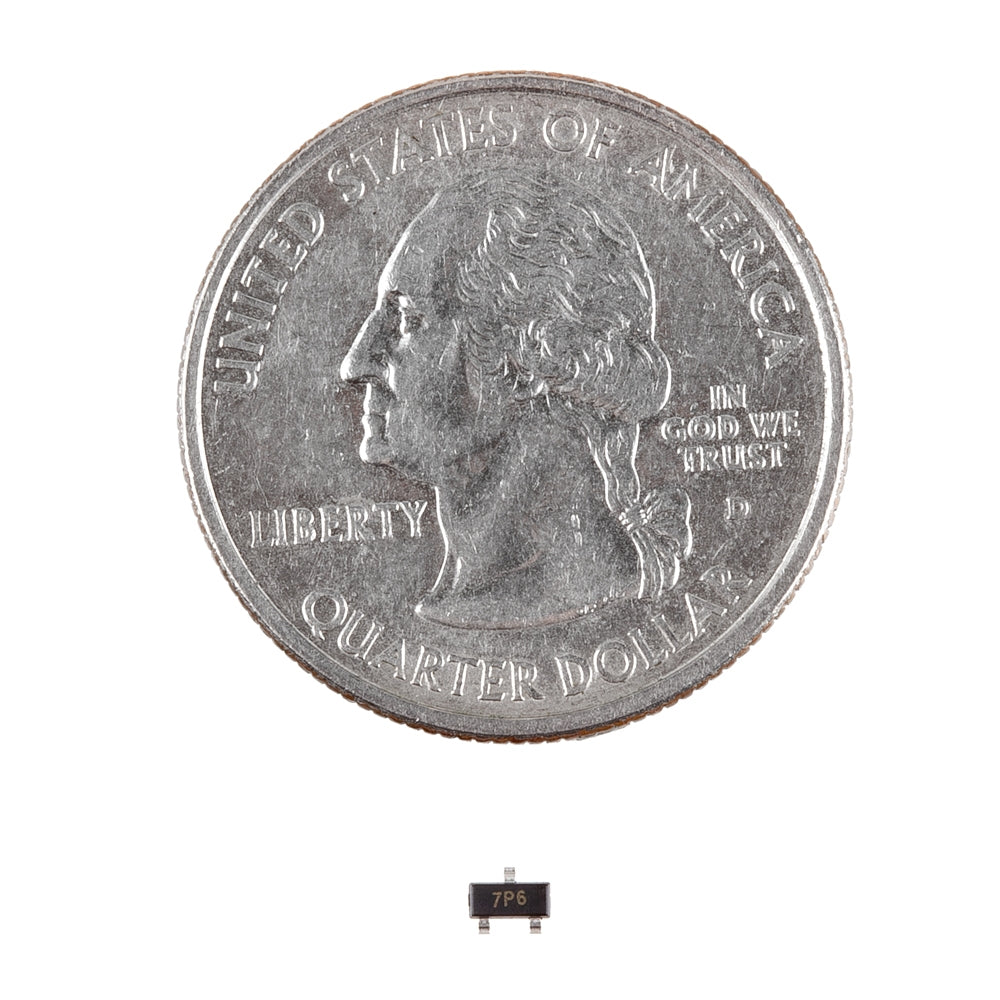

This is a common MOSFET with very low on-resistance and a control voltage (aka gate voltage) that is compatible with any 3-5V microcontroller or mechanical switch. This allows you to control high-power devices with very low-power control mechanisms.
Features & Specs
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60V
- Current - Continuous Drain (Id) @ 25°C: 900mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 400mOhm @ 900mA, 10V
- Vgs(th) (Max) @ Id: 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 5.9nC @ 10V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 219pF @ 30V
- Power Dissipation (Max): 625mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Mfg #: ZXMP6A13FTA
Features & Specs
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60V
- Current - Continuous Drain (Id) @ 25°C: 900mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 400mOhm @ 900mA, 10V
- Vgs(th) (Max) @ Id: 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 5.9nC @ 10V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 219pF @ 30V
- Power Dissipation (Max): 625mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Mfg #: ZXMP6A13FTA
Documentation
