Description

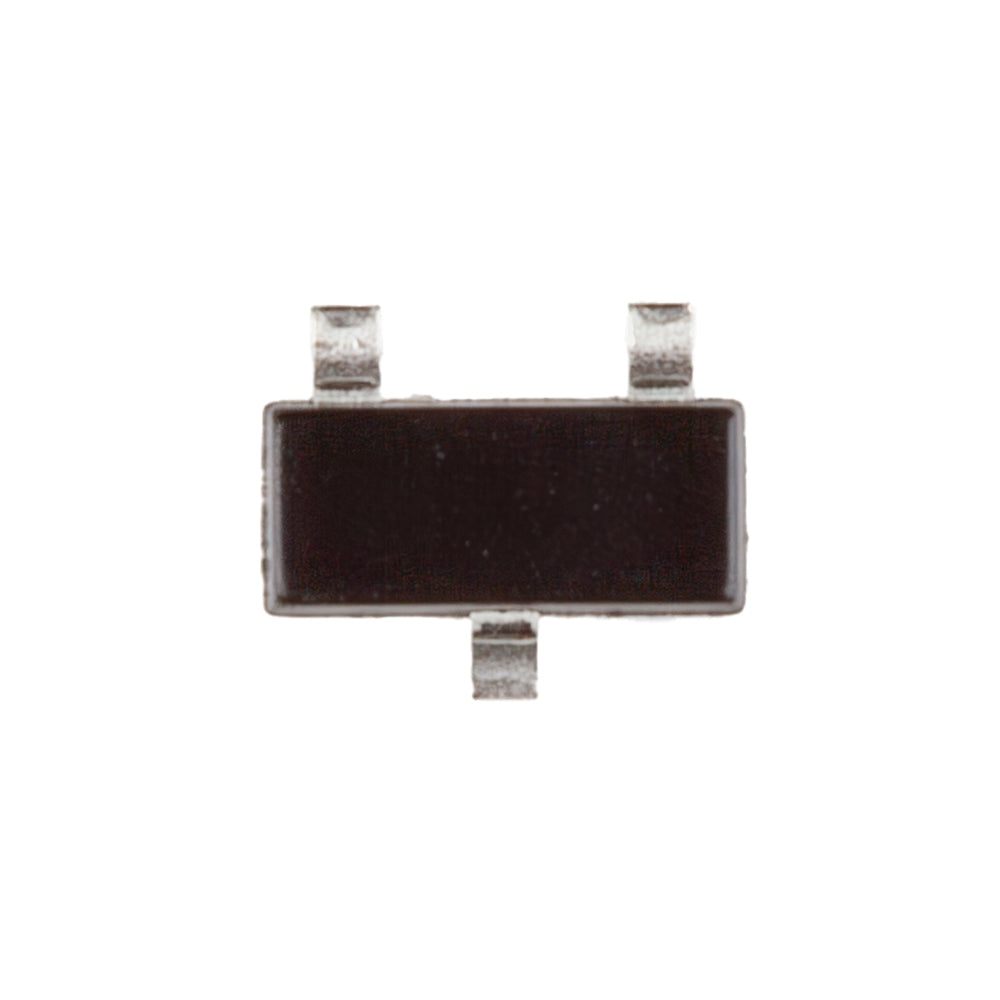

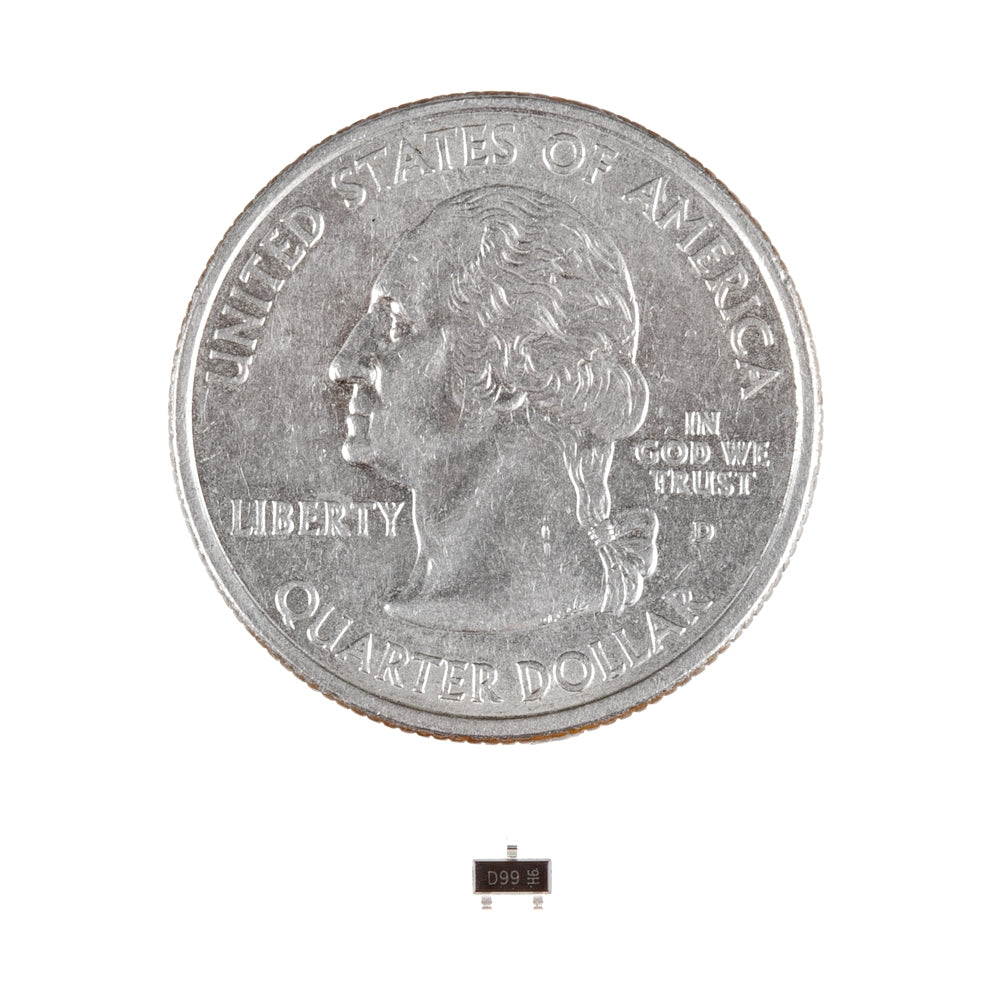

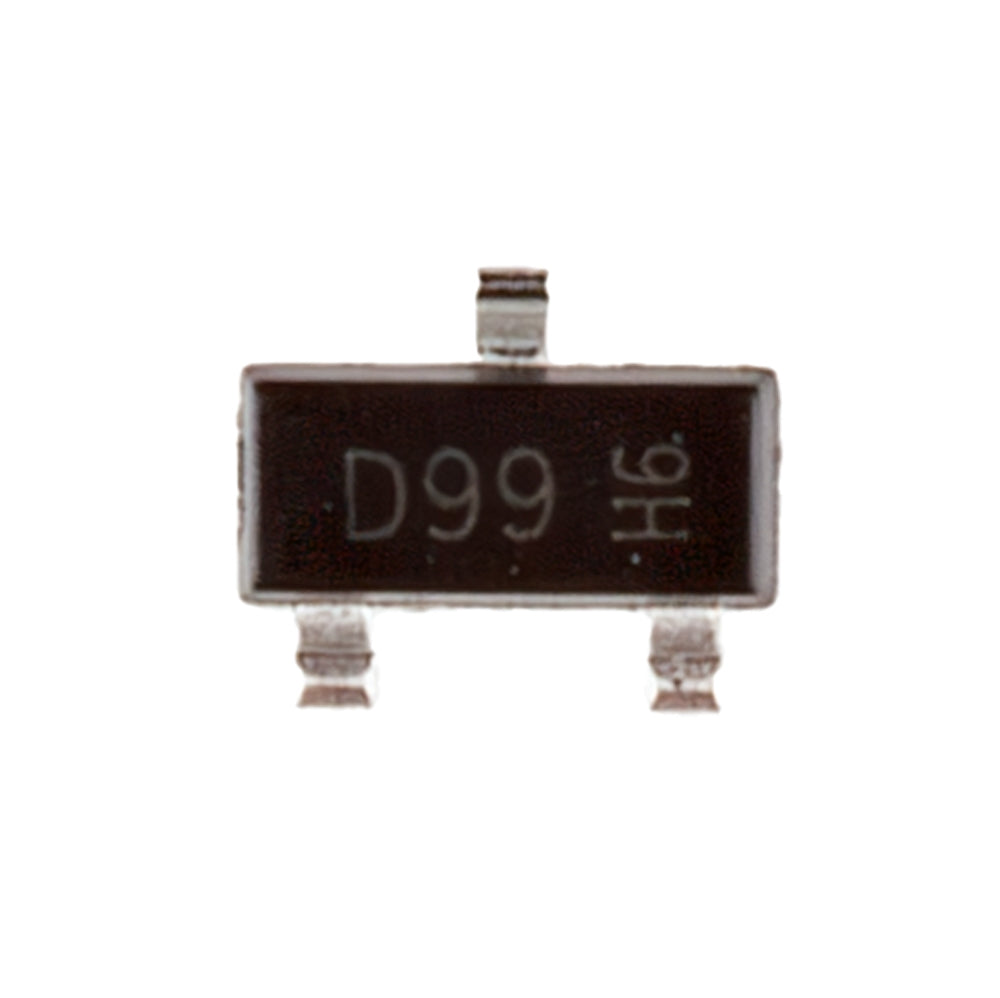

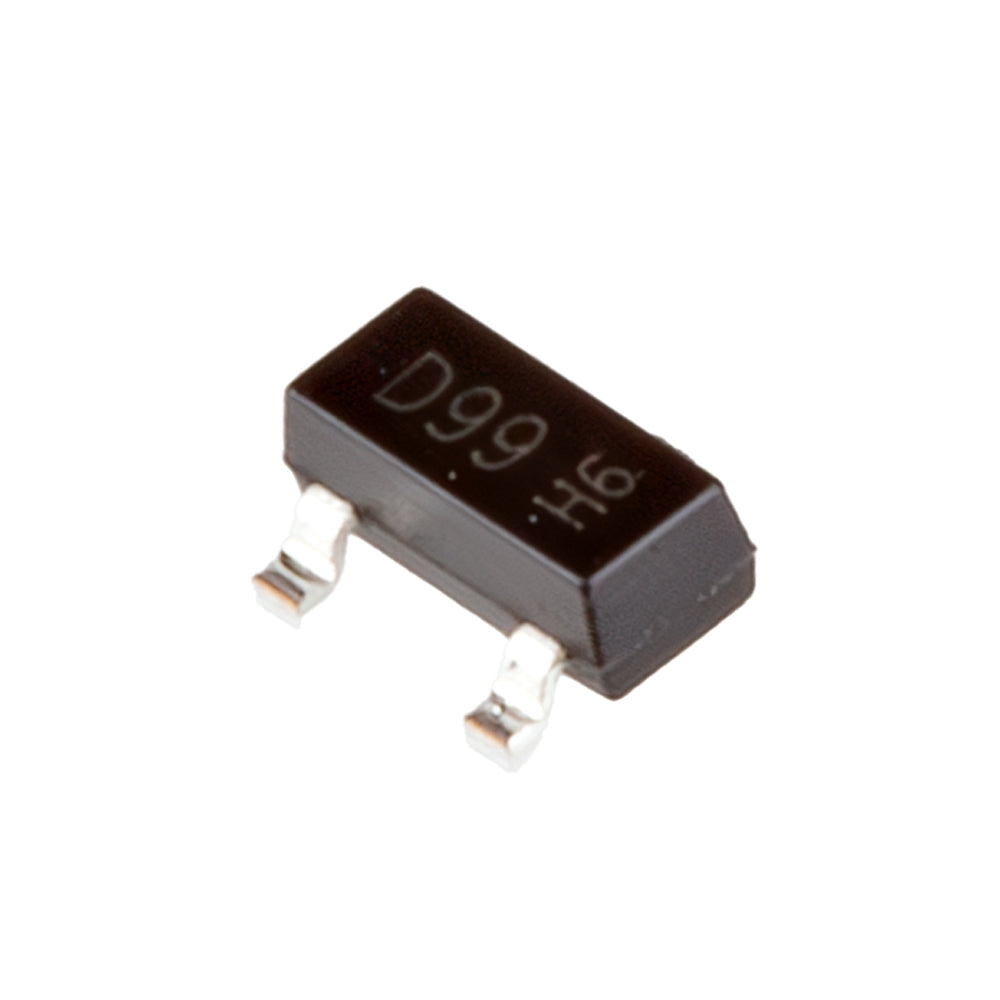

A 30V, 3.8A logic-level P-Channel MOSFET in a SOT-23 package, featuring low on-resistance and direct compatibility with 3.3V/5V microcontrollers.
Features & Specs
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30V
- Current - Continuous Drain (Id) @ 25°C: 3.8A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 65mOhm @ 3.8A, 10V
- Vgs(th) (Max) @ Id: 2.1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 5.2 nC @ 4.5V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 563pF @ 25V
- Power Dissipation (Max): 1.08W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Mfg #: DMP3099L-7
Features & Specs
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30V
- Current - Continuous Drain (Id) @ 25°C: 3.8A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 65mOhm @ 3.8A, 10V
- Vgs(th) (Max) @ Id: 2.1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 5.2 nC @ 4.5V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 563pF @ 25V
- Power Dissipation (Max): 1.08W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Mfg #: DMP3099L-7
