Description

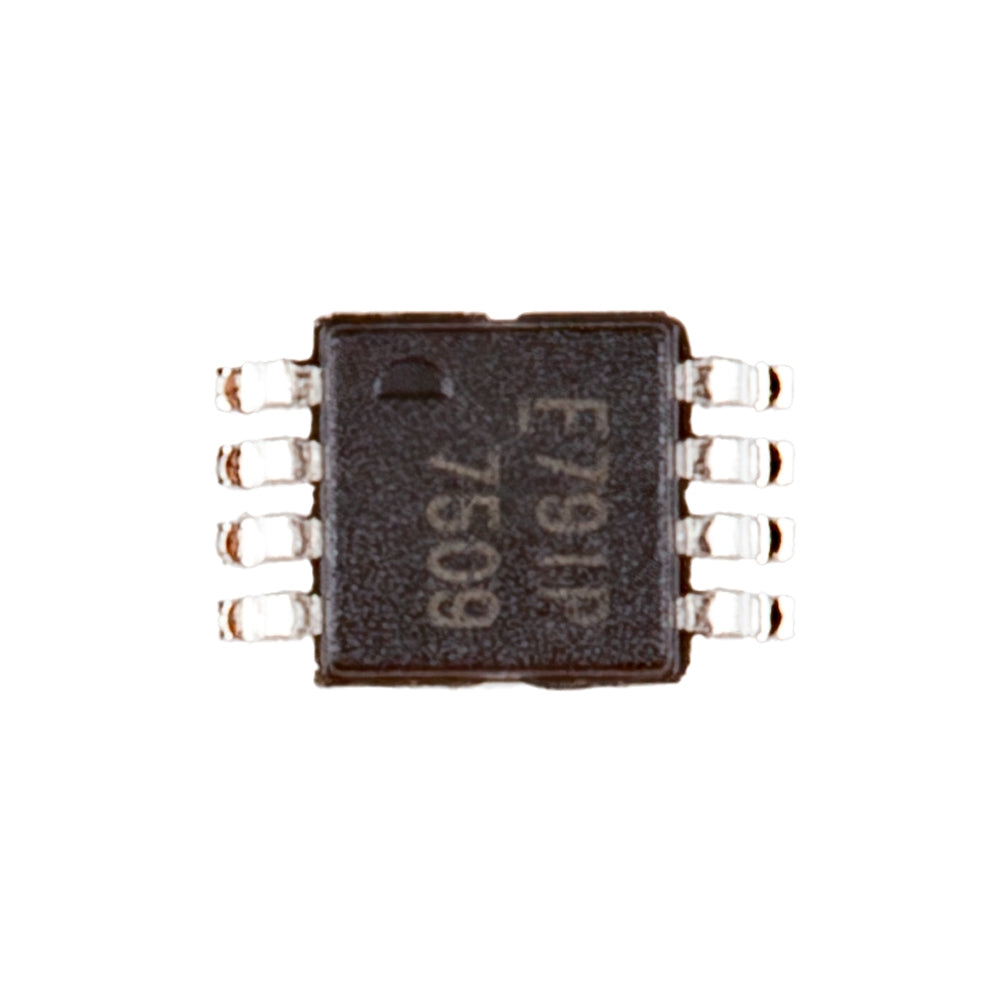

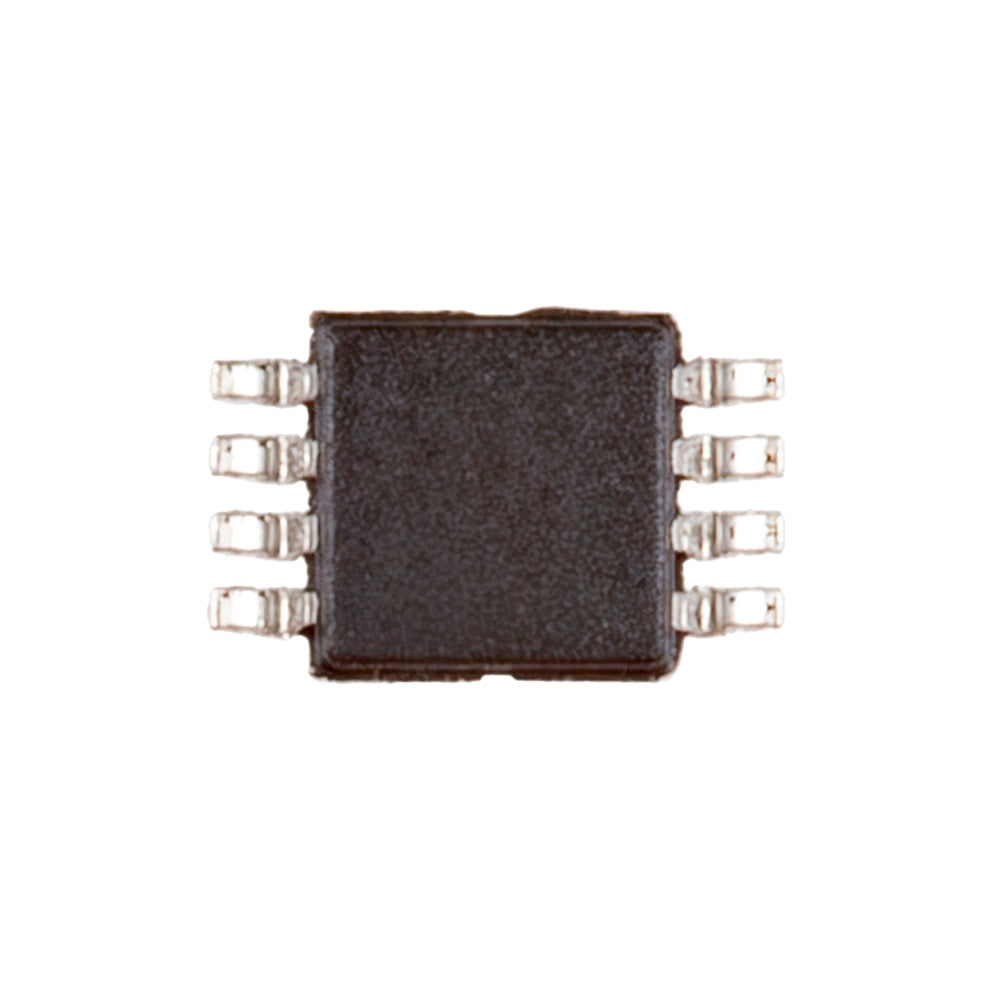

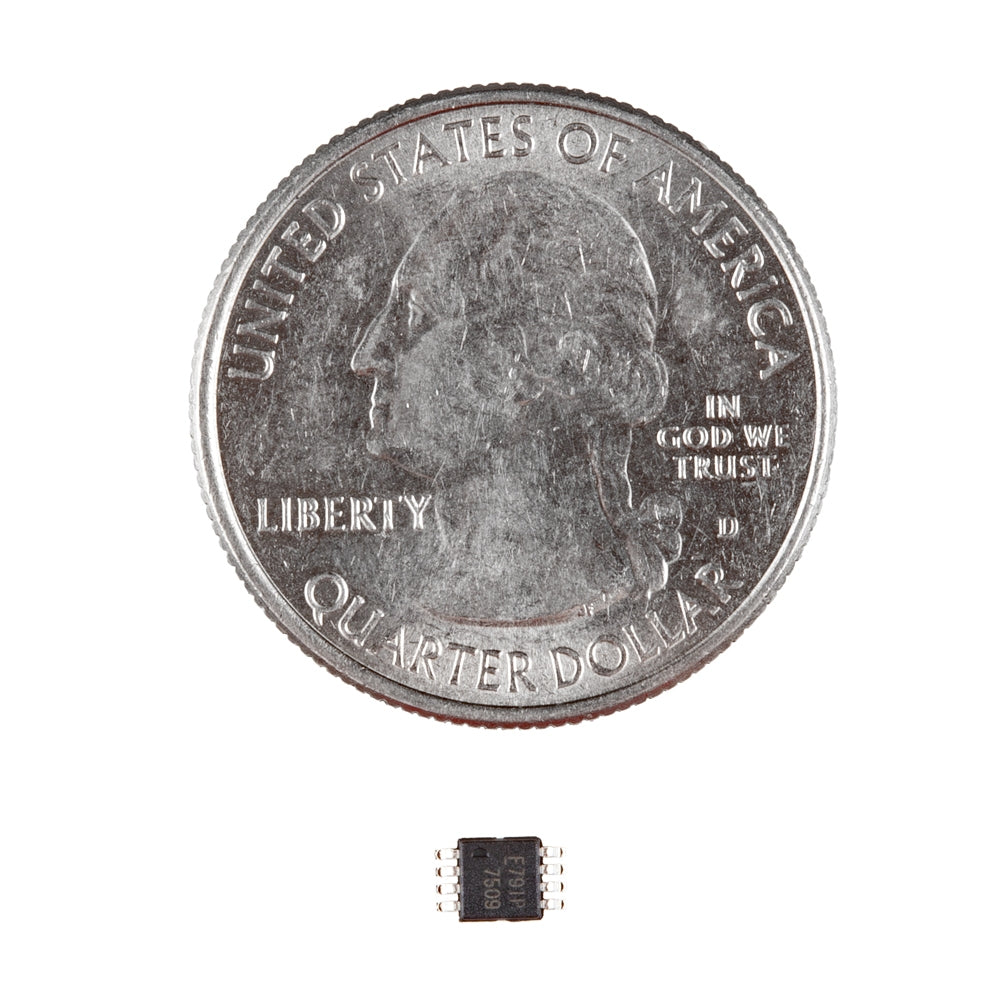

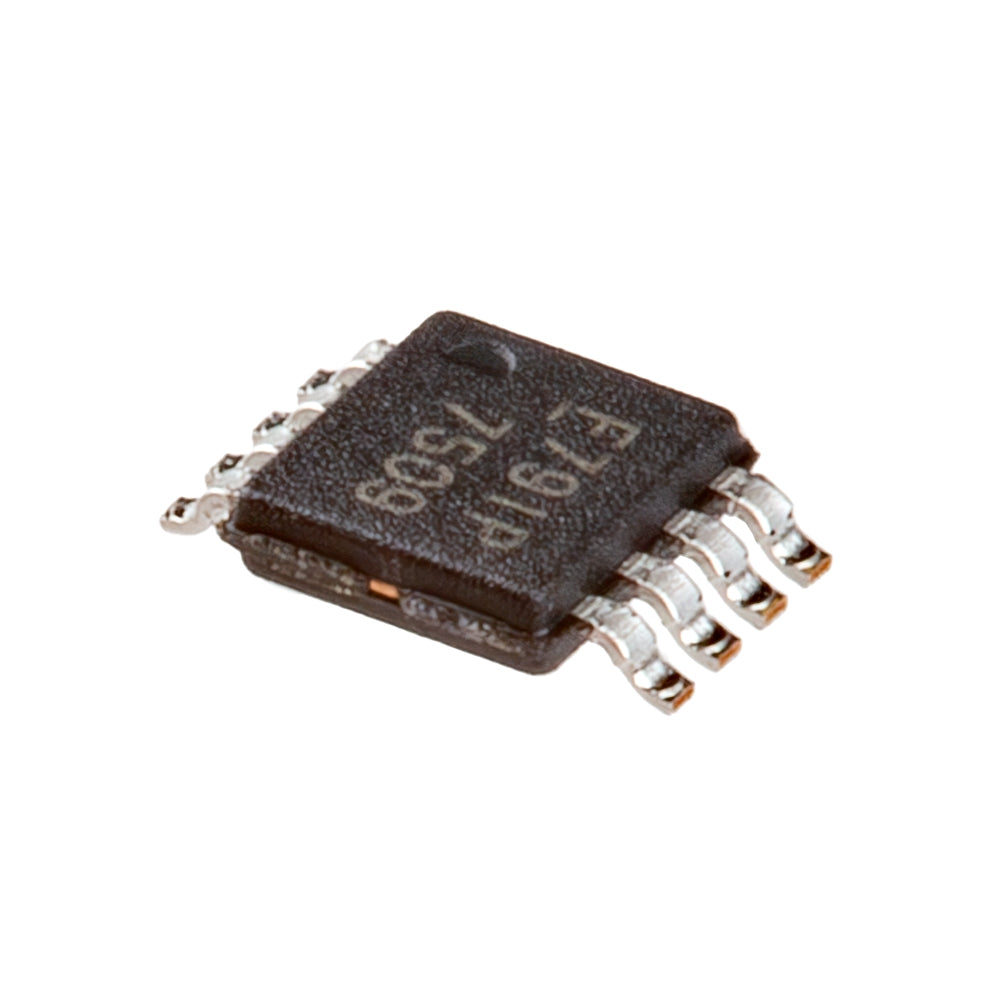

The IRF7509 is a very common MOSFET with very low on-resistance and a control voltage (aka gate voltage) that is compatible with most 5V microcontroller or mechanical switches. This allows you to control high-power devices with very low-power control mechanisms.
Features & Specs
- mConfiguration: N and P-Channel
- FET Feature: Logic Level Gate
- Drain to Source Voltage (Vdss): 30V
- Current - Continuous Drain (Id) @25°C: 2.7A, 2A
- Rds On (Max) @ Id, Vgs: 110mOhm @ 1.4A, 10V
- Vgs(th) (Max) @ Id: 1V @250µA
- Gate Charge (Qg) (Max) @ Vgs: 12nC @ 10V
- Input Capacitance (Ciss) (Max) @ Vds: 210pF @ 25V
- Power - Max: 1.25W
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Mfg #: IRF7509
Features & Specs
- mConfiguration: N and P-Channel
- FET Feature: Logic Level Gate
- Drain to Source Voltage (Vdss): 30V
- Current - Continuous Drain (Id) @25°C: 2.7A, 2A
- Rds On (Max) @ Id, Vgs: 110mOhm @ 1.4A, 10V
- Vgs(th) (Max) @ Id: 1V @250µA
- Gate Charge (Qg) (Max) @ Vgs: 12nC @ 10V
- Input Capacitance (Ciss) (Max) @ Vds: 210pF @ 25V
- Power - Max: 1.25W
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Mfg #: IRF7509
Documentation
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 93.1 |
| 3-5 | ₹ 92.15 |
| 5-10 | ₹ 90.25 |
| 10+ | ₹ 88.35 |
Bulk discount will be automatically applied during checkout based on quantity.
