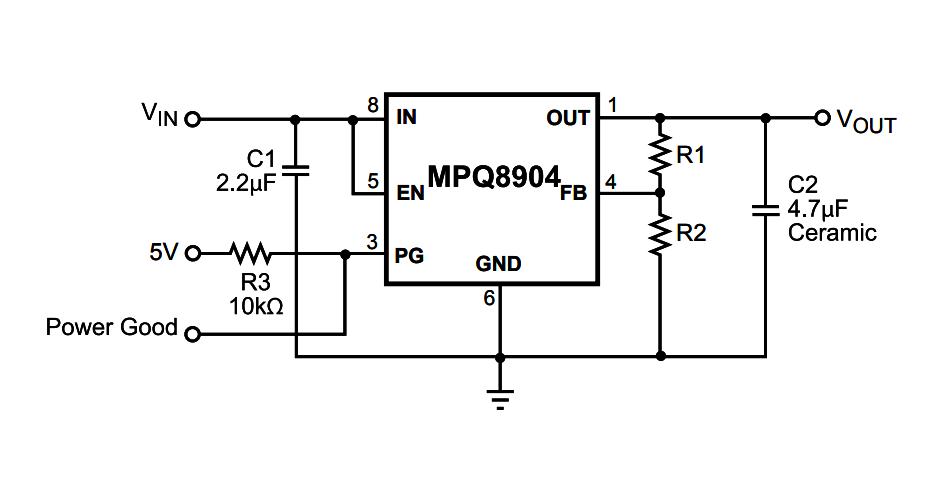

- Automotive-grade 500mA linear regulator
- Power-good open collector output
- Low 300mV dropout at 500mA output
- Stable with very small ceramic capacitors
- 2.5% feedback reference
- Adjustable output voltage from 0.5V to 5V
- Better than 0.001%/mA load regulation
- Stable with low-ESR output capacitor
- Low 140µA ground current
- Internal thermal protection and current limit protection
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MPQ8904DD-AEC1-LF-P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
