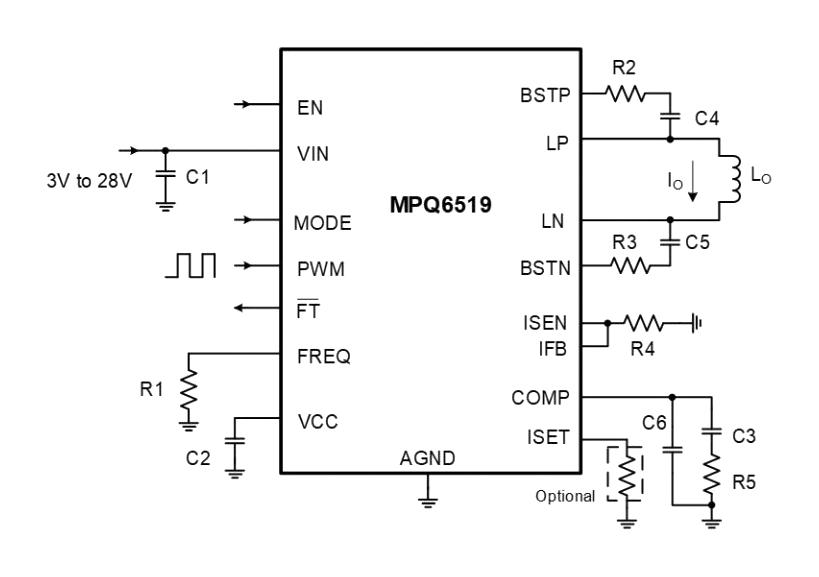

- 3V to 28V, 5A, H-bridge current regulator, AEC-Q100 qualified
- Monolithic, step-down current-source driver
- ±2% Accuracy at full-scale reference and 65mohm RDS(ON) for each H-bridge MOSFET
- 100% duty cycle operation and up to 94% efficiency
- Selectable current polarity mode and programmable full-scale current
- Auto-disabled switching via Pulse-Width Modulation (PWM) input detection
- 30KHz to 300KHz Configurable Switching Frequency (fSW)
- 20KHz to 100KHz PWM input for current regulation
- OCP, SCP, OVP, OTP and open-load protection
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size. Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MPQ6519GR-AEC1-P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
