- Automotive grade 6A, 36V, step-down converter
- Internal auto EN pull-up
- 20mohm/15mohm Low RDS(ON) internal buck power MOSFETs
- Integrated 4mohm ground sensing resistor
- Frequency adjustable (235KHz to 2.2MHz)
- CC output current limit, 3-level adjustable, 2.75A/3.75A/7.5A
- Forced PWM mode
- Frequency SYNC from 300KHz to 2.1MHz
- Spread spectrum option with 450KHz fSW
- EN shutdown discharge and low dropout mode
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size. Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MPQ4480GV-AEC1-Z |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |

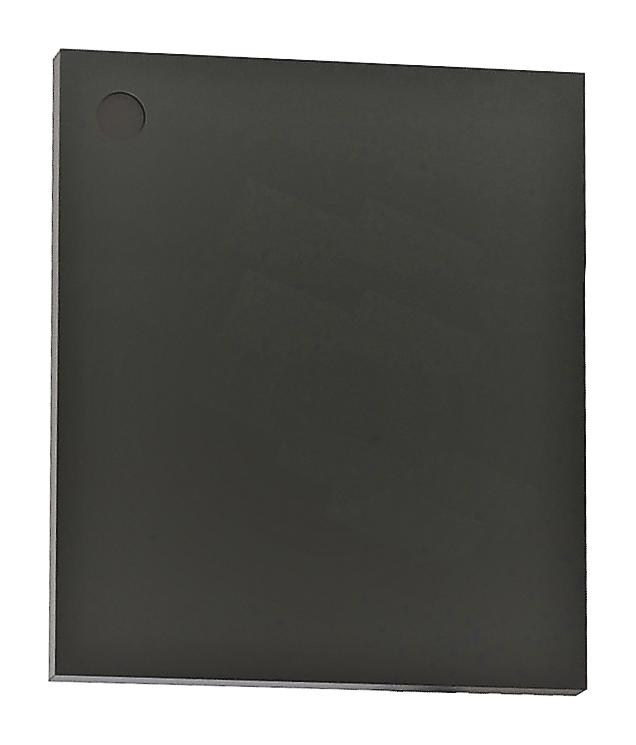

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
