MPQ4418 is a high-efficiency, low RDS(ON) synchronous, rectified, switch-mode, step-down converter with built-in internal power MOSFETs. It can deliver up to 0.6A of continuous output current across a wide input voltage range (4V to 36V) with excellent load and line regulation. Synchronous mode offers high efficiency across the entire output current load range. Current control mode provides fast transient response and improved loop stabilization. The MPQ4418's protection features include overcurrent protection (OCP) and thermal shutdown (TSD). The MPQ4418 is a compact solution that requires a minimal number of readily available, standard external components and is available in a small TSOT23-8 package. Typical applications include automotive, industrial control system and distributed power systems.
- Configurable Output from 0.8V
- Internal Low RDS(ON) 90mohm high-side MOSFET (HS-FET) and 55mohm low-side MOSFET (LS-FET)
- High efficiency synchronous mode operation
- 410KHz default switching frequency (fSW)
- 200kHz to 2.2MHz synchronized external clock
- High duty cycle for automotive cold crank
- Forced continuous conduction mode (FCCM)
- Internal soft start (SS) and power good (PG)
- AEC-Q100 Grade 1 qualified
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size. Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MPQ4418GJ-AEC1-P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |

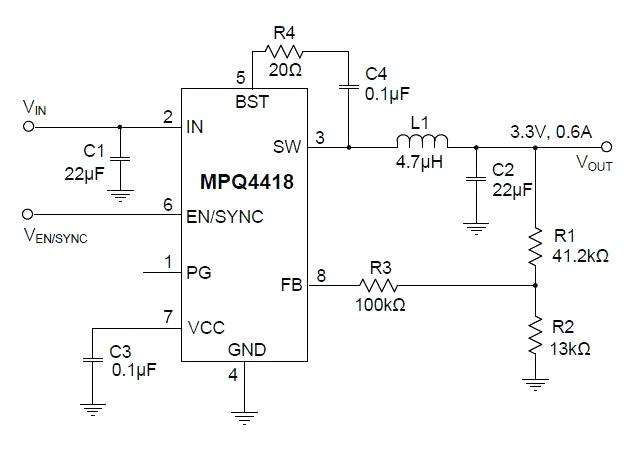

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
