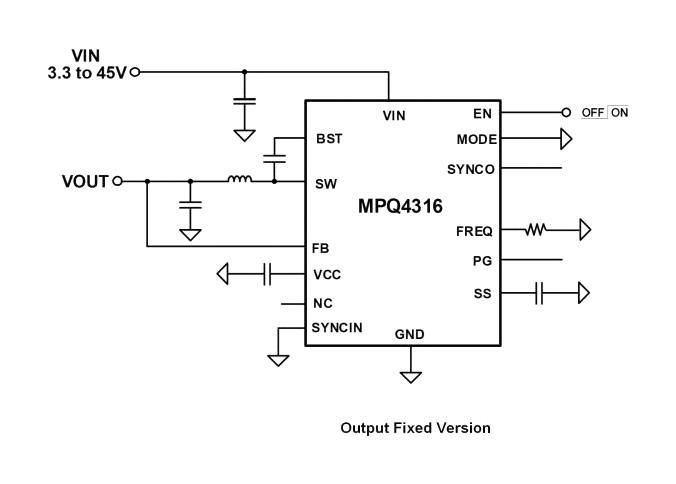

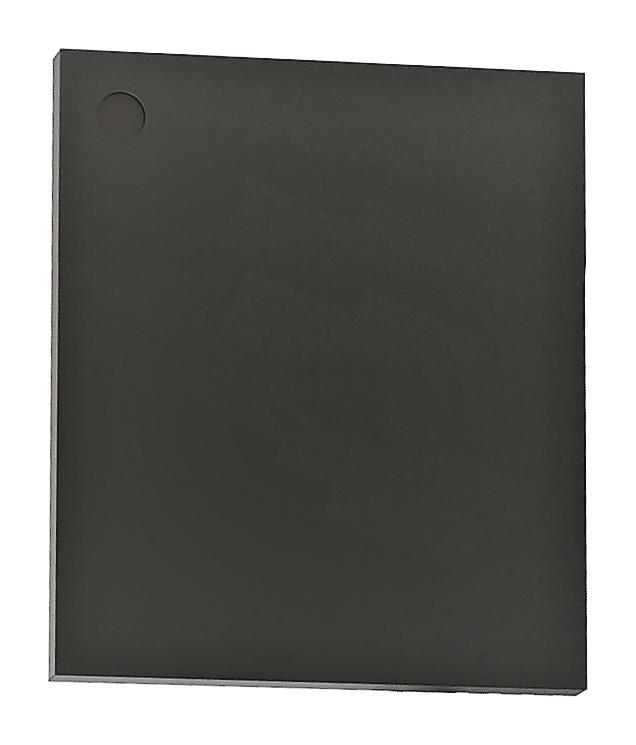

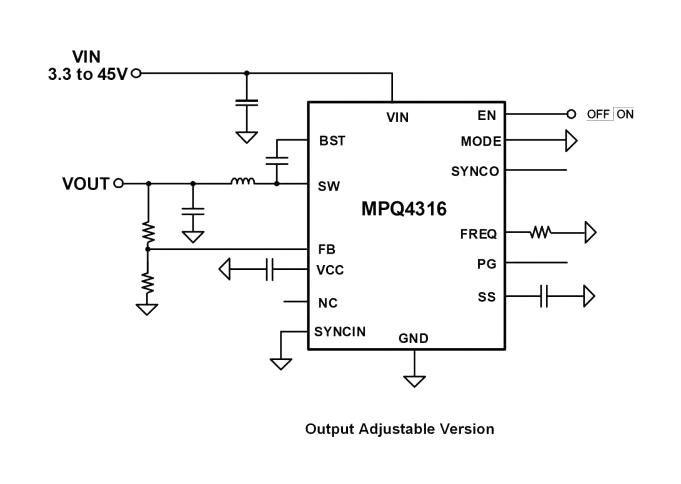

MPQ4316 is a frequency-configurable, synchronous, step-down switching converter with integrated internal high-side and low-side power MOSFETs. The device provides 6A (or less) of highly efficient output current with current mode control for fast loop response. The wide 3.3V to 45V input range accommodates a variety of step-down applications in automotive input environments. A 1.7µA shutdown mode quiescent current allows the device to be used in battery-powered applications. The device achieves high power conversion efficiency across the wide load range by scaling down the switching frequency under light-load conditions to reduce the switching and gate driving losses. An open drain power good signal indicates when the output is within 95% to 105% of its nominal voltage. The MPQ4316 is available in a QFN-20 (4mmx4mm) package. Applications include automotive infotainment, automotive clusters, advanced driver assistance systems and industrial power systems.
- 6A of continuous output current, 18µA sleep mode quiescent current
- Internal 48mohm high-side MOSFET and 20mohm low-side MOSFET
- 350KHz to 1000KHz configurable switching frequency for car battery applications
- Can be synchronized to external clock
- Frequency spread spectrum (FSS) for low EMI, can be synchronized to external clock
- Symmetric VIN for low EMI, power good output, external soft start
- 100ns minimum on time, low-dropout mode
- Hiccup overcurrent protection (OCP), thermal shutdown provides reliable, fault-tolerant operation
- Out-of-phase synchronized clock output, AEC-Q100 Grade 1 qualified
- Provides a high duty cycle and low dropout mode for automotive cold-crank conditions
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size.
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MPQ4316GRE-5-AEC1-P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
