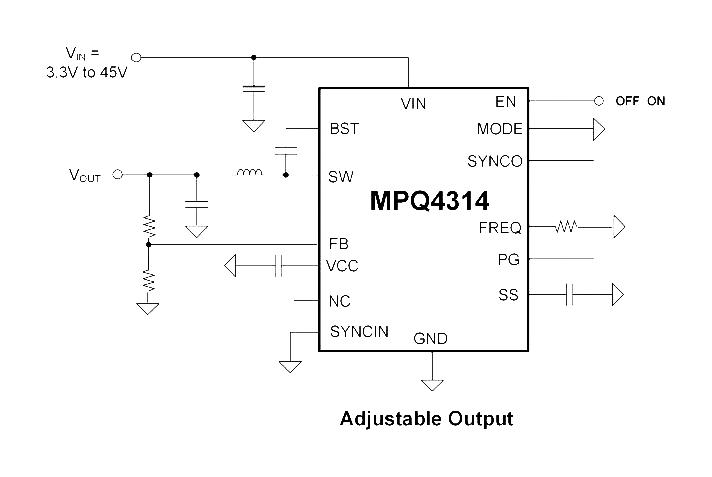

MPQ4314 is a configurable-frequency, synchronous, step-down switching regulator with integrated internal high-side and low-side power MOSFETs (HS-FET and LS-FET, respectively). It provides up to 4A highly efficient output current (IOUT) with current mode control for fast loop response. The wide 3.3V to 45V input voltage (VIN) range accommodates a variety of step-down applications in automotive input environments. High power conversion efficiency across a wide load range is achieved by scaling down the switching frequency (fSW) under light-load conditions to reduce the switching and gate driver losses. An open-drain power good (PG) signal indicates whether the output is within 95% to 105% of its nominal voltage. High-duty cycle and low-dropout mode are provided for automotive cold crank conditions. The MPQ4314 is available in a QFN-20 (4mmx4mm) package. Applications include automotive infotainment/clusters, advanced driver assistance systems (ADAS) and industrial power systems.
- 18µA sleep mode quiescent current (IQ), 1.7µA shutdown mode quiescent current, fixed output of 3.3V
- Internal 48mohm high-side MOSFET (HSFET) and 20mohm low-side MOSFET (LSFET)
- 350KHz to 1000kHz programmable switching frequency (fSW) for car battery applications
- Synchronize to external clock
- Out-of-phase synchronized clock output
- Frequency spread spectrum for low EMI, thermal shutdown provides reliable, fault-tolerant operation
- Symmetric VIN for low EMI, power good (PG) output, external soft start (SS), 100ns minimum on time
- Selectable advanced asynchronous modulation (AAM) mode or forced continuous conduction mode (FCCM)
- Low-dropout mode, hiccup overcurrent protection (OCP),AEC-Q100 grade 1 qualified
- Frequency foldback helps prevent inductor current runaway during start-up
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size.
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MPQ4314GRE-33-AEC1-P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
