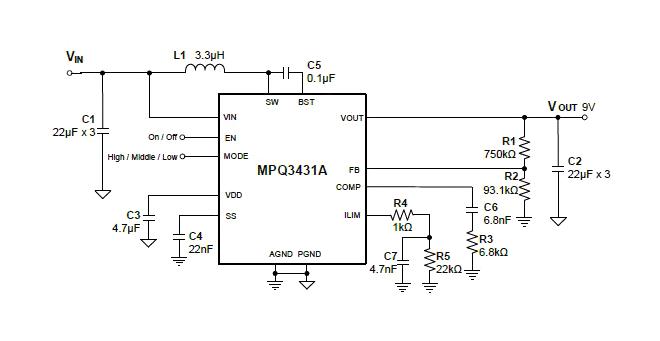

MPQ3431A is a 450KHz, fixed-frequency, highly integrated boost converter with a wide input range. The MPQ3431A starts from an input voltage as low as 2.7V and supports up to 20W of load power from a single-cell battery with integrated low RDS(ON) power MOSFETs. The MPQ3431A adopts constant-off-time (COT) control topology, which provides fast transient response. The MODE pin allows the user to select pulse-skip mode (PSM), forced continuous conduction mode (FCCM), or ultrasonic mode (USM) under light-load conditions. The configurable input current limit provides accurate overload protection. The low side MOSFET limits the cycle-by-cycle inductor peak current, and the high-side MOSFET eliminates the requirement for an external schottky diode. Full protection features include programmable input under-voltage lockout and overtemperature protection. The MPQ3431A is available in a QFN-13 (3mmx4mm) package. Typical applications include automotive boost, super capacitors and backup batteries.
- Guaranteed industrial/automotive temp
- Supports 20W average power load and 40W peak power load from 3.3V
- 2.7V to 13V start-up voltage, 0.8V to 13V operation voltage
- Configurable input current limit, 21.5A internal switch current limit
- Integrated 6mohm and 9.5mohm power MOSFETs
- 95% efficiency for 3.6V VIN to 9V/3A
- Selectable PSM, >23KHz USM and FCCM under light-load conditions
- 450KHz fixed switching frequency
- Adaptive COT for fast transient response, external soft start and compensation pins
- AEC-Q100 qualified
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size. Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MPQ3431AGL-AEC1-P |
| Quantity |
|
| Technical Data Sheet EN |
 |
