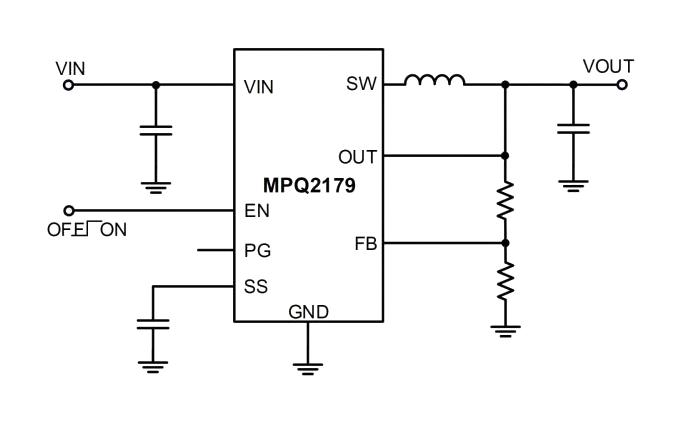

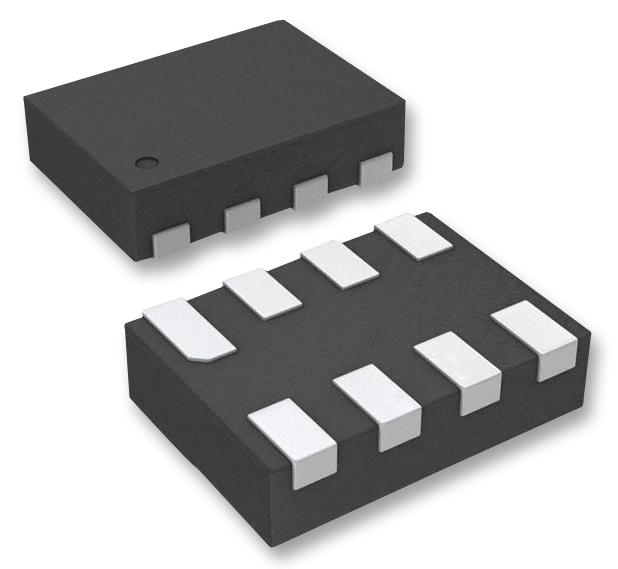

MPQ2179 is a monolithic, synchronous, step-down, switch-mode converter with built-in internal power MOSFETs. It achieves 3A of continuous output current across a 2.5V to 5.5V input voltage (VIN) range with excellent load and line regulation. Output voltage (VOUT) can be regulated to as low as 0.6V. The constant-on-time (COT) control scheme provides fast transient response and eases loop stabilization. MPQ2179 is ideal for a wide range of applications. MPQ2179 requires a minimal number of readily available, standard external components and is available in an ultra-small QFN-8 (1.5mmx2mm) package. It also features EN for power sequencing, power good (PG), 100% duty on, external soft start (SS) control and output discharge. Applications include automotive infotainment, camera modules, key fobs, automotive clusters, automotive telematics, industrial supplies and battery-powered devices.
- 2.4MHz switching frequency, EN for power sequencing
- 1% FB accuracy, output adjustable from 0.6V
- 65mohm and 35mohm internal power MOSFET switches
- 100% duty on, output discharge, power good (PG)
- External soft start (SS) control, output overvoltage protection (OVP)
- Short-circuit protection (SCP) with hicc-up mode
- Forced continuous conduction mode (FCCM)
- Cycle-by-cycle current limiting and thermal shutdown
- AEC-Q100 Grade 1 qualified
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size.
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MPQ2179GQHE-AEC1-P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Technical Notes & Articles EN |
|
