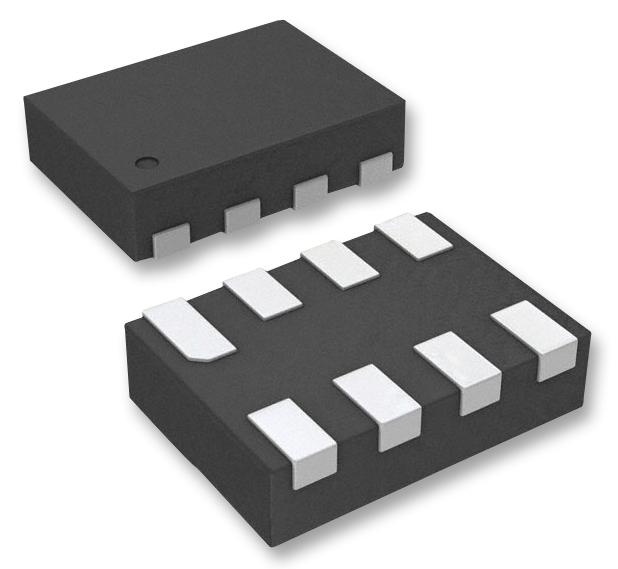

MPQ2179A is a monolithic, synchronous, step-down, switch-mode converter with integrated internal power MOSFETs. It can achieve up to 3A of continuous output current (IOUT) across a 2.5V to 5.5V input voltage (VIN) range with excellent load and line regulation. The output voltage (VOUT) can be regulated to as low as 0.6V. The MPQ2179A is ideal for a wide range of applications including automotive clusters, telematics and infotainment systems, camera modules, key fobs, industrial supplies, battery powered devices. Constant-on-time (COT) control provides fast transient response and eases loop stabilization. Fault protections include cycle-by-cycle current limiting and thermal shutdown. The MPQ2179A requires a minimal number of readily available, standard external components and is available in a compact QFN-8 (1.5mmx2mm) package.
- AEC-Q100 qualified, designed for automotive applications
- 1% feedback (FB) accuracy, -40°C to +150°C operating junction temperature (TJ) range
- Increased battery life, 21µA sleep mode quiescent current (IQ)
- AAM mode for increased efficiency under light load conditions
- High performance for improved thermals
- 65mohm and 35mohm integrated internal power MOSFETs, optimized for EMC and EMI
- 2.4MHz switching frequency (fSW), MeshConnectTM flip-chip package
- Reduces board size and BOM, integrated internal power MOSFETs, integrated compensation network
- Enable for power sequencing, power good, 100% duty cycle, available in a wettable flank package
- External soft start (SS) control, output discharge, OVP and SCP with hiccup mode
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size.
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MPQ2179AGQHE-AEC1-P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
