MPQ2124 is a frequency-programmable (300KHz to 2.2MHz), synchronous step-down converter. It can achieve up to 3A of continuous output current using peak current control, with excellent transient response and efficiency performance. The MPQ2124 operates from a 2.7V to 6.0V input range and generates an output voltage as low as 0.606V. It is ideal for a wide range of applications, including automotive infotainment, clusters and telematics, as well as portable instruments, industrial supplies and battery powered devices. The MPQ2124 integrates a 35mohm high-side switch and a 25mohm synchronous rectifier for high efficiency without an external schottky diode. The MPQ2124 can be configured for either advanced asynchronous mode (AAM) or forced continuous conduction mode (FCCM) operation at light load. With internal compensation, the MPQ2124 requires a minimal number of readily available, standard external components. Available in QFN-11 (2mmx3mm) package.
- Automotive AEC-Q100 Grade 1 qualified
- High efficiency synchronous mode control, external sync clock up to 2.2MHz
- 42µA quiescent current, low shutdown mode current, VIN undervoltage lockout
- 100% duty cycle operation, internal compensation mode
- External soft start, remote EN control
- AAM provides high efficiency by reducing switching losses at light load
- FCCM has controllable frequency and a lower output ripple
- External sync clock, enable control and a power good indicator
- Short-circuit protection, reliable overvoltage protection and auto-recovery thermal protection
- Overcurrent protection with valley current detection which is used to avoid current runaway
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size. Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MPQ2124GD-AEC1-P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |

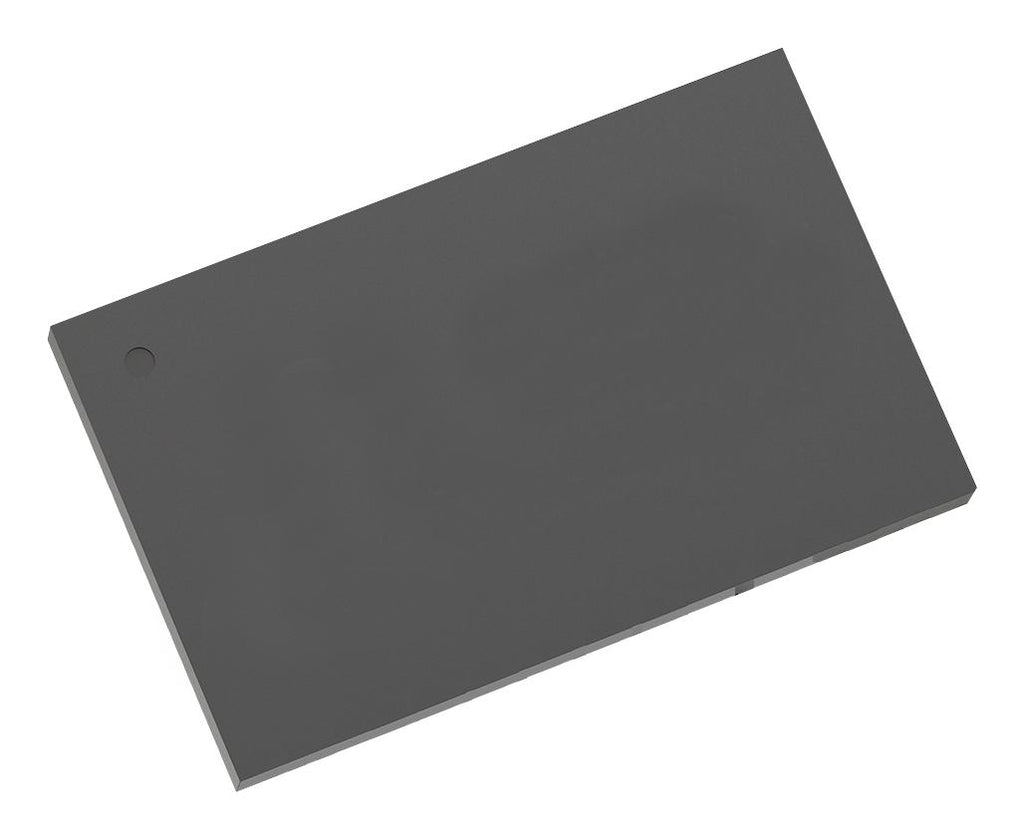

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
