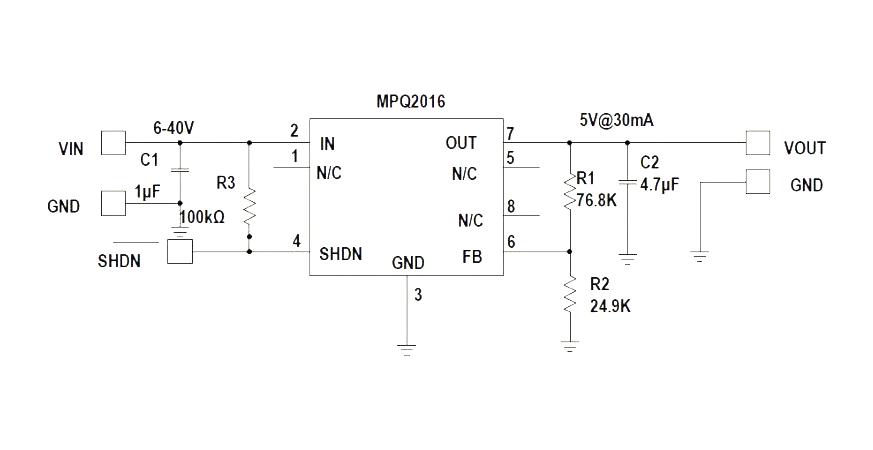

MPQ2016 is a low power linear regulator that supplies power to systems with high voltage batteries. It includes a wide 4V to 40V input range, low dropout voltage and low quiescent supply current. The MPQ2016 provides excellent line transient response time and 50dB power supply rejection ratio (PSRR). The MPQ2016 can be set externally from 1.2V to 24V through a simple resistor divider network. The MPQ2016 also includes thermal shutdown and current limiting fault protection. It is available in QFN-8 package. Applications include notebook computers, smart-battery packs, PDAs, handheld devices and battery-powered systems.
- Guaranteed industrial temp range limits
- 12µA quiescent supply current
- <1.4µA shutdown supply current
- 1.2V to 24V adjustable output
- 30mA output current with 50mA peak current limit
- Better than 0.001%/mA load regulation
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size. Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MPQ2016DD-LF-P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |

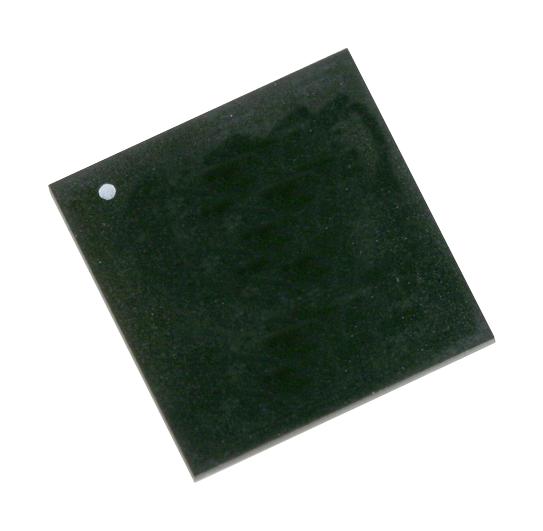

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
