| ₹ 578.47 includes GST and import duties. | |
| B2B customers can avail ₹ 88.22 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
MPQ1923 is an AEC-Q100 qualified, 100V, 8A, high-frequency, half-bridge gate driver. The device�s low-side MOSFET (LS-FET) and high-side MOSFET (HS-FET) driver channels are controlled independently, and are matched with 5ns in time delay. In the case of an insufficient supply, the device�s HS-FET and LS-FET undervoltage lockout (UVLO) protection forces the outputs low. The MPQ1923 also features an integrated bootstrap (BST) diode to reduce the external component count. Applications include motor drivers, telecom half-bridge power supplies, avionics DC/DC converters, two-switch forward converters and active-clamp forward converters.
- Drives an N-channel MOSFET half-bridge
- Low dropout with 4.5V undervoltage lockout (UVLO) falling threshold
- 120V bootstrap voltage (VBST) range, on-chip bootstrap diode
- 20ns typical propagation delay, 8A sink current, 7A source current at 12V VDD
- 5ns gate driver matching time delay
- Drives a 1nF load with 7.2ns rise time (tRISE) and 5.5ns fall time (tFALL) at 12V VDD
- TTL-compatible input, 300µA quiescent current (IQ)
- UVLO protection for the HS-FET and LS-FET gate drivers

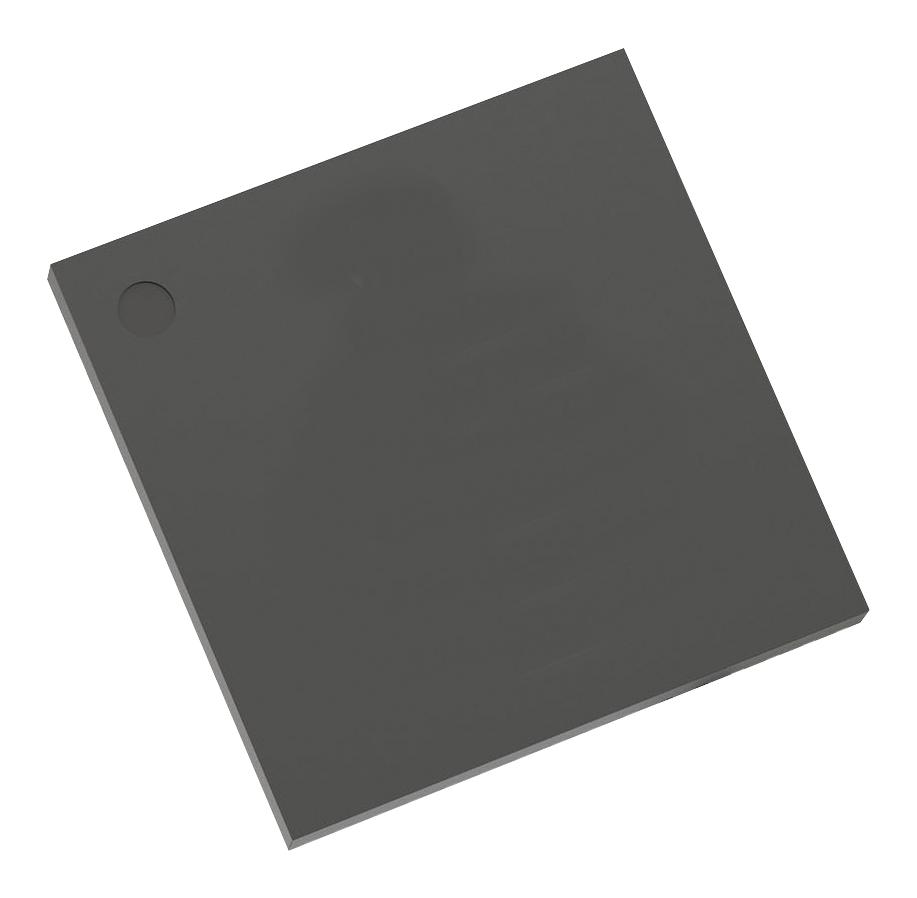

- Available in QFN-8 package
Footnotes
MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size.
Product details
Other details
| Brand | MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number | MPQ1923GR-AEC1-P |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 566.9 |
| 3-5 | ₹ 561.12 |
| 5-10 | ₹ 549.55 |
| 10+ | ₹ 537.98 |
Bulk discount will be automatically applied during checkout based on quantity.
