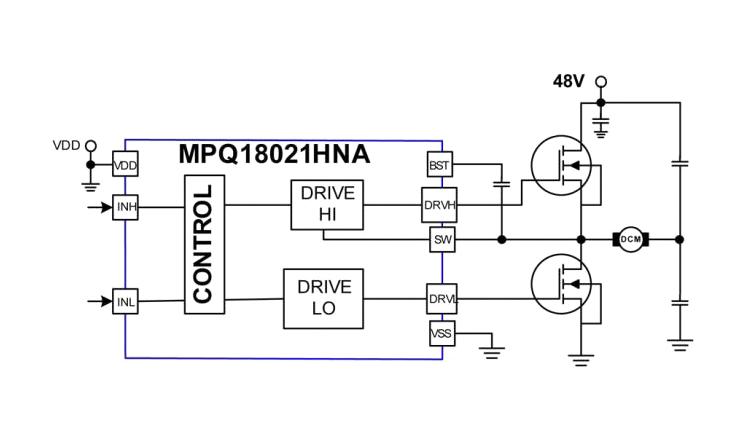

High-frequency, 100V, half-bridge, N-channel power MOSFET driver. Its low-side and high-side driver channels are controlled independently and matched with a time delay of less than 5ns. Under-voltage lockout (UVLO) on both the high-side and low-side supplies force their outputs low in the case of an insufficient supply. The integrated bootstrap diode reduces the external component count.
- AEC-Q100 qualified
- Guaranteed industrial / automotive temperature range limits
- Drives N-channel MOSFET half-bridge
- 100V VBST voltage range, on-chip bootstrap diode
- Typical 16ns propagation delay time, less than 5ns gate drive matching
- Drives 1nf load with 12ns/9ns rise/fall times with 12V VDD
- TTL compatible input
- Less than 160µA quiescent current
- UVLO for both high-side and low-side
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size. Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MPQ18021HN-A-AEC1-LF-P |
| Quantity |
|
| Technical Data Sheet EN |
 |
