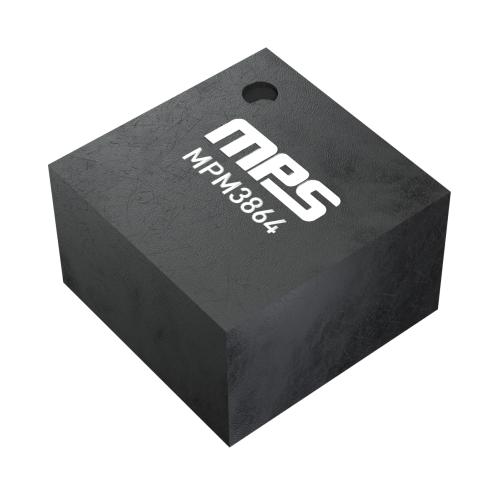

MONOLITHIC POWER SYSTEMS (MPS) MPM3864GPQ-P DC-DC Switching Synchronous Buck Regulator, Adjustable, 2.75 to 7 Vin, 0.6 to 7V / 6A Out, EC LGA-19

MPM3864GPQ-P is a fully integrated, high frequency, synchronous, rectified, step-down power module with an internal inductor. This device is a compact solution that achieves 6A of continuous output current (IOUT) across a wide input voltage (VIN) range with excellent load and line regulation. The MPM3864 has synchronous mode operation for higher efficiency across the IOUT load range. Constant-on-time (COT) control provides very fast transient response and easy loop design, as well as very tight output regulation. Full protection features include short-circuit protection (SCP), over-current protection (OCP), under-voltage lockout (UVLO), and Thermal shutdown. Typical applications are field-programmable gate array (FPGA), power systems, optical modules, telecom, networking, industrial equipment.

• Wide 2.75V to 7V operating input voltage (VIN) range
• 6A output current (IOUT)
• Internal power MOSFETs, output voltage (VOUT) adjustable from 0.6V
• High-efficiency synchronous mode operation, pre-biased start-up
• Forced continuous conduction mode (FCCM) for low VOUT ripple
• Fixed 1200KHz switching frequency (fSW), configurable, external soft-start time (tSS)
• Enable (EN) and power good (PG) for power sequencing
• Over-current protection (OCP) with hiccup mode, Thermal shutdown
• ECLGA-19 package
• Junction temperature (TJ) is 150°C

MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size.
