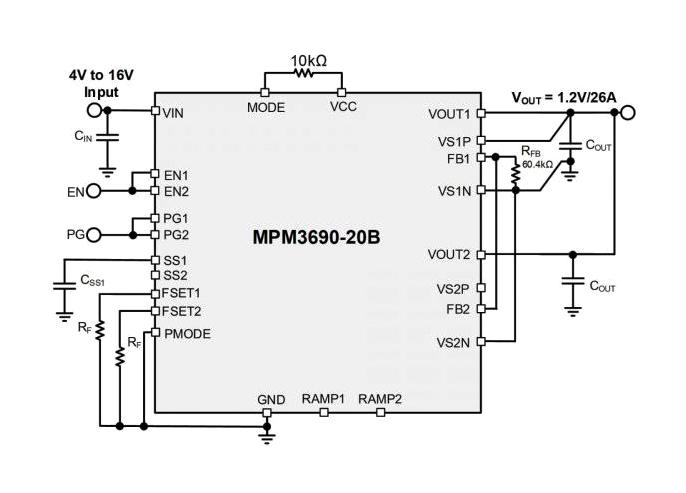

MPM3690-20B is a single 26A output power module that offers a complete power solution with excellent load and line regulation. The MPM3690-20B supports an input range between 4V and 16V and an output range between 0.6V and 3.3V. The voltage of the MPM3690-20's two outputs can be set separately via a single resistor at each output. It is also pin-compatible with the MPM3690-30B (single 36A output) and MPM3690-50B (single 50A output)) power modules. The MPM3690-20B adopts MPS's proprietary, multi-phase constant-on-time (MCOT) control which provides ultra-fast transient response and minimizes the output capacitance. It integrates a monolithic DC/DC converter, power inductor and other passive components. It is available in a BGA (16mm x 16mm x 5.18mm) package. Typical applications include telecom and networking equipment, industrial equipment, FPGA and ASIC power systems.
- 3.2V to 16V input voltage range with external 3.3V VCC bias
- Ultra-fast transient enabled by COT control
- Adjustable switching frequency, adjustable soft-start time
- Overcurrent and overvoltage protection
- Differential remote sense for both output channels
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size. Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MPM3690GBF-20B-T |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
