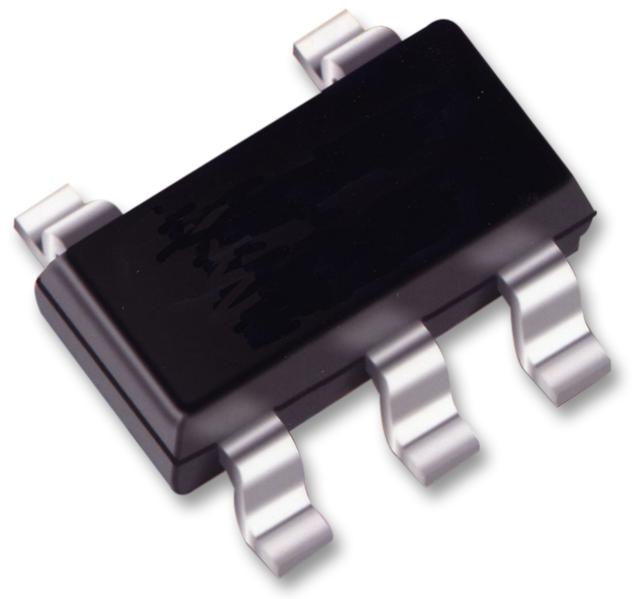

- Low noise, low-dropout linear regulator in 5 pin TSOT-23 package
- 2% accurate output voltage
- High PSRR (70dB at 1KHz, 30dB at 1MHz)
- Better than 0.001%/mA load regulation
- Stable with low ESR output capacitor
- Low 125µA ground current
- Internal thermal protection
Other details
Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
Part Number |
MP8802DJ-3.3-LF-P |
Quantity |
Each (Supplied on Cut Tape) |
Technical Data Sheet EN |
 |
