MP8794 is a fully integrated, high frequency, synchronous, buck converter. It offers a compact solution that achieves up to 20A of output current with excellent load and line regulation over a wide input supply range. MP8794 operates at high efficiency over a wide output current load range. The device adopts an internally compensated constant-on-time control mode that provides fast transient response and eases loop stabilization. Output voltage start-up ramp is controlled by an internal 1ms timer that can be increased by adding a capacitor on REF/TRK. An open drain power good (PGOOD) signal indicates whether the output is within its nominal voltage range. PGOOD is clamped at about 0.7V with an external pull-up voltage when input supply fails to power the MP8794. It is available in a QFN-21 package. Applications include FPGAs, flat-panel televisions and monitors, multi-functional printers, access points, routers and optical modules. MPL-AY1265 inductor series matches best performance.
- Wide input voltage range from 2.7V to 16V with external 3.3V VCC bias
- 4V to 16V with internal bias or external 3.3V VCC bias
- Differential output voltage remote sense, configurable accurate current limit level
- Low RDS(ON) integrated power MOSFETs, adaptive COT for ultra-fast transient response
- Stable with zero-ESR output capacitor, output voltage discharge and excellent load regulation
- Output voltage tracking, programmable soft-start time from 1ms, pre-bias start-up
- Selectable switching frequency from 600KHz, 800KHz and 1000KHz
- Non latch OCP, OVP, UVP, UVLO and thermal shutdown
- Adjustable output from 0.6V to 90% of VIN, up to 5.5V maximum

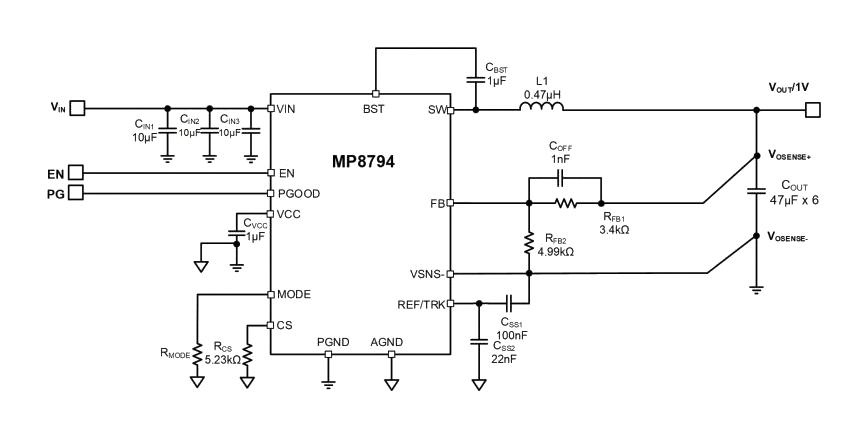

- MP8794 requires a minimal number of readily available, standard external components
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size.
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MP8794GLE-P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |

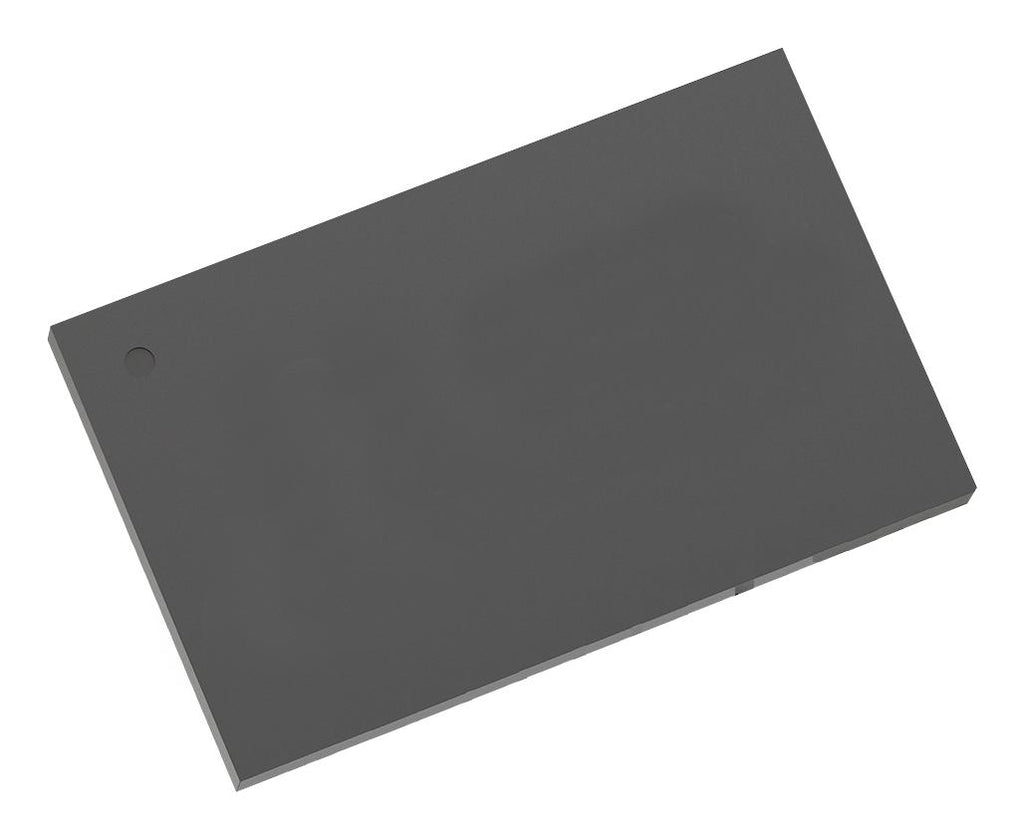

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
