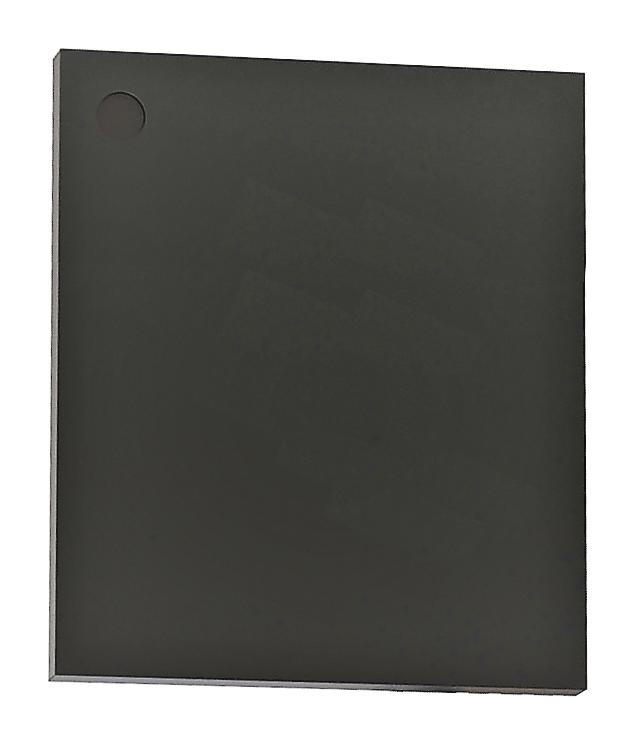

- Synchronous step-down switch mode converter in 20 pin QFN package
- Internal 40mohm high-side, 20mohm low side power MOSFETs
- Proprietary switching loss reduction technology
- 1% reference voltage
- Programmable soft-start time
- Low drop-out mode
- Short circuit/overcurrent/undervoltage/overvoltage protection latch and thermal shutdown
- Fast transient response and good stability for wide input supply and load range
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size. Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MP4470GL-P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
