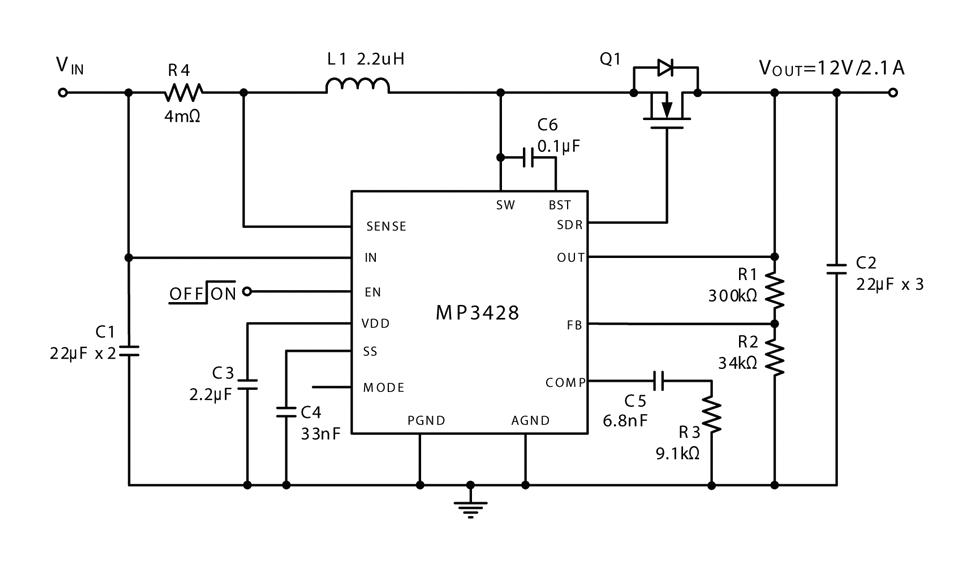

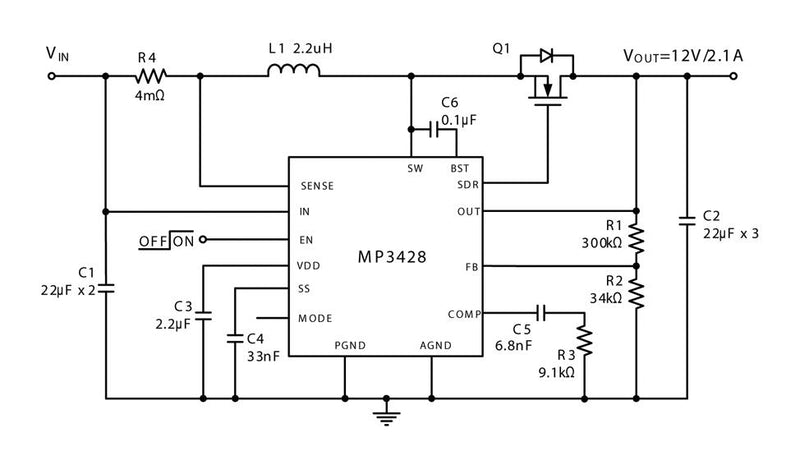

- Synchronous current mode boost converter with input disconnect function in 22 pin QFN package
- Integrated 10mohm low-side power FET
- SDR driver for synchronous solution
- 19A internal switch current limit or external programmable input current limit
- Input disconnect and output SCP
- External soft-start and compensation for higher flexibility
- Programmable UVLO and hysteresis
- less than 1µA shutdown current
- Thermal shutdown at 150°C
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size. Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MP3428AGL-P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
