MP3383 is a step-up controller with four LED current channels, designed to drive WLED arrays for large LCD panel backlighting applications. The MP3383 can expand the number of LED channels with two or more ICs in parallel sharing a single power source. The MP3383 employs peak current control mode with a fixed switching frequency (fSW) that is configurable via an external setting resistor. The MP3383 drives an external MOSFET to boost up the output voltage (VOUT) from a 6V to 33V input voltage (VIN) supply. It also regulates the current in each LED string to the value set by an external current-setting resistor. The MP3383 applies four internal current sources for current balancing. The current matching achieves 1.8% regulation accuracy among strings. The low regulation voltage on the LED current sources reduces power loss. Applications include desktop LCD flat-panel displays, all-in-one PCs, 2D and 3D LCD TVs.
- 4-string, maximum 400mA/string WLED driver, 6V to 33V input voltage (VIN) range
- 12V gate voltage (VGATE) (VIN > 13V
- 80V absolute maximum rating for each string
- 1.8% current matching accuracy between each string
- 3% current accuracy, direct PWM dimming
- Analog dimming mode with PWM input, cascading capability with a single power source
- LED open and short protection
- Configurable recoverable overvoltage protection (OVP), overtemperature protection (OTP)
- Short inductor and diode protection
- SOIC-16 package style
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size.
Product details
| Device Topology |
Boost (Step Up) |
| Input Voltage Min |
6V |
| Input Voltage Max |
33V |
| Output Voltage Max |
80V |
| Output Current Max |
400mA |
| Switching Frequency |
500kHz |
| No. of Outputs |
4Outputs |
| IC Mounting |
Surface Mount |
| Driver Case Style |
SOIC |
| No. of Pins |
16Pins |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
125°C |
| Product Range |
- |
| Automotive Qualification Standard |
- |
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MP3383GS-P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |

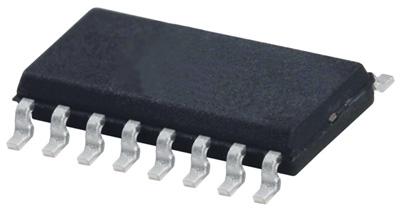

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
