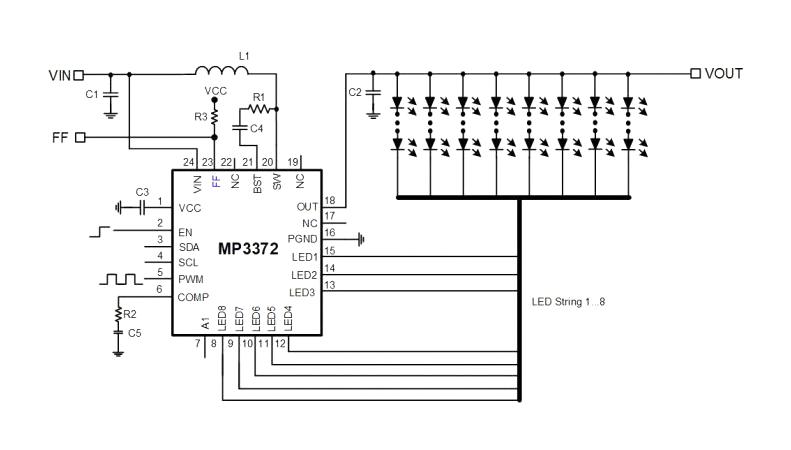

MP3372 is a synchronous boost converter with eight current channels designed to drive WLED arrays for LCD panels in tablets and notebook backlighting applications. The MP3372 uses peak current mode and pulse-width modulation (PWM) control to regulate the boost converter. The device employs a standard I2C digital interface to set the operation mode, switching frequency, fullscale current, synchronous or asynchronous mode, dimming mode and duty, and various protection thresholds. The MP3372 features high efficiency due to the low headroom voltage for LED regulation and the switching MOSFET's small on resistance. The synchronous rectifier saves PCB size and total BOM cost. The MP3372 is available in a QFN-24 (4mmx4mm) package. Typically used in automotive displays.
- 8-channel, 50V sync-boost WLED driver with I2C interface
- 8 channels with maximum 50mA/channel
- Synchronous converter with 50V LSFET/HS-FET with 150mohm/230mohm on-resistance
- 3V to 30V input voltage range, maximum 2.5% current matching
- 350KHz, 500KHz, 650KHz, 800KHz, 950KHz, 1.2MHz, 1.8MHz, or 2.4MHz selectable switching frequency
- 0mA to 50mA full-scale LED current, 8bit, 0.196mA/step
- Selectable synchronous or asynchronous mode
- Unused LED strings auto-disabled at start-up
- LED short, open, OTP, OCP, inductor or diode short protection
- Cascade function to share power stage
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size.
Product details
| Device Topology |
Synchronous Boost (Step Up) |
| Input Voltage Min |
3V |
| Input Voltage Max |
30V |
| Output Voltage Max |
- |
| Output Current Max |
50mA |
| Switching Frequency |
650kHz |
| No. of Outputs |
8Outputs |
| IC Mounting |
Surface Mount |
| Driver Case Style |
QFN |
| No. of Pins |
24Pins |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
125°C |
| Product Range |
- |
| Automotive Qualification Standard |
- |
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MP3372GR-0000-P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
