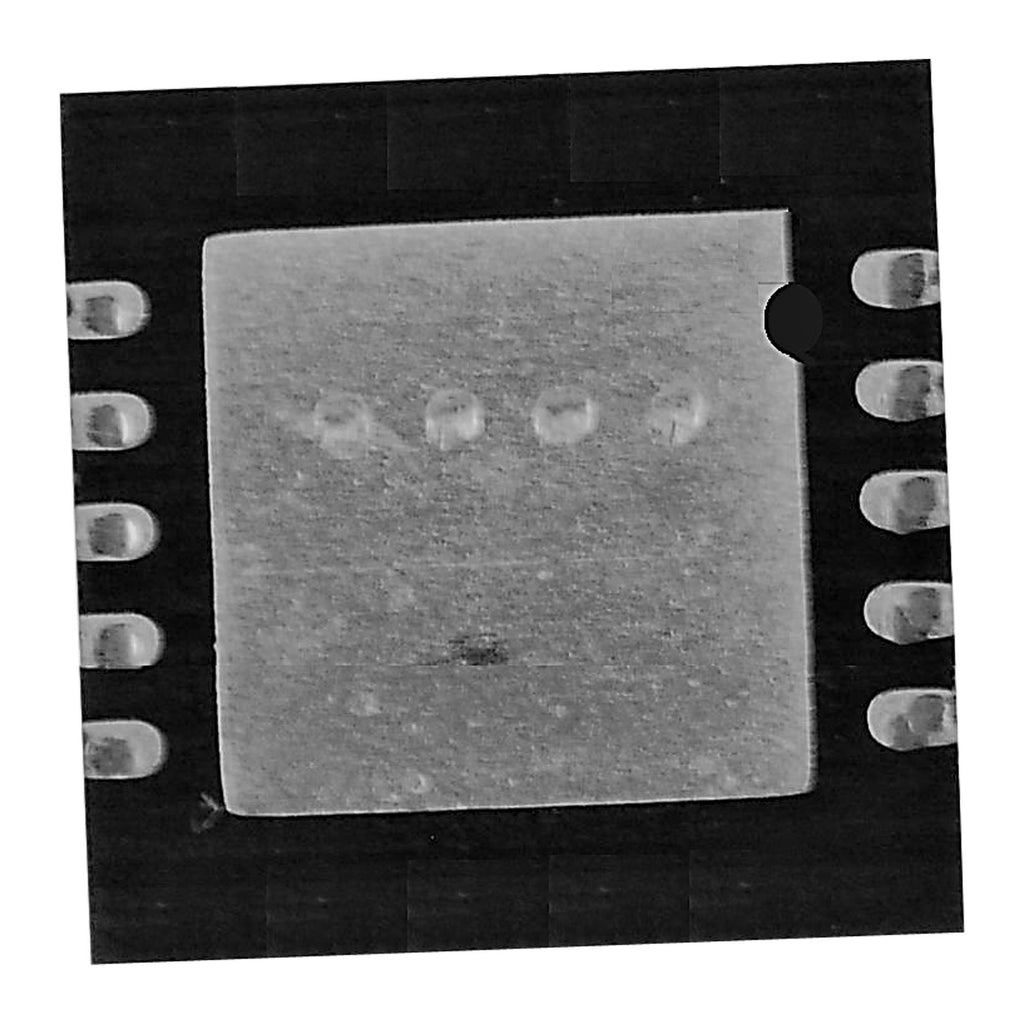

- Monolithic step-up white LED driver with true PWM dimming in 10 pin QFN package
- Internal 0.3ohm power MOSFET
- Drives up to 12 series white LEDs
- Up to 93% efficiency
- True PWM dimming
- Adjustable switching frequency
- Adjustable open load shutdown voltage
- Internal 1.3A current limit
- Undervoltage lockout, current limiting and thermal overload protection
- Current mode, fixed frequency architecture
Product details
| Device Topology |
Boost (Step Up) |
| Input Voltage Min |
4.5V |
| Input Voltage Max |
25V |
| Output Voltage Max |
- |
| Output Current Max |
1.3A |
| Switching Frequency |
1MHz |
| No. of Outputs |
1Outputs |
| IC Mounting |
SMD |
| Driver Case Style |
QFN |
| No. of Pins |
10Pins |
| Operating Temperature Min |
-20°C |
| Operating Temperature Max |
125°C |
| Product Range |
- |
| Automotive Qualification Standard |
- |
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MP3310EQ-LF-P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
