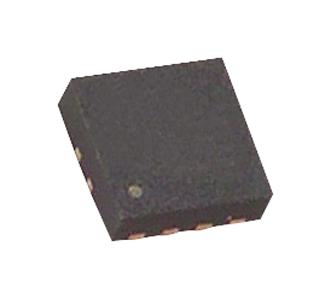

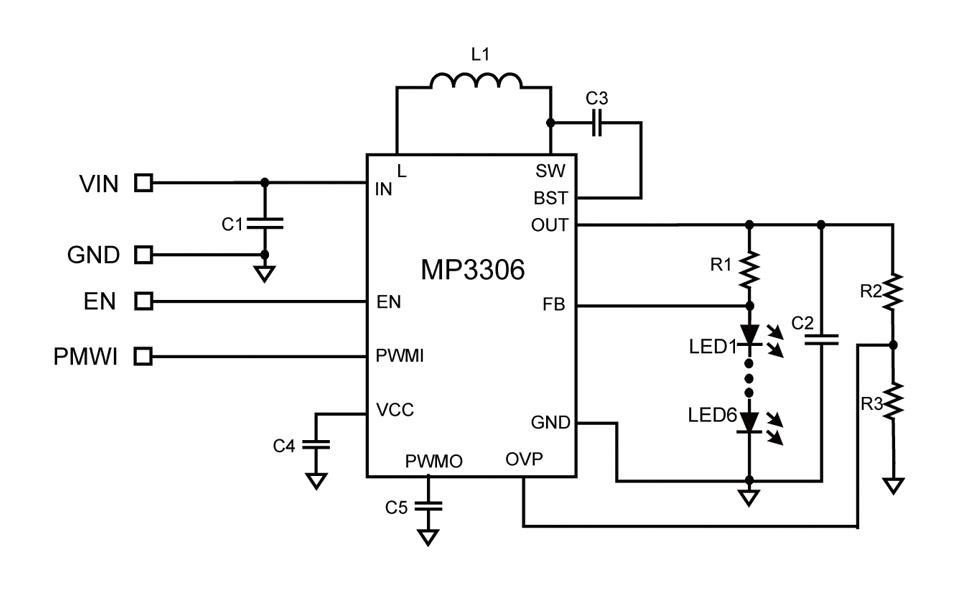

- Synchronous step-up white LED driver in 12 pin QFN package
- Analog dimming and PWM dimming
- Output to input disconnect in shutdown mode
- Programmable open load shutdown
- Output short protection
- Low 202mV feedback voltage with ±3% accuracy
- Undervoltage lockout and thermal overload protection
- Current mode, fixed frequency architecture
- Current limiting
Product details
| Device Topology |
Synchronous Boost (Step Up) |
| Input Voltage Min |
3V |
| Input Voltage Max |
12V |
| Output Voltage Max |
30V |
| Output Current Max |
- |
| Switching Frequency |
690kHz |
| No. of Outputs |
1Outputs |
| IC Mounting |
SMD |
| Driver Case Style |
QFN |
| No. of Pins |
12Pins |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
125°C |
| Product Range |
- |
| Automotive Qualification Standard |
- |
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MP3306EG-LF-P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
