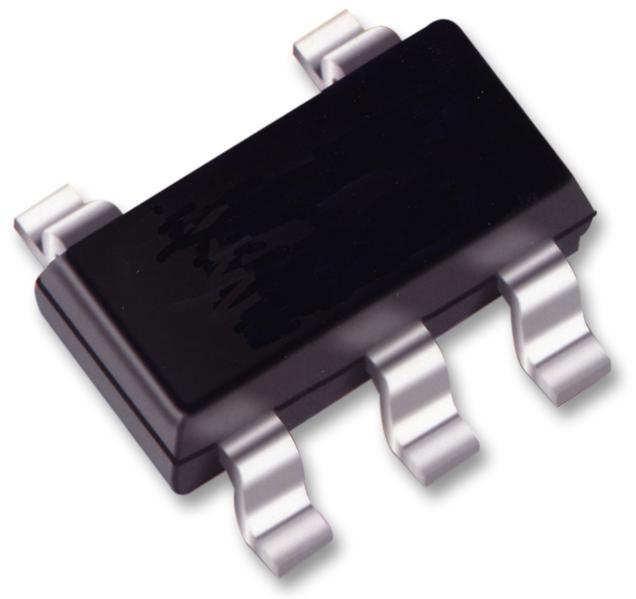

- Single cell step-up white LED driver with single wire dimming control in 5 pin TSOt-23 package
- Internal power MOSFET

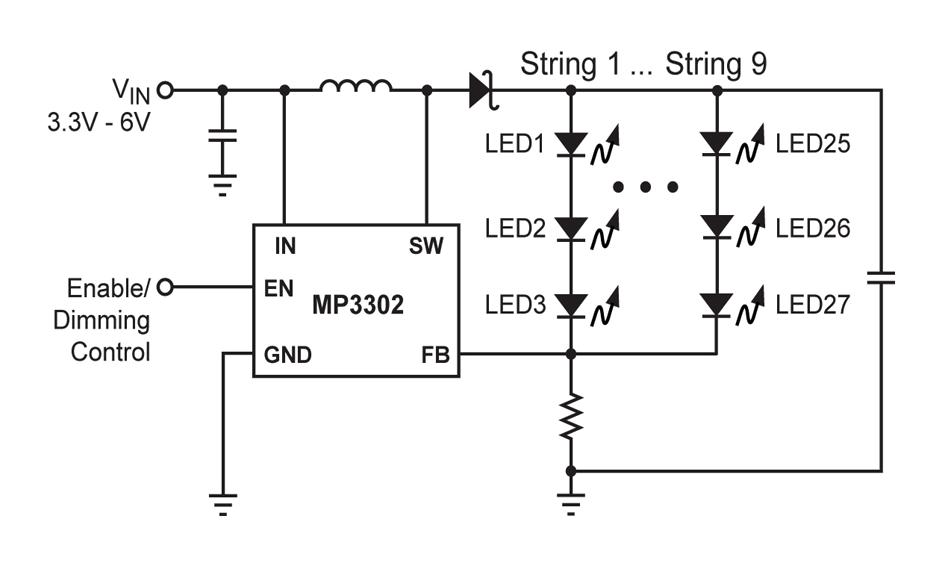

- Drives up to 10 series white LEDs
- Up to 87% efficiency
- Open load shutdown
- Low 200mV feedback voltage
- Undervoltage lockout, current limiting and thermal overload protection
- Internal 1.3A current limit
Product details
Device Topology |
Boost (Step Up) |
Input Voltage Min |
2.5V |
Input Voltage Max |
6V |
Output Voltage Max |
36V |
Output Current Max |
1.3A |
Switching Frequency |
1.3MHz |
No. of Outputs |
1Outputs |
IC Mounting |
SMD |
Driver Case Style |
TSOT-23 |
No. of Pins |
5Pins |
Operating Temperature Min |
-40°C |
Operating Temperature Max |
125°C |
Product Range |
- |
Automotive Qualification Standard |
- |
Other details
Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
Part Number |
MP3302DJ-LF-P |
Quantity |
Each (Supplied on Cut Tape) |
Technical Data Sheet EN |
|
