MP2348 is a fully integrated, high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a compact solution to achieve 4A of continuous output current across a wide input range, with excellent load and line regulation. The MP2348 has synchronous mode operation for higher efficiency across the output current load range. Constant-on-time (COT) control provides fast transient response and easy loop design, as well as tight output regulation. Full protection features include short circuit protection (SCP), over-current protection (OCP), under-voltage protection (UVP) and thermal shutdown. The MP2348 requires a minimal number of readily available, standard external components and is available in a space-saving SOT583 (1.6mm x 2.1mm) package. Typical applications include game consoles, digital set-top boxes, general purpose, flat-panel televisions and monitors.
- Wide 4.2V to 24V operating input range
- 75mohm/40mohm low RDS(ON) internal power MOSFETs
- 200µA low IQ, high efficiency synchronous mode operation
- Selectable forced PWM, auto-PFM/PWM and ultrasonic mode
- Fast load transient response, 650KHz switching frequency
- Configurable soft-start time
- Pre-biased start-up
- MPL-AL6050 inductor series matches best performance
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size. Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MP2348GTL-P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |

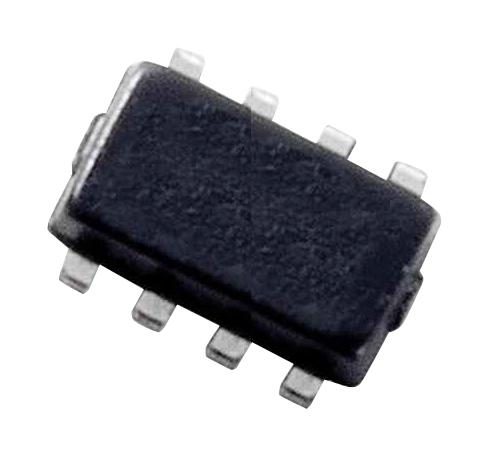

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
