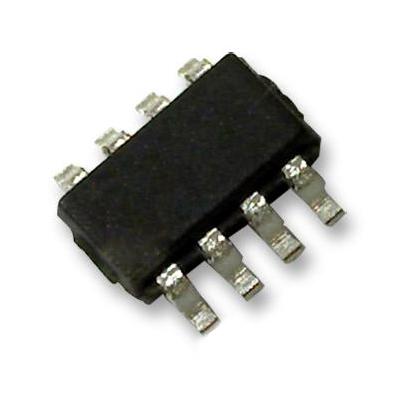

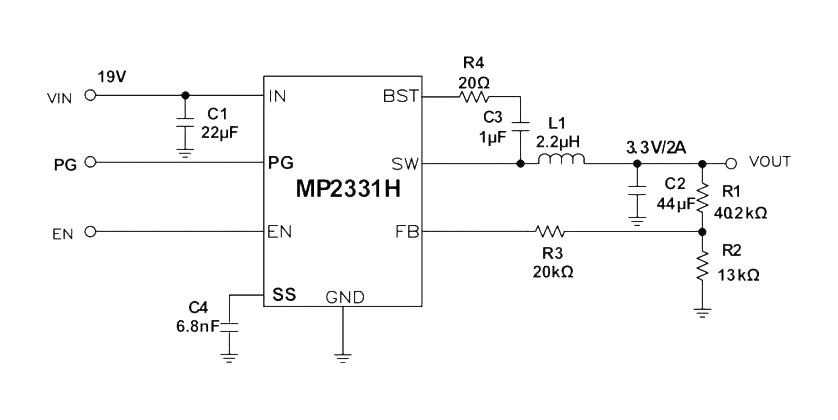

MP2331H is a fully integrated, high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. The MP2331H offers a very compact solution that achieves 2A of continuous output current with excellent load and line regulation over a wide input range. The MP2331H uses synchronous mode operation for higher efficiency over the output current load range. Constant-on-time (COT) control operation provides very fast transient response, easy loop design, and very tight output regulation. Full protection features include short-circuit protection (SCP), overcurrent protection (OCP), undervoltage protection (UVP) and thermal shutdown. The MP2331H requires a minimal number of readily available, standard, external components and is available in a space-saving SOT-583 package. Applications include game consoles, digital set-top boxes, flat-panel television, monitors and general purposes use.
- Wide 4.2V to 24V operating input range
- 110mohm/45mohm low RDS(ON) internal power MOSFETs
- 200µA low IQ
- High efficiency synchronous mode operation
- Fast load transient response, 1.2MHz switching frequency, TON extension
- Forced PWM operation, programmable soft-start time
- Power good (PG) indication
- Pre-bias start-up
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size. Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MP2331HGTL-Z |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
