The MP2018 is a low-power linear regulator that supplies power to systems with high-voltage batteries. The MP2018 includes a wide input voltage range, low dropout voltage and low quiescent supply current. The low quiescent current and low dropout voltage allow the MP2018 to operate at extremely low power levels. Therefore, the MP2018 is ideal for low-power microcontrollers and battery-powered equipment. The regulator output current is limited internally and the device is protected against short-circuit, overload and over-temperature conditions. The MP2018 also includes thermal shutdown and current-limiting fault protection.
- 10µA quiescent supply current
- Stable with low-value output ceramic capacitor (>0.47µF)
- 5V fixed output voltage
- Output ±2% accuracy
- Specified current limit
- Power good output
- Programmable power good delay time
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size. Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MP2018GZD-5-Z |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |

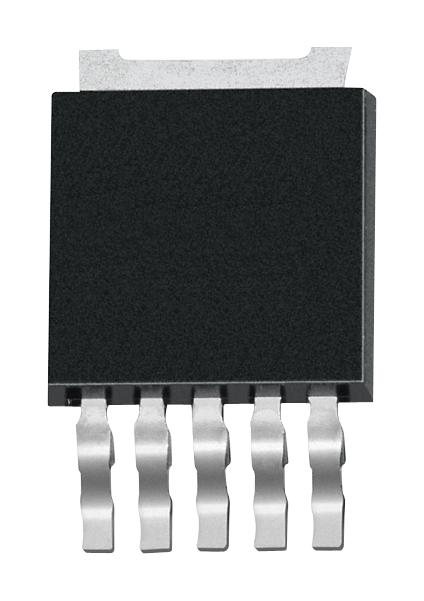

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
