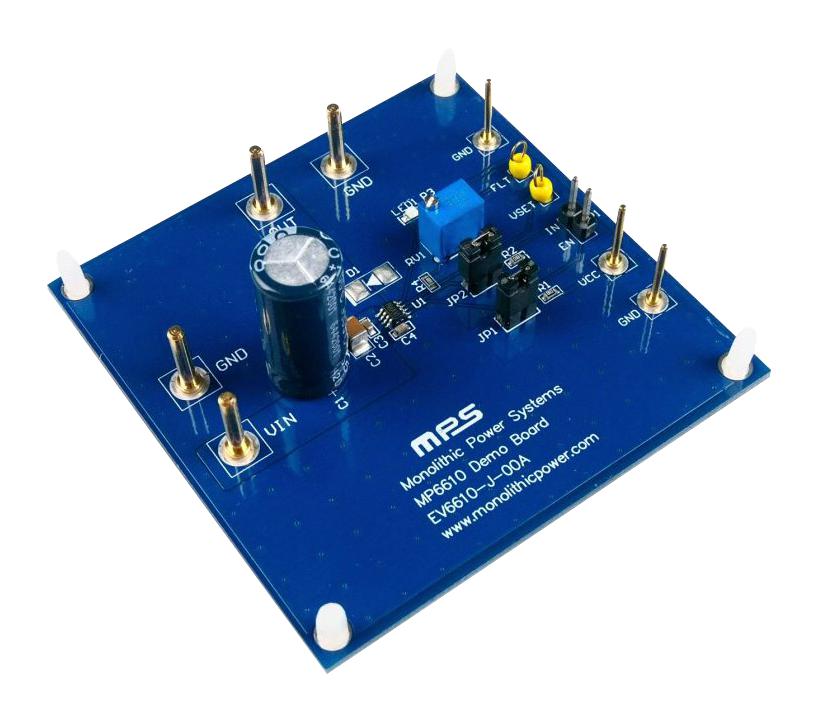

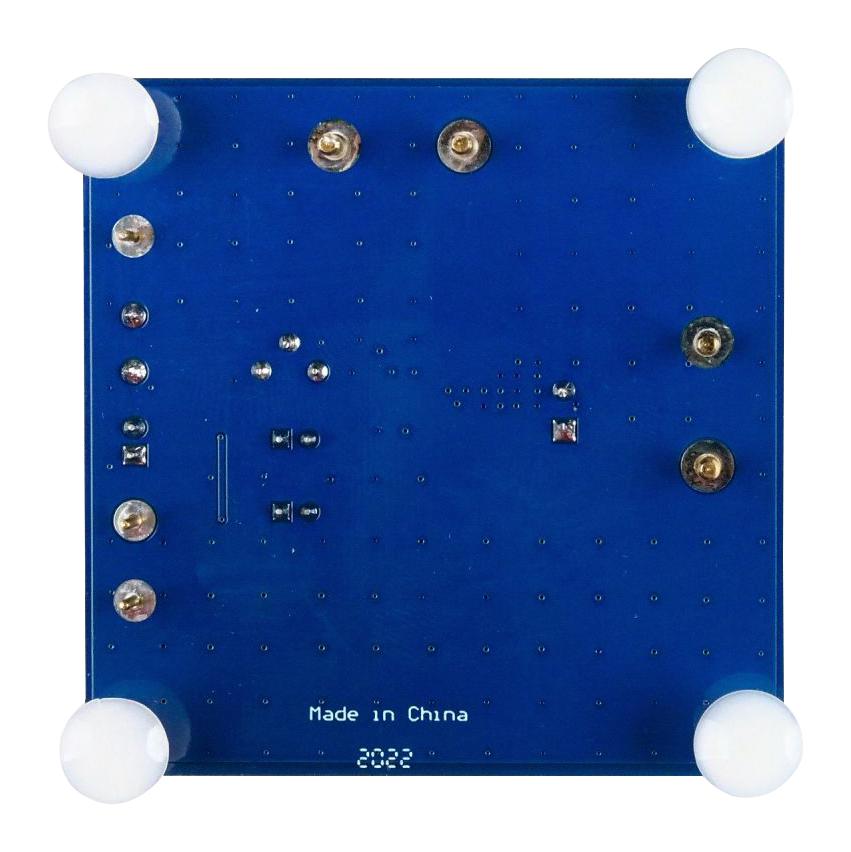

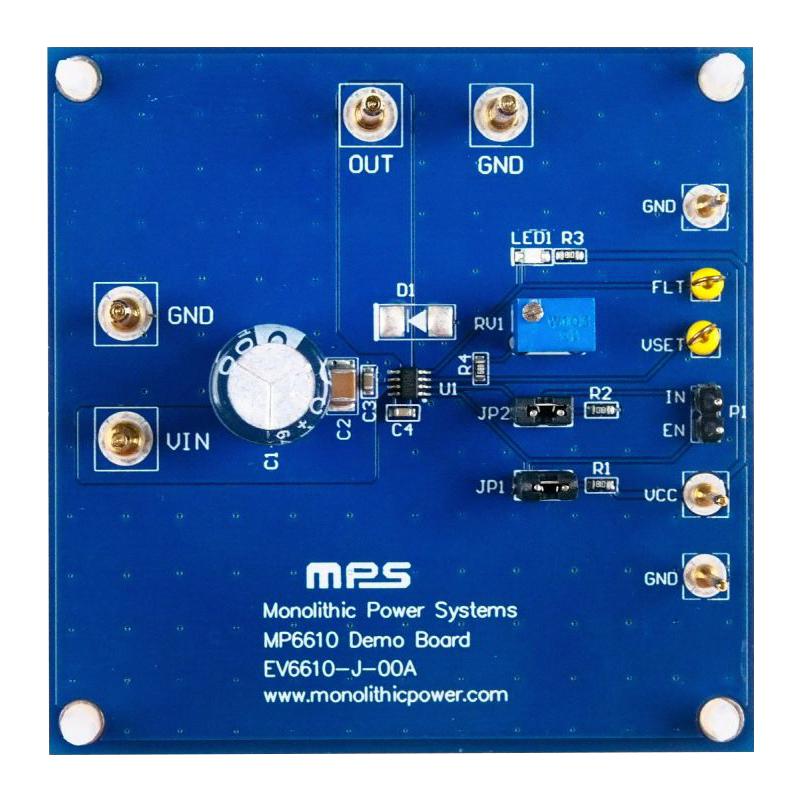

EV6610-J-00A is an evaluation board for the MP6610GJ, a half-bridge power driver. The EV6610-J-00A operates from a supply voltage of up to 45V and can deliver load currents up to 3A. The input control signals for the MP6610 are either generated on the board, or from an external controller through the board's connector (P1). Applications include solenoid drivers, brushed DC motors and relay drivers.
- Wide 4V to 45V input voltage range
- Internal current sense
- 2.5V, 3.3V and 5V compatible logic supply
- Overcurrent protection (OCP), overvoltage protection (OVP), overtemperature protection (OTP)
- Fault indication output
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size.
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
EV6610-J-00A |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
