Description

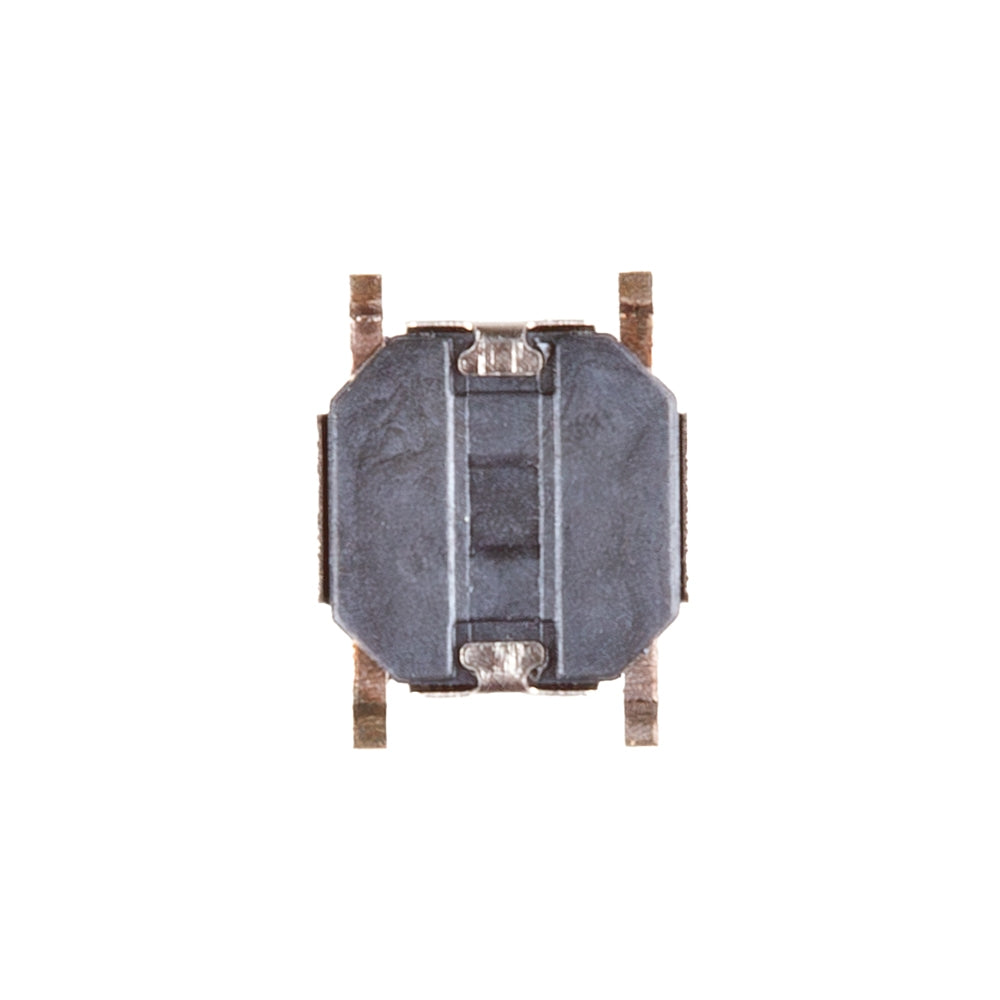

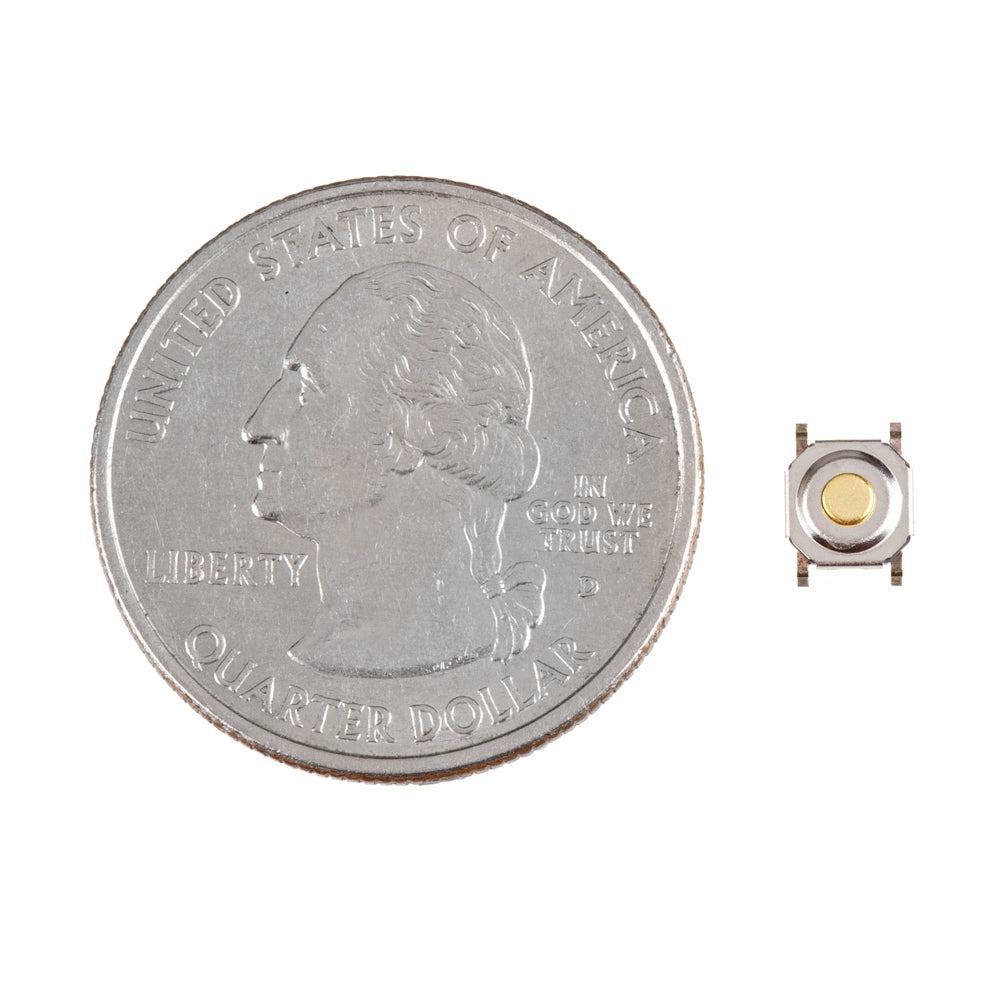

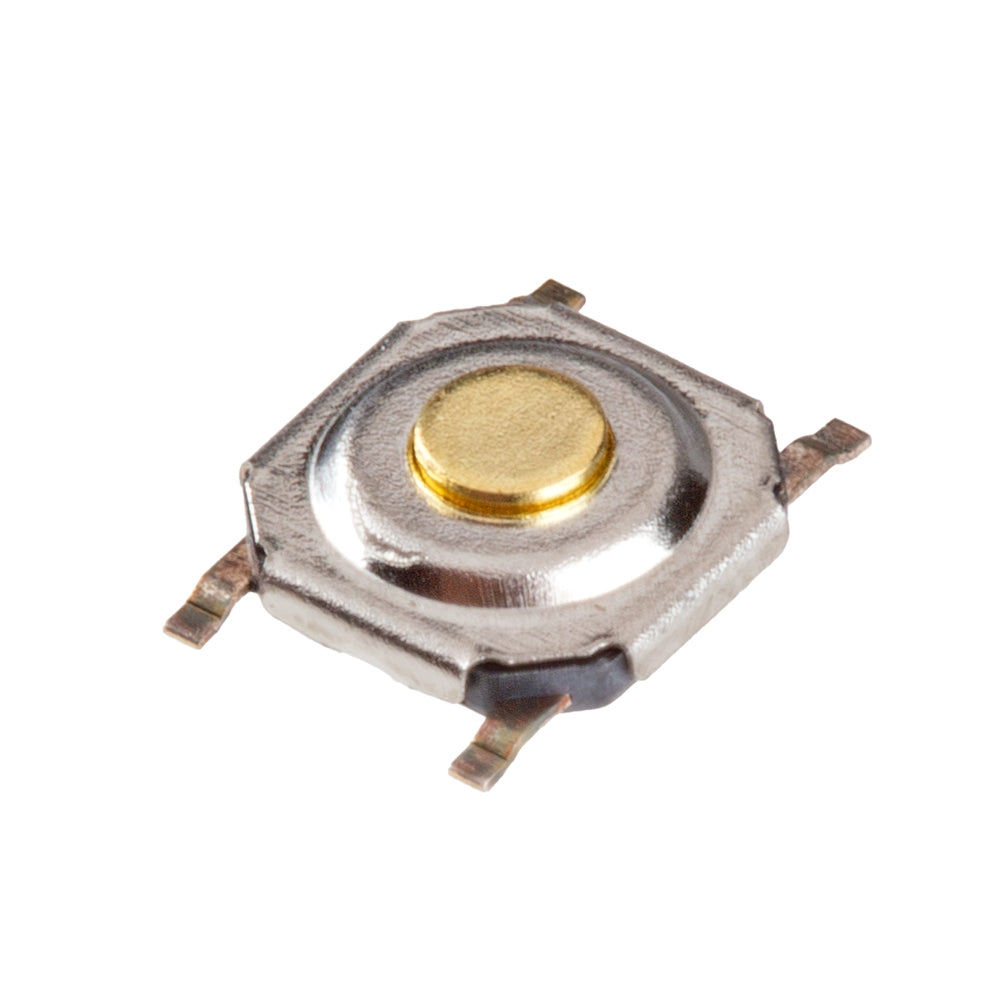

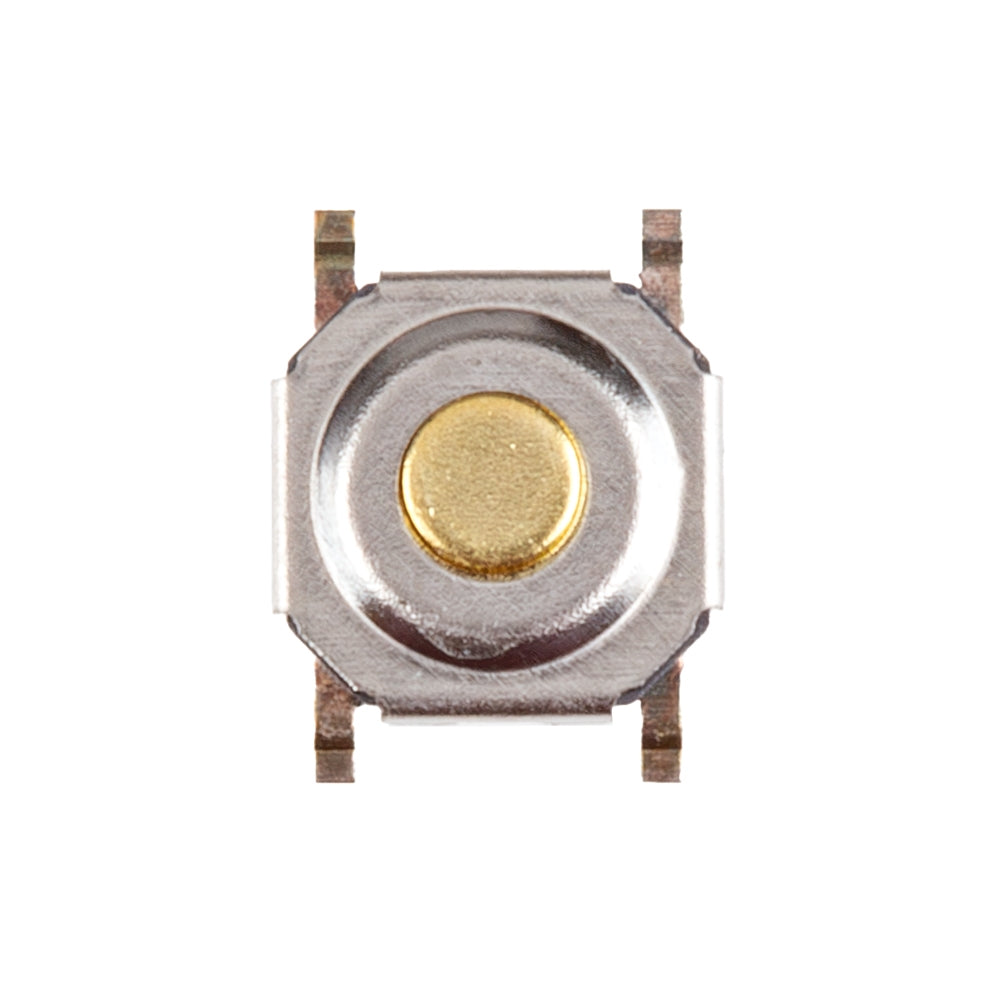

A compact (5.25mm), low-profile SMD tactile button with a high-durability rating of 1 million cycles, perfect for reliable user input.
Features & Specs
- Circuit: SPST-NO
- Switch Function: Off-Mom
- Contact Rating @ Voltage: 0.02A @ 15VDC
- Actuator Type: Standard
- Mounting Type: Surface Mount
- Actuator Height off PCB, Vertical: 1.50mm
- Actuator Orientation: Top Actuated
- Termination Style: Gull Wing
- Outline: 5.25mm x 5.25mm
- Operating Force: 160gf
- Operating Temperature: -20°C ~ 70°C
- Actuator Material: Polyamide (PA66), Nylon 6/6
- Switch Travel: 0.25mm
- Mechanical Life: 1,000,000 Cycles
- Base Product Number: PTS525
Features & Specs
- Circuit: SPST-NO
- Switch Function: Off-Mom
- Contact Rating @ Voltage: 0.02A @ 15VDC
- Actuator Type: Standard
- Mounting Type: Surface Mount
- Actuator Height off PCB, Vertical: 1.50mm
- Actuator Orientation: Top Actuated
- Termination Style: Gull Wing
- Outline: 5.25mm x 5.25mm
- Operating Force: 160gf
- Operating Temperature: -20°C ~ 70°C
- Actuator Material: Polyamide (PA66), Nylon 6/6
- Switch Travel: 0.25mm
- Mechanical Life: 1,000,000 Cycles
- Base Product Number: PTS525
