Description

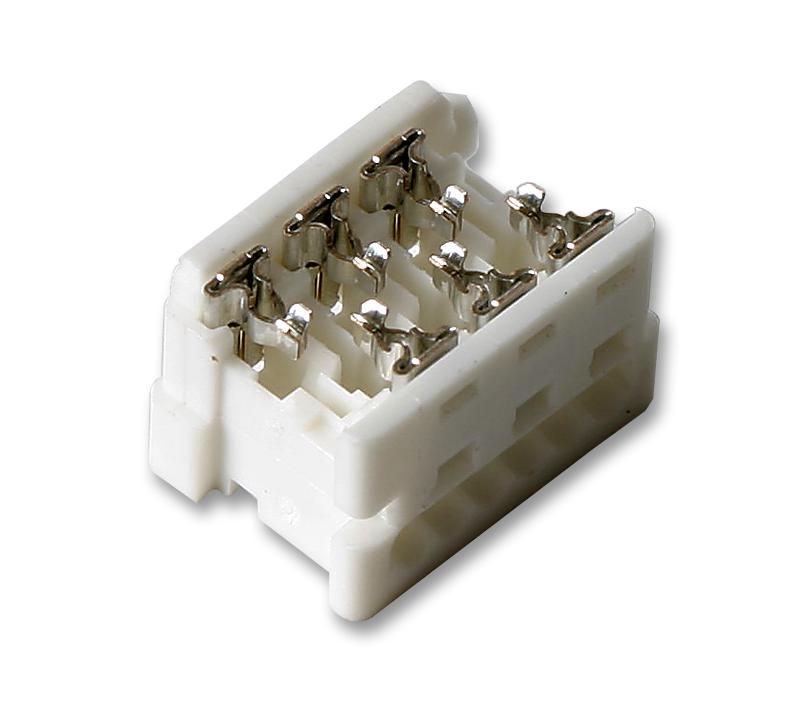

The 90327-0306 from Molex is a 1.27mm pitch, dual row 6 circuits Picoflex PF-50 low profile IDT receptacle. Mates with low profile vertical 90325, low profile right angle 90800, 90715, 90814, 90779, 91714 Picoflex PF-50 header.
- White colour polyester resin
- Operating temperature range from -40°C to 105°C
- Phosphor bronze tin plated contacts
- Accommodates wire size of 26AWG & 28AWG
- Current rating is 1.2A
- Voltage rating is 250V
- UL, CSA certified
Automotive, Communications & Networking, Consumer Electronics, Industrial, Medical
Other details
| Brand | MOLEX |
| Part Number | 90327-0306 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Technical Data Sheet EN | |
| 3D Product Image EN | |
| Drawing EN | |
| Product Change Notice EN | |
| CAD Multiple Formats EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 37.62 |
| 3-5 | ₹ 37.24 |
| 5-10 | ₹ 36.47 |
| 10+ | ₹ 35.7 |
Bulk discount will be automatically applied during checkout based on quantity.
