Description

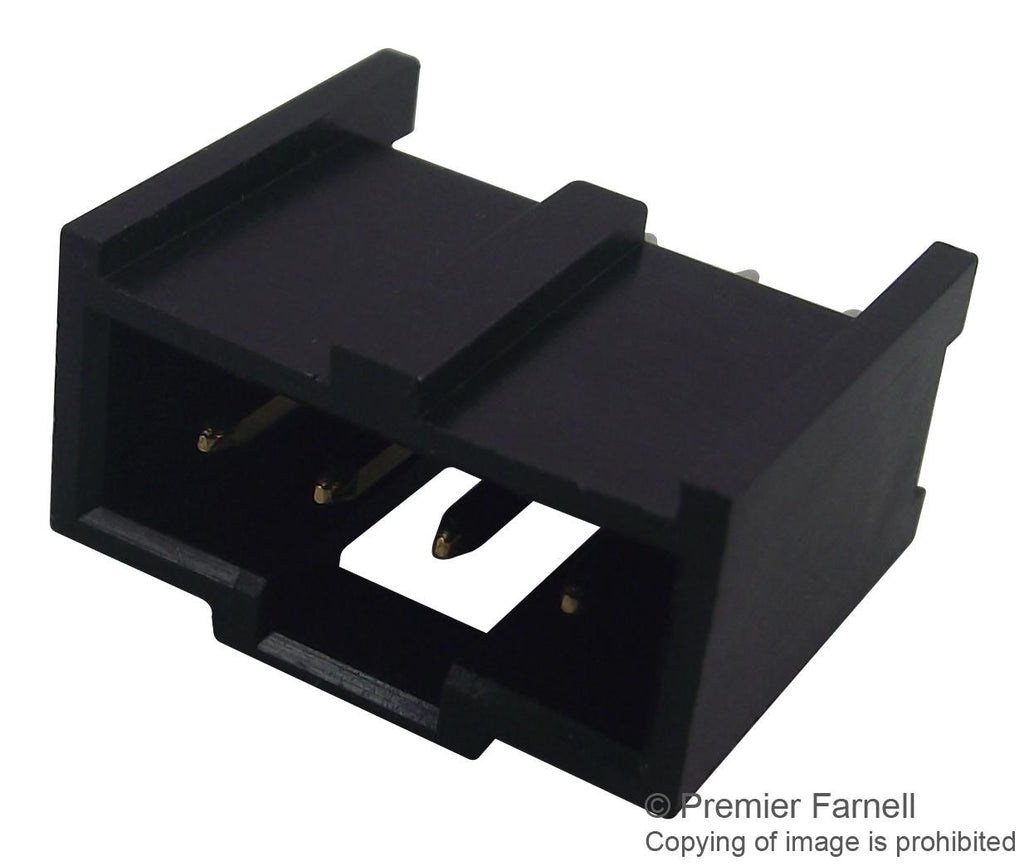

The 90136-1204 is a 4-way 1-row C-Grid III� Vertical Header with selective 0.38µm gold-plated (Au) brass contacts, 2.90mm PC tail length, 2.54mm pitch, through hole and black polyester housing. This vertical header is suitable for signal and wire-to-board. Mates with 90123 C-Grid III� modular crimp housing and 90156 C-Grid III� crimp housing.
- UL94V-0 Flammability rating
- Fully shrouded
- 3A Maximum current per contact
- 350VAC/DC Maximum voltage
Applications
Industrial
Product details
| No. of Contacts | 4Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Header |
| Product Range | C-Grid III 90136 Series |
| Contact Material | Brass |
| Contact Termination Type | Through Hole |
| Pitch Spacing | 2.54mm |
| No. of Rows | 1Rows |
Other details
| Brand | MOLEX |
| Part Number | 90136-1204 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
