| ₹ 216.15 includes GST and import duties. | |
| B2B customers can avail ₹ 32.96 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

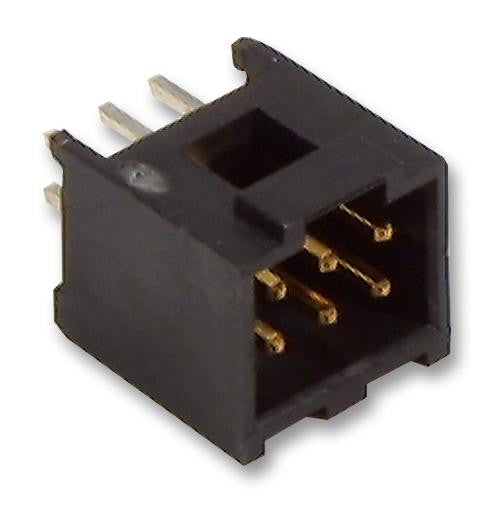

The 90130-1206 is a 6-circuit 2-row C-Grid III� Vertical Header with gold-plated copper contacts and through hole termination. This 90130 series PCB header is made of polyester, mates with 90142 C-Grid III� crimp housing, suitable for signal and wire-to-board applications. The C-Grid III has been developed to meet the latest industry requirements. Headers will accept both discrete wire and ribbon cable connectors. C-Grid III box contact design employs the same mating concept with all termination techniques. A uniform locking system on all contacts allows full interchangeability inside different housing styles. C-Grid III is fully compatible with the industry standard DIN41651 as well as the French norm HE-13/14. Moreover, it is fully intermateable/interchangeable with Molex's QF-50 product range.
- Black colour
- UL94V-0 Flammability rating
- 3A Current rating per contact
- 350VAC/DC Voltage rating
- -55 to 125°C Temperature range
Applications
Commercial, Sensing & Instrumentation, Consumer Electronics
Product details
| No. of Contacts | 6Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Header |
| Product Range | C-Grid III 90130 Series |
| Contact Material | Copper |
| Contact Termination Type | Through Hole |
| Pitch Spacing | 2.54mm |
| No. of Rows | 2Rows |
Other details
| Brand | MOLEX |
| Part Number | 90130-1206 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 211.83 |
| 3-5 | ₹ 209.67 |
| 5-10 | ₹ 205.34 |
| 10+ | ₹ 201.02 |
Bulk discount will be automatically applied during checkout based on quantity.
