Description

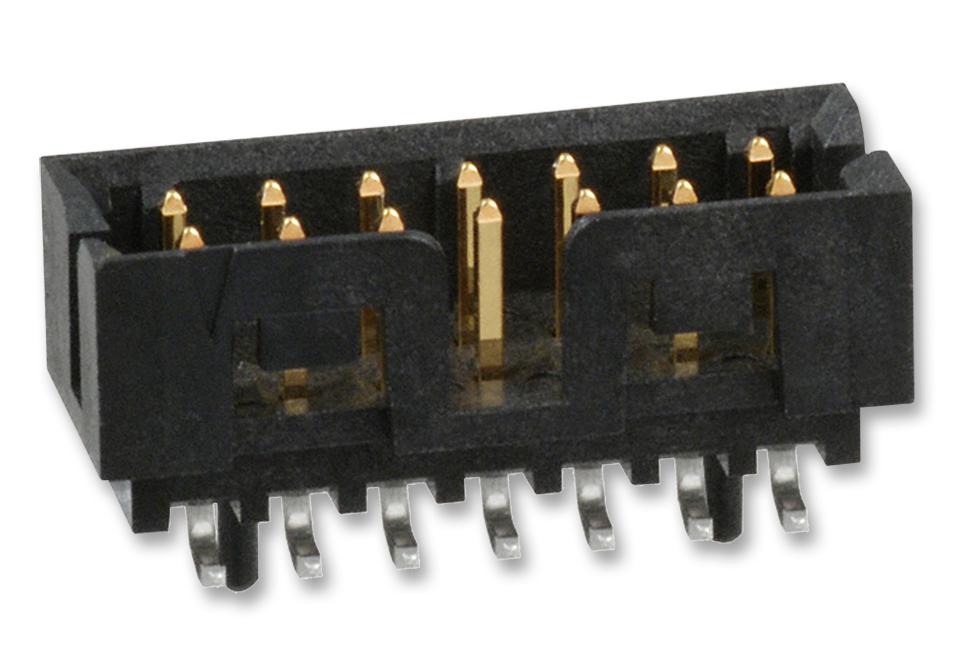

The 87832-5622 from Molex is a Milli-Grid fully shrouded dual row header. This header is made of phosphor bronze material with gold plating and tin termination plating. It mates with Milli-Grid vertical through hole receptacle 79107, 78787, Milli-Grid flex-to-board vertical receptacle 79108, Milli-Grid vertical surface mount receptacle 79109, 78788, Milli-Grid crimp housing 51110, Milli-Grid cable-to-board receptacle 87568.
- Early entry system crimp terminals
- Centre polarization key
- Locking ramps
- Centre polarization slot
- Locking windows
- Marking feature
- Maximum 2A current per contact, maximum 125V voltage
- Nylon resin
- Lock to mating part with side and centre windows, PCB locator and with centre polarization slot
Automotive, Consumer Electronics, Telecommunications
Other details
| Brand | MOLEX |
| Part Number | 87832-5622 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
| CAD Multiple Formats EN | |
| Product Change Notice EN | |
| Drawing EN | |
