Description

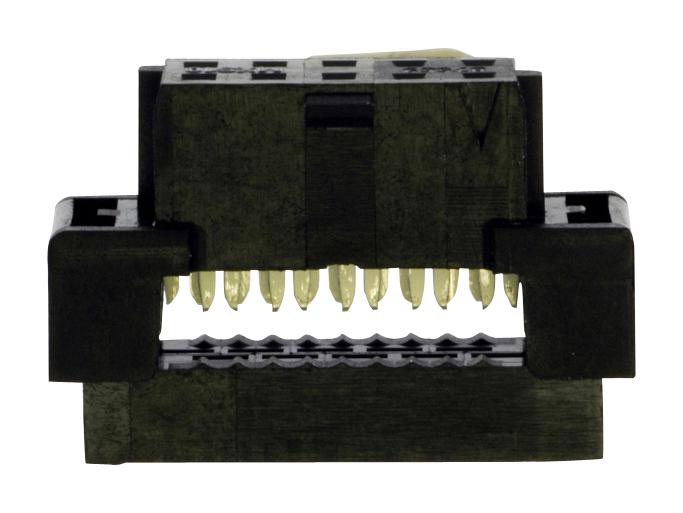

The 87568-1493 is a 14-circuit 2-row 2mm pitch Milli-Grid� Cable-to-board Receptacle, with center polarization key and locking friction ramp, gold-plated copper alloy contacts and IDT termination. This 87568 series receptacle is made of polyester, mates with 87831 vertical PCB header, 87832 surface mount PCB header, 87833 right angle PCB header. The high-density Milli-Grid� connector system based on a 2 by 2mm grid pattern that offers complete design flexibility for wire-to-board, board-to-board and cable-to-board applications.
- Early entry system crimp terminals - Provides longer pin wipe for a more reliable contact
- Center polarization key - Prevents mismating
- Locking ramps - Provides strong retention force to header
- Black colour
- UL94V-0 Flammability rating
- 1A Current rating per contact
- 125V Voltage rating
- -20 to 85°C Temperature rating
Automotive, Audio, Consumer Electronics, Communications & Networking
Other details
| Brand | MOLEX |
| Part Number | 87568-1493 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| 3D Product Image EN | |
| CAD Multiple Formats EN | |
