Description

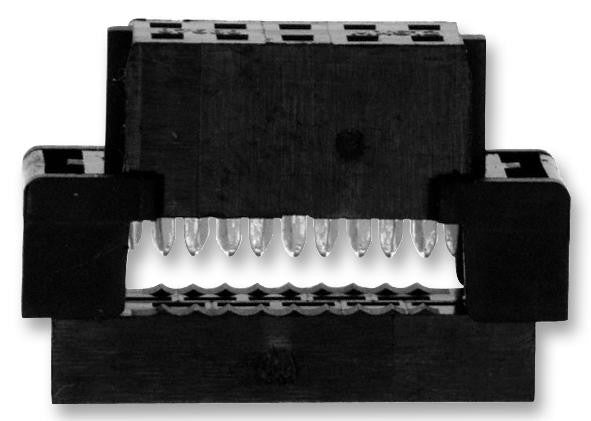

The 87568-1063 is a 10-circuit 2-row 2mm pitch Milli-Grid� Cable-to-board Receptacle, without center polarization key and locking friction ramp, with gold-plated copper alloy contacts and IDT termination. This 87568 series receptacle is made of polyester, mates with 87831 vertical PCB header, 87832 surface mount PCB header, 87833 right angle PCB header. The high-density Milli-Grid� connector system based on a 2 by 2mm grid pattern that offers complete design flexibility for wire-to-board, board-to-board and cable-to-board applications.
- Early entry system crimp terminals - Provides longer pin wipe for a more reliable contact
- Center polarization key - Prevents mismating
- Locking ramps - Provides strong retention force to header
- Black colour
- UL94V-0 Flammability rating
- 1A Current rating per contact
- 125V Voltage rating
- -20 to 85°C Temperature rating
Applications
Automotive, Audio, Consumer Electronics, Communications & Networking
Product details
| No. of Contacts | 10Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Receptacle |
| Product Range | Milli-Grid 87568 Series |
| Contact Material | Copper Alloy |
| Contact Termination Type | IDC / IDT |
| Pitch Spacing | 2mm |
| No. of Rows | 2Rows |
Other details
| Brand | MOLEX |
| Part Number | 87568-1063 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
