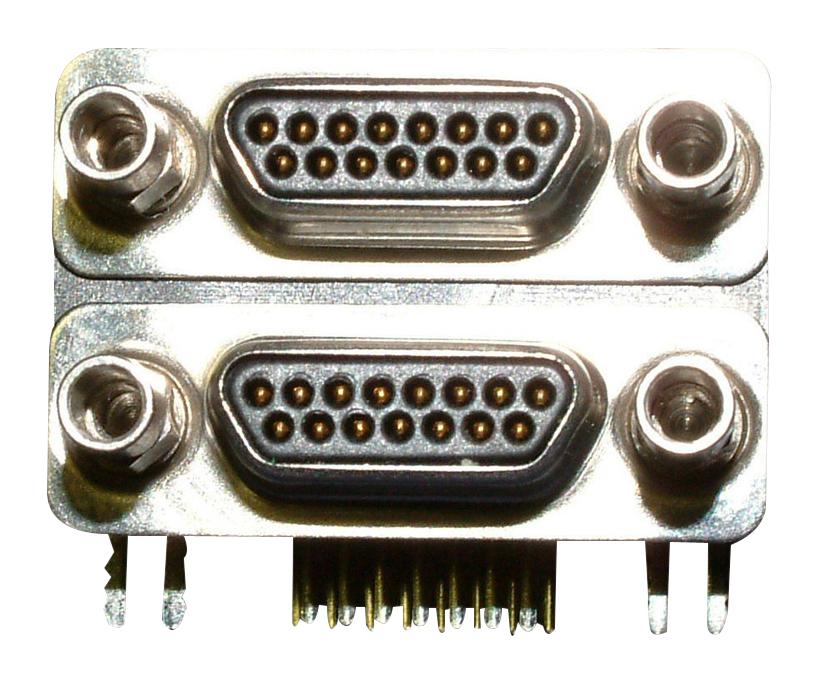

83619-9003 is a 83619 series shielded, 1.27mm pitch commercial Micro-D, dual stack, PCB mount, right-angle plug.
- 350V AC maximum voltage
- 1A maximum current per contact
- 18 circuits (loaded) and 18 circuits (maximum)
- Durability of 500 mating cycles max
- Lock to mating part
- Right angle orientation and through hole interface style
- Gold plating mating
- Panel mount, PCB locator and PCB retention
- Polarized to mating part and polarized to PCB
- Operating temperature range from -40 to +125°C
Product details
| D Sub Connector Type:
Micro D
|
| Gender:
Plug
(View Associated Connectors)
|
| Product Range:
83619 Series
|
| No. of Contacts:
18Contacts
|
| D Sub Shell Size:
-
|
| Contact Termination Type:
Through Hole
|
| Connector Mounting:
PCB Mount
|
| Contact Material:
Copper Alloy
|
| Contact Plating:
Gold Plated Contacts
|
| Connector Body Material:
-
|
Other details
| Brand |
MOLEX |
| Part Number |
83619-9003 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
